Intel i945G2-IQNAR User Manual page 64

I945G2-IQNAR

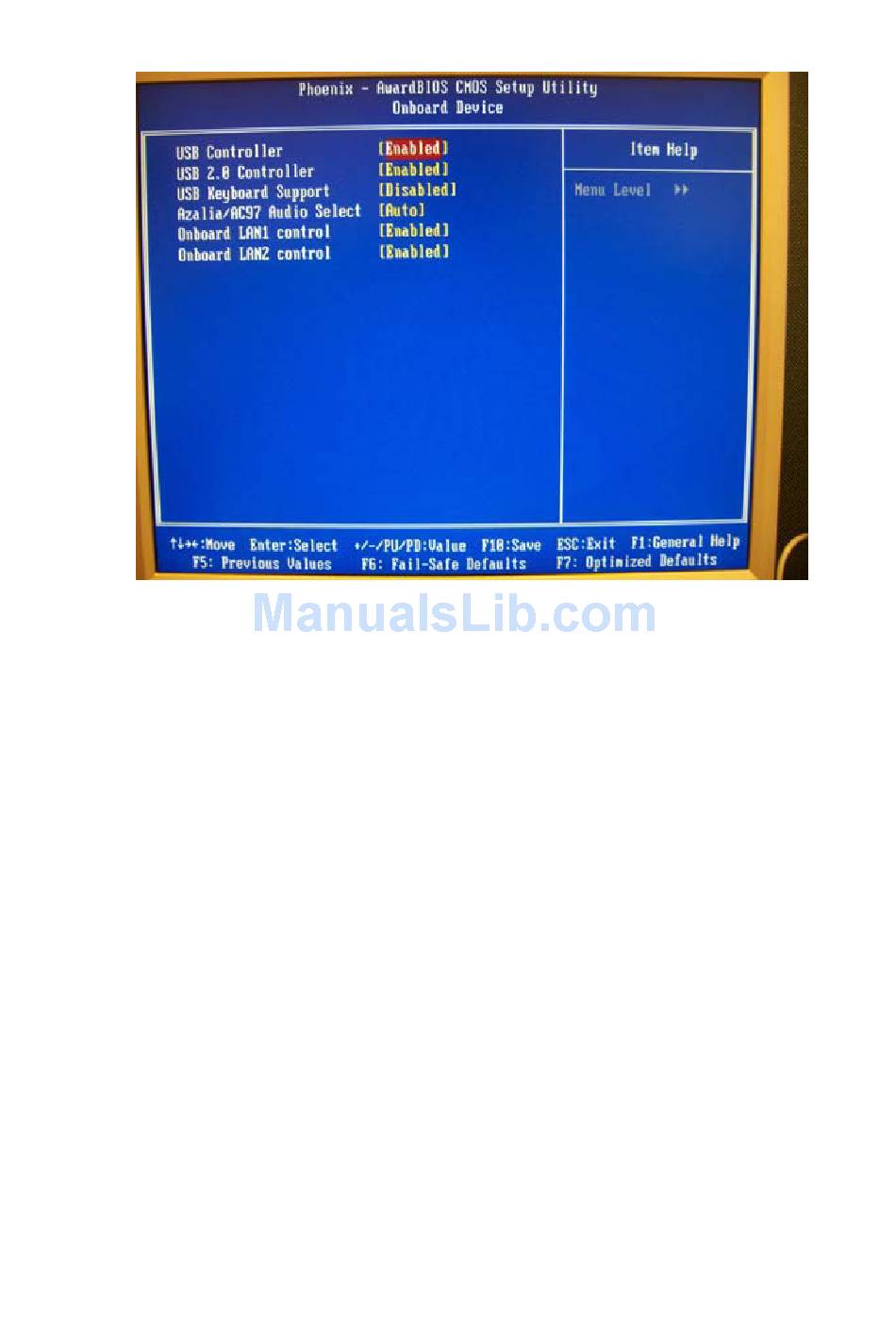

Figure 2.17: Onboard Device
2.6.8 USB Controller
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you
have USB peripherals. The choices are "Enabled" and "Disabled".
2.6.9 USB 2.0 Controller
This entry is to disable/enable the USB 2.0 controller only. The BIOS itself may/may not
have high-speed USB support. If the BIOS has high speed USB support built in, the support
will automatically turn on when a high speed device is attached. The choices are "Enabled"
or "Disabled".
2.6.10 USB Keyboard Support
Select Enabled if you plan to use an USB keyboard. The choices are "Enabled" and
"Disabled".
2.6.11 Azalia/AC97 Audio Select
Select "Disable" if you do not want to use Azalia/AC-97 audio. Options are "Auto", and
"Disabled".
2.6.12 Onboard LAN1 Control
Options are "Enabled" and "Disabled". Select "Disabled" if you don't want to use onboard
LAN controller1.
2.6.13 Onboard LAN2 Control
Options are "Enabled" and "Disabled". Select Disabled if you don't want to use the onboard
LAN controller2.
64 i945G2-IQNAR User's Manual
