I945G2-IQNAR

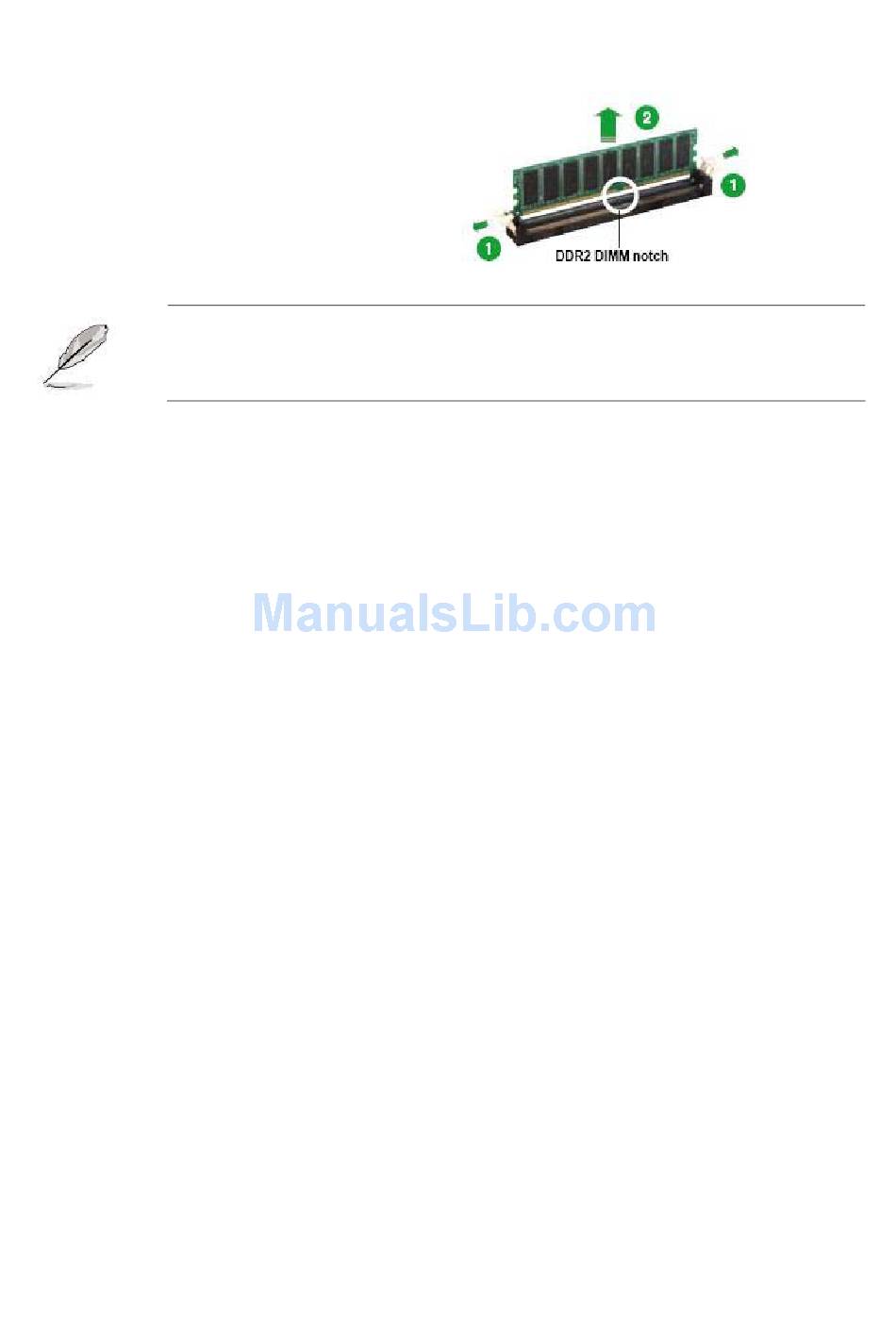

1.7.5 Removing a DIMM

1. Simultaneously press the retaining clips

outward to unlock the DIMM.

Support the DIMM lightly with your fingers when pressing the retaining

clips. The DIMM might get damaged when it flips out with extra force.

2. Remove the DIMM from the socket.

28 i945G2-IQNAR User's Manual
