I945G2-IQNAR
4. Once you select "Enhanced Mode", the "SATA Mode" item will change to selectable
state, and the default value is "IDE".
5. Press <Enter> to enter to "SATA Mode" sub-menu. User arrow keys to change the
default value "IDE" to "RAID". Press <Enter> to enable the SATA RAID function.
58 i945G2-IQNAR User's Manual

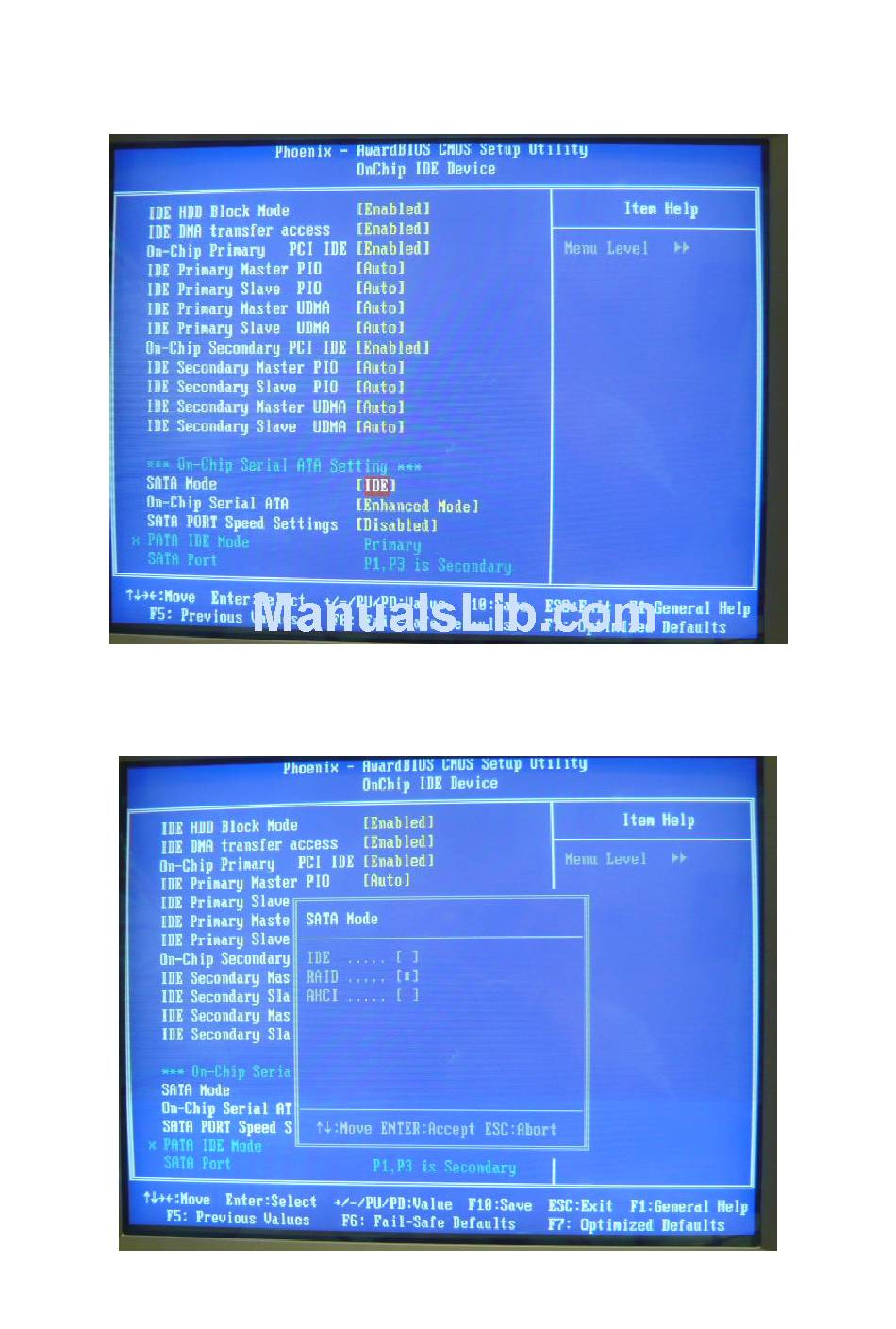

Figure 2.9: SATA Mode
Figure 2.10: SATA Mode Sub-menu
