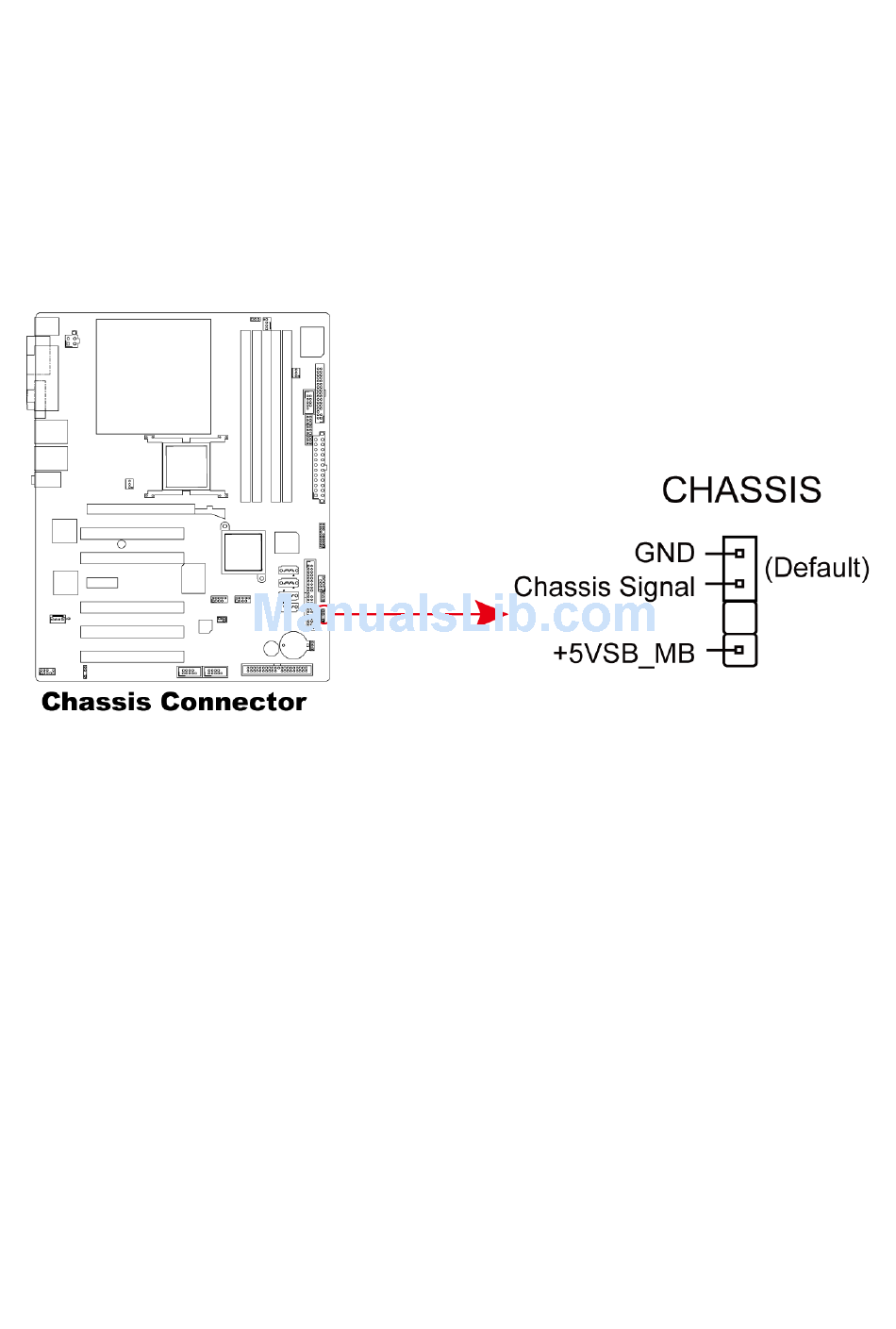

2. Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one
end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion
sensor or switch sends a high-level signal to this connector when a chassis component is
removed or replaced. The signal is then generated as a chassis intrusion event.
By default, the pins labeled "Chassis Signal" and "Ground" are shorted with a jumper cap.
Remove the jumper caps only when you intend to use the chassis intrusion detection
feature.
i945G2-IQNAR User's Manual 35
