2.3 Standard CMOS Setup

2.3.1 Date
The date format is <week>, <month>, <day>, <year>.
2.3.2 Time
The time format is <hour> <minute> <second>, based on the 24-hour clock.
2.3.3 IDE channel 0/1 Master/Slave
IDE HDD Auto-Detection: Press "Enter" to select this option for automatic device
detection.
IDE Device Setup:
Auto: Automatically detects IDE devices during POST
None: Select this when no IDE device is used. The system will skip the autodetection
step to make system start up faster.
Manual: User can manually input the correct settings.
Access Mode: The options are CHS/LBA/Large/Auto
Capacity: Capacity of currently installed hard disk.
Cylinder: Number of cylinders
Head: Number of heads
Precomp: Write precomp
Landing Zone: Landing zone
Sector: Number of sectors
48 i945G2-IQNAR User's Manual

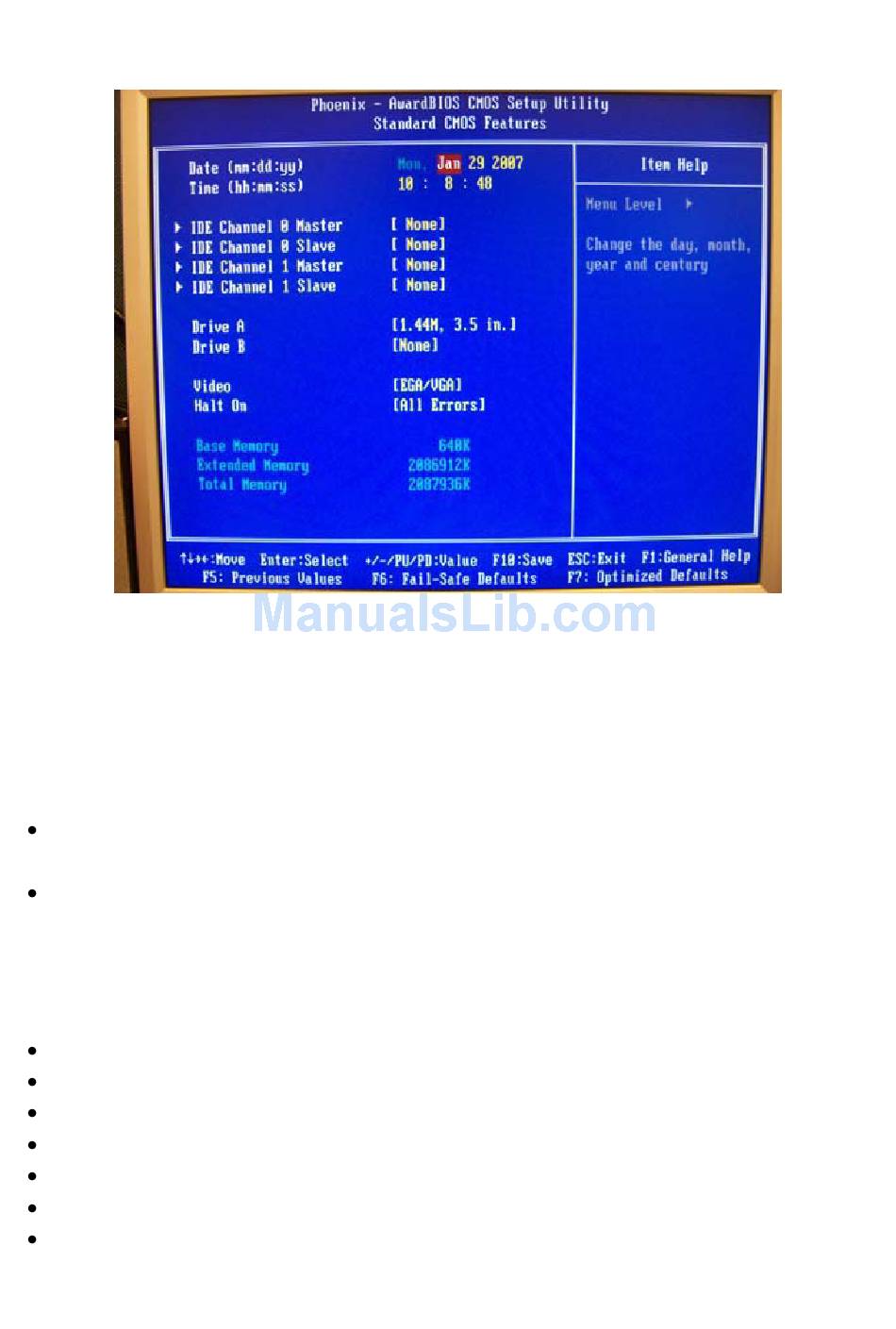

Figure 2.2: Standard CMOS Features Screen
