1.14 Placing and testing the Charging Station

•

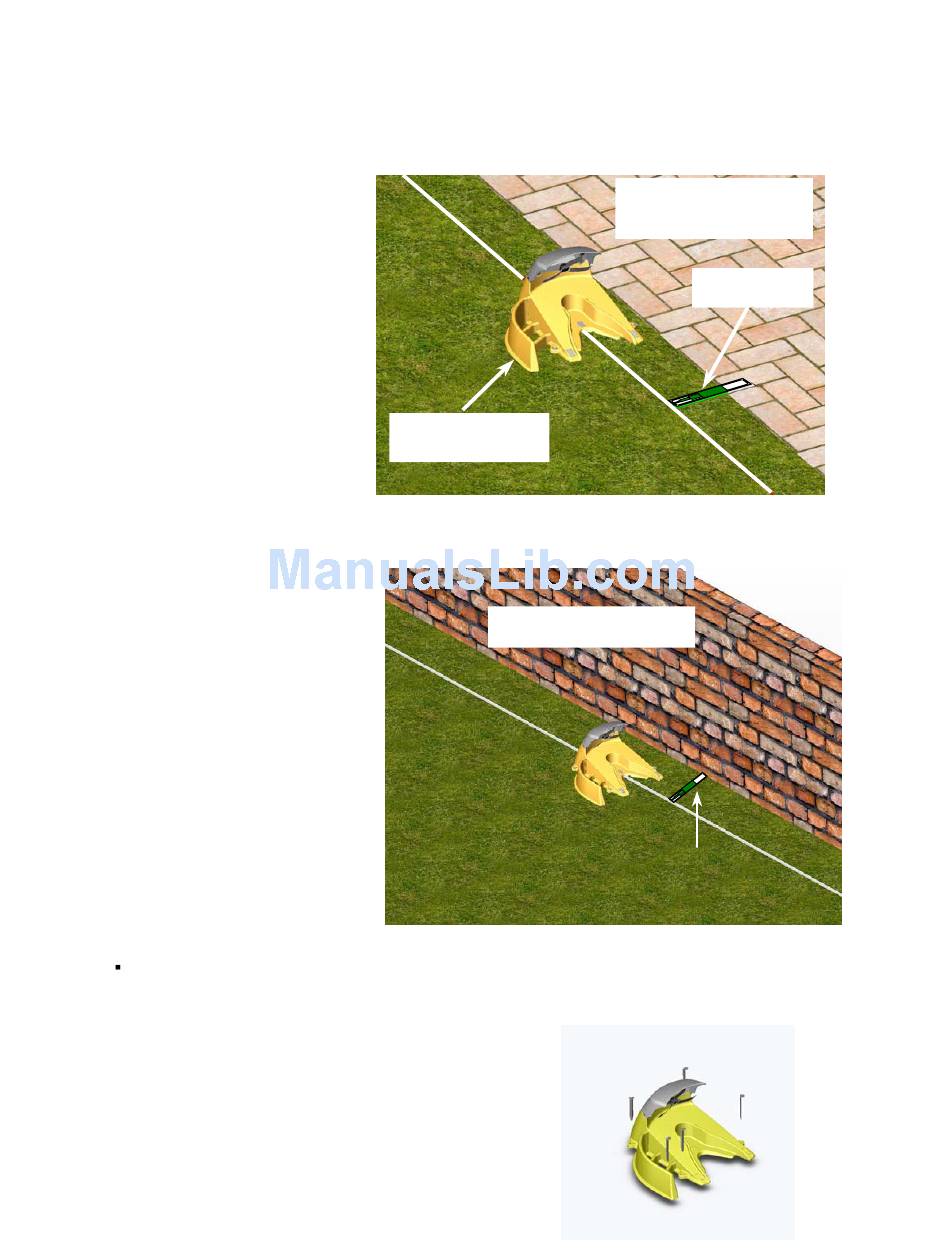

Use the RoboRuler to place the Charging Station on the perimeter. The shorter distance (12
inches / 30 cm) is used where the area outside the immediate perimeter of the Charging Station is
free of obstacles and is the same relative height as the perimeter edge (See Figure 1.25).
Figure 1.25 – Using Short
Distance of RoboRuler to
Place Charging Station
•
The longer distance (18 inches / 45 cm) is used where the area outside the immediate perimeter of
the Charging Station has a wall or is not the same relative height as the perimeter edge. See
figure 1.26.
Figure 1.26 – Using Long
Distance of RoboRuler to
Place Charging Station
Fasten the Charging Station in place using a hammer to drive the five stakes.
Begin by placing the stakes only part way into the ground, as a small adjustment may be required
when testing for proper Charging. See figure 1.27.
Fence facing inside
of lawn area
Area outside perimeter
has a wall as an obstacle.
Figure 1.27 –

Placement of Stakes

Area outside perimeter:
Same basic level and
free of obstacles.
RoboRuler
Short distance
RoboRuler
Long distance
25
