1.1 Charging Station Zone

Before setting up the perimeter wire and Charging Station, it is best to examine your lawn and determine
the best location for the Charging Station. The Charging Station is a fully automatic solution suitable for
one area or zone, thus it is recommended to set it up in the largest area or zone. Perimeter wire can be as
long as 2000ft (600 meters) in one loop when connected to the Charging Station. To mow other areas,
simply drive the Robomow to the area you want to mow and operate it in the automatic mode as explained
in this Manual. When this area is completed, drive the mower back to the station for re-charging.

Setup in Charging Zone

1.2 Charging Station Placement

There is a maximum distance of 50 feet (15 meters) from the receptacle to the Charging Station, see
figure 1.2. Do not use an extension cord to increase this distance. Should a distance of more than 50
feet (15 m) be required, refer to a locally qualified electrical professional to install a power source in
order to place power within the specified distance.
Position the Charging Station with the fence facing to the inside of the lawn. See figure 1.2.
12
Chapter 1
2. Cover
6. Screw (x2)
3. Fence
6. Screw (x2)
The Fence
The Fence
should be
should be
inside lawn
inside lawn
Figure 1.2 – Distance From Power Receptacle

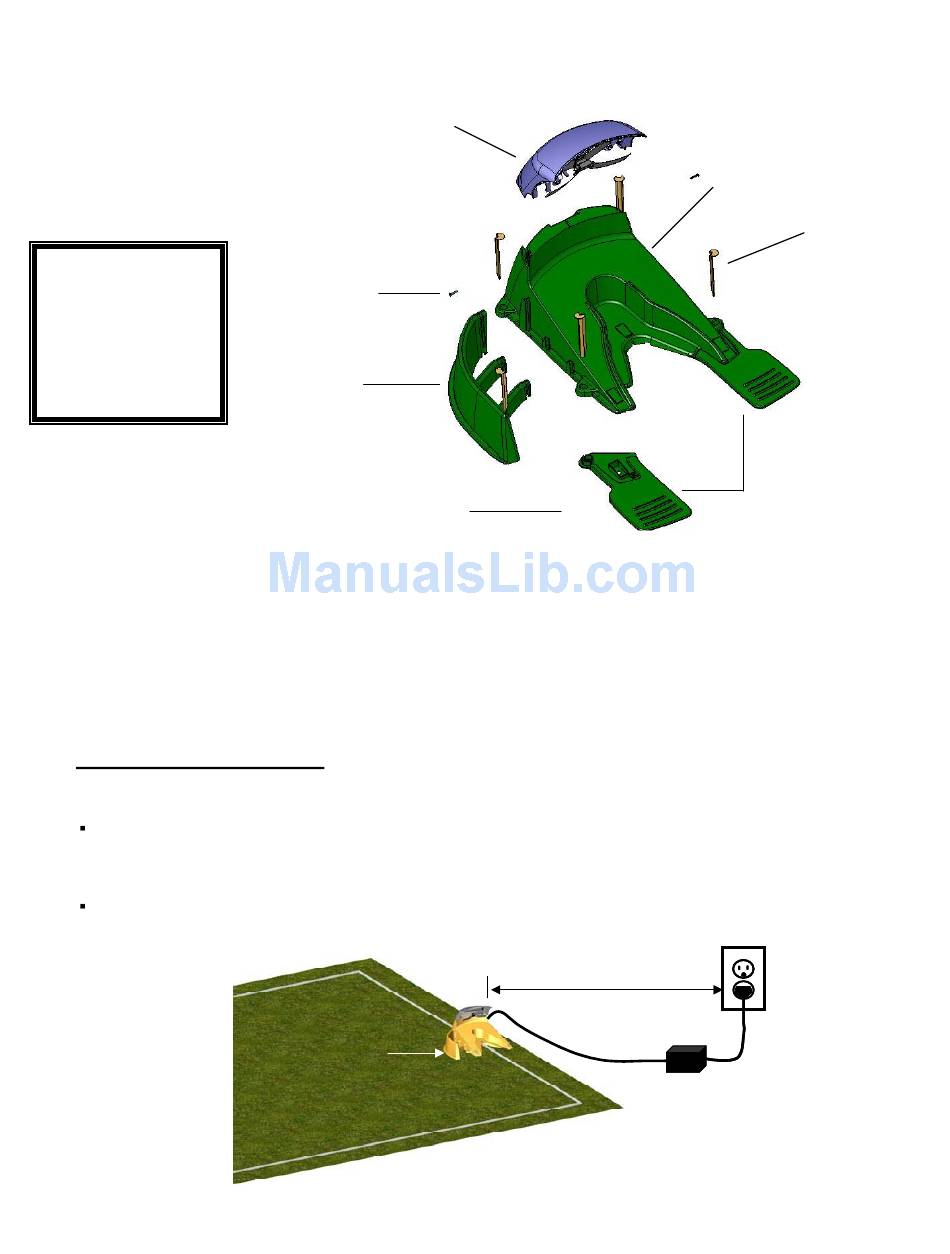

Figure 1.1 Charging Station Assembly
Maximum 50 ft (15m)
Maximum 50 ft (15m)
40 Volts
40 Volts
1. Base
5. Stake (x5)
4. Drive wheel supports
Receptacle
Receptacle
120 V
120 V
230 V
230 V
Power Supply
Power Supply
