Three Separate Zones - Friendly Robotics Robomow RL1000 Operating & Safety Manual

Maximum length of wire
connected to the
Charging Station in one
loop is 2000ft (600m)
While the pictures show
two wires separate, they
should be adjacent

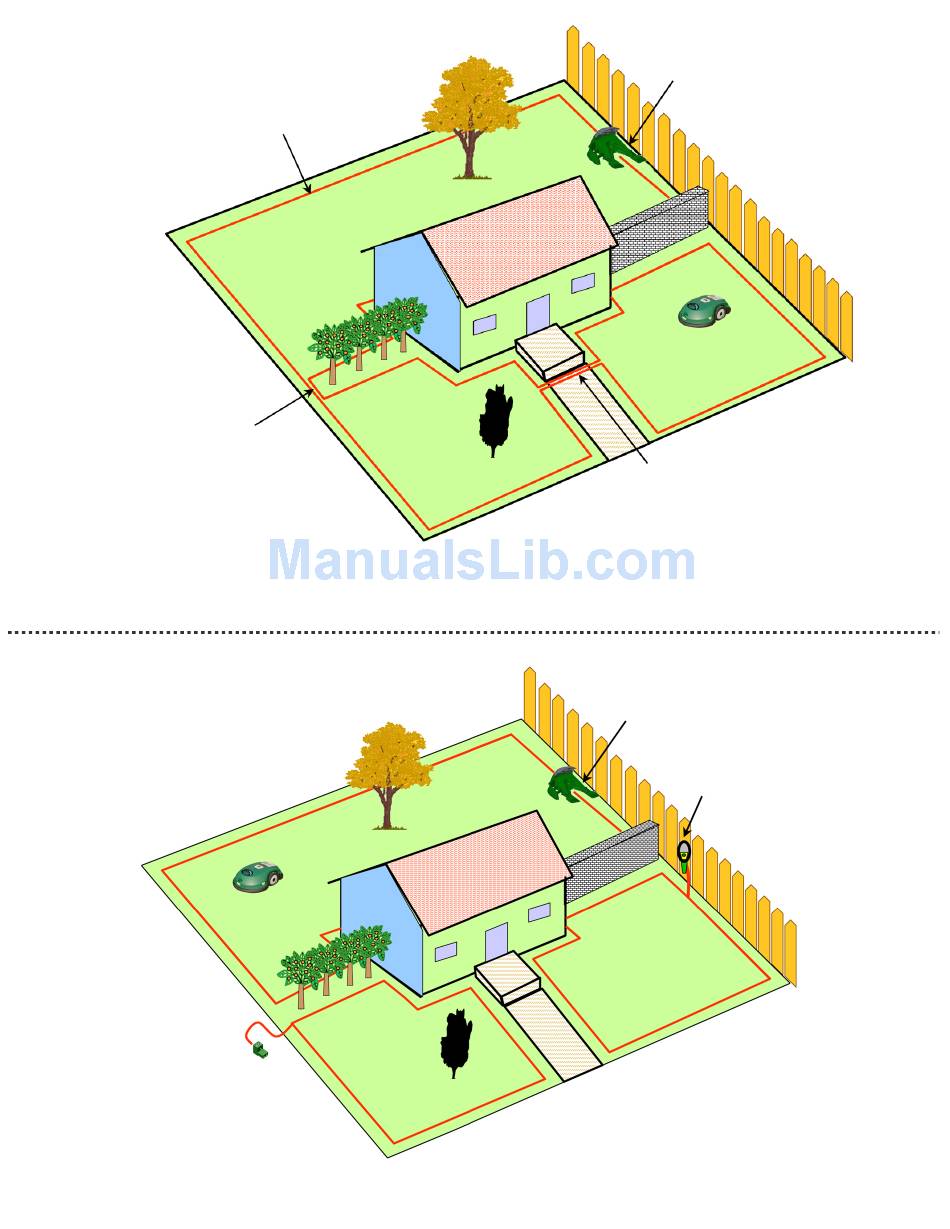

Figure 15b - Three separate zones, all in one loop connected to the Charging Station. Robomow will operate
automatically in the dock zone. In order to mow zones B and C, drive Robomow to the desired zone and press GO.
Plot connector for
Perimeter Switch
connection
Dock Zone
Zone B
Dock Zone
Back yard
Zone B
Charging
Station
Zone C
While the pictures show
two wires separate, they
should be adjacent
Charging
Station
Perimeter
Switch
Zone C
Front yard
Figure 15c – Three separate zones.
The back yard is operated by the
Charging Station and the two front
yards are operated by a perimeter
switch (each separately).
21
