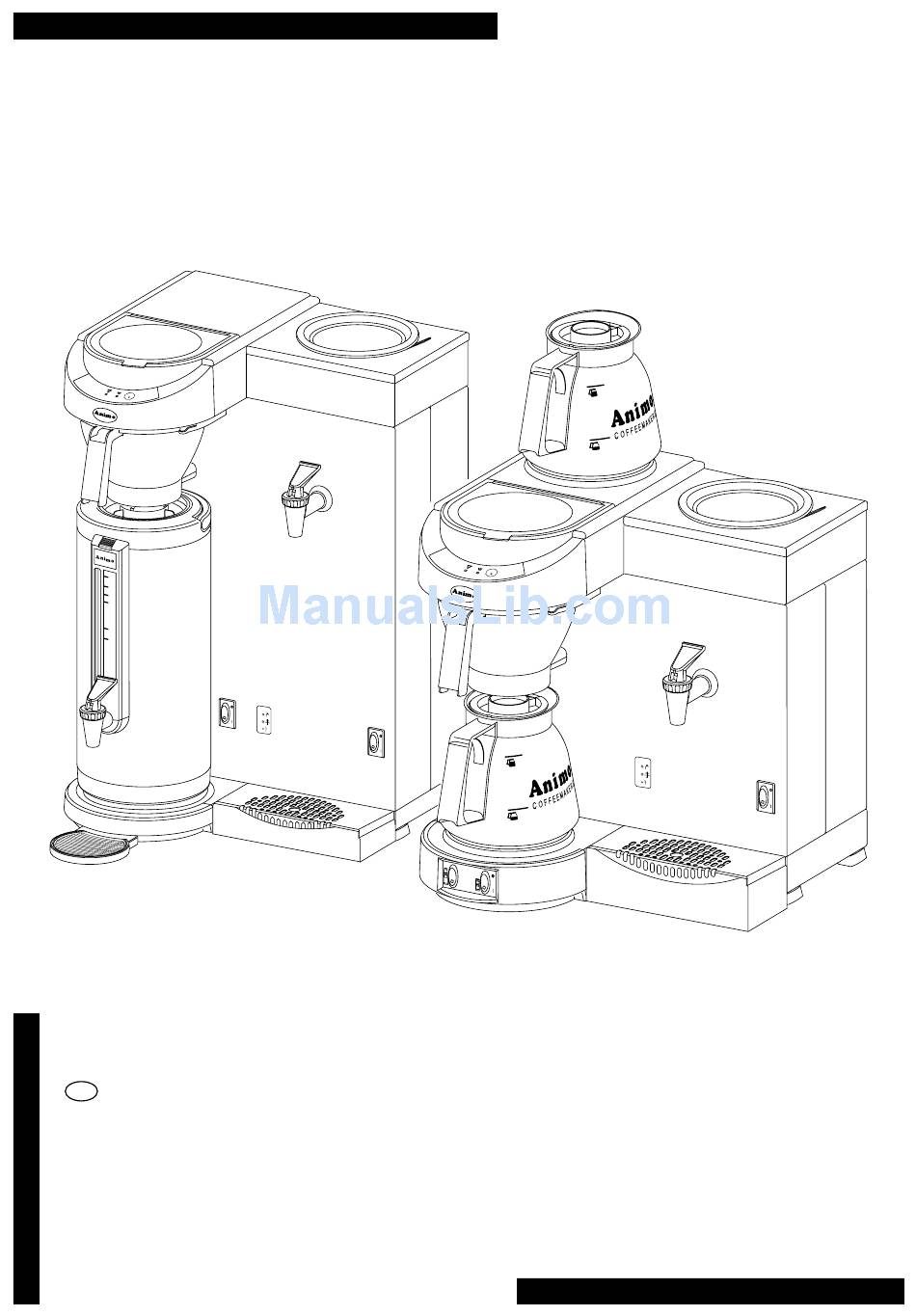

- Page 1 M M 1 1 0 0 0 0 W W , , M M T T 1 1 0 0 0 0 W W 2. 5 2. 4 2. 4 1, 2 BO ILE R BO ILE R Manual Animo...
- Page 2 Animo BOILER 12.1 12.2 12.3 BOI LER in gs .... C of ....z ../ ....
- Page 3 C o f f e e m a k e r s Animo Hot water boiler Animo C o f f e e m a k e r s M100W fig. 1/Abb. 1 Animo Animo Hot water boiler MT100W fig. 2/Abb. 2...
-
Page 4: Table Of Contents
Animo Table of Contents Preface ..........21 Introduction . -
Page 5: Preface
This also applies to the accompanying draw- ings and/or diagrams. Animo reserves the right to change parts at any time without giving prior or direct notification to the customer. The con- tents of this manual can also be changed without prior notification. -
Page 6: Introduction
Animo Animo Hot water boiler Hot water boiler M100W MT100W Purpose of the appliance The sole purpose of this appliance is to make coffee and/or tea. Do not use the water boiler to heat and/or cook liquids other than water. -
Page 7: Safety Instructions And Danger Warnings
Animo Safety instructions and danger warnings This appliance meets the mandatory safety regulations. Inexpert use can result in personal injury and material damage. The following warnings and safety instructions must be observed before using the coffee maker. Instructions for use Read these instructions for use carefully, before using this appliance. -
Page 8: Safeguards
Animo • The plug must be taken out of the socket if the appliance has to be opened for cleaning or repairs. The manufacturer cannot be held liable for losses caused as a result of failure to observe these safety instructions. -
Page 9: Appliances And The Environment
Animo Appliances and the environment The packing material Your new coffee maker has been carefully packaged to protect it against damage. The packing is not harmful to the environment and consists of the following materials: • Corrugated cardboard • Filler elements made of polyurethane foam <PUR> covered with a polythene film (>PE-HD<). -
Page 10: General
Animo 1 1 . . G G e e n n e e r r a a l l A quick look at the appliance The most important parts of the appliance are shown in the fold-out sheet in this manual. -
Page 11: Technical Details
The control light turns off when the water temperature is too low. Temperature adjuster water boiler (12.3); With this adjuster the water boiler temperature can be increased/reduced, using a small screwdriver. See chapter 4.7: Setting water temperature water boiler. Technical details Model M100W MT100W Article number 10505 10525 Buffer stock coffee 3.6 l./ 28 cups... -
Page 12: Installation
The machine has been carefully packed to prevent damage being caused to your new coffee maker. Remove the packing carefully without using sharp objects. Check if the appliance is complete. The appliance is delivered with the following accessories: M100W MT100W Glass jug Thermos container Basket filter Filter paper (25 pcs.) -
Page 13: Electrical Connection
Animo 3.2.2 Electrical connection Supply voltages and frequencies can differ between countries. Check if the appliance is suitable for connection to the local power mains. Check if the details on the type plate correspond. Connect the appliance to an earthed wall socket. -
Page 14: Setting The Descale Indicator
Animo 3.2.5 Setting the descale indicator Scale deposits are left in the heating system when the appliance is used. The amount of scal- ing depends on the hardness of the water being used. The coffeemaker is fitted with a descale indicator light (5.1), which lights up when the heating system has processed a certain quantity... -
Page 15: Daily Use
Animo Daily use NOTICE • The leak stop can only work if the jug detector is pressed in sufficiently by the jug. If you use a coffee jug with a narrow neck the jug detector will not be pressed in sufficiently and the appliance will not start. -
Page 16: Termination Of The Brewing Process
Animo Once the coffee brewing process has been completed the green indicatior light (5.2) will go out and an audible signal will sound three times, indicating that the coffee is ready. The jug can be removed before the filter has been completely emptied. Once the filter has been cleaned you can immediately resume making coffee. -
Page 17: Setting The Water Temperature Of The Water Boiler
The thermos jug, thermos jug with pump and the filter can be rinsed with hot water. The coffee deposit in the coffee jugs and the filter can be cleaned with Animo coffee fur remover. The appliance is supplied with one sachet of coffee fur remover. -
Page 18: Descaling
Before descaling the appliance, carefully read the instructions for use on the scale remover. We advise you to use the tried and tested Animo scale remover. Dissolve one 50 gram sachet of Animo scale remover in 1 litre of warm water (approx. 60-70˚C). -
Page 19: Switching-Off The Descaling Indicator Light
5.2.3 Descaling the water boiler Before descaling the water boiler, carefully read the instructions for using the descaling agent. We advise you to use the tested Animo descaling agent. Switch the water boiler off when the temperature ok indicator light (12.2) is on. -
Page 20: Troubleshooting
Animo Troubleshooting WARNING • Have all repairs to the electrical system performed by a qualified service technician. If your appliance is not functioning correctly, use the troubleshooting guide below to see whether you can resolve the problem yourself. If not, please contact your dealer. - Page 21 Animo Troubleshooting guide coffee making section Symptom: Possible cause: Action: Water is coming out from The overflow is operating. The Make coffee, so that the under the appliance. water reservoir had already been reservoir empties. filled or has been overfilled.
-
Page 22: Consumer Articles And Accessories
Filter with leak stop 99232 Permanent filter 90/250 01060 Coffee measuring cup 08090 Water measuring cup 2 ltr. 08341 Glass jug 1.8 ltr 08208 Thermos container 2.4 ltr. 50241 Drip tray thermos container 07942 Drip tray M100W 12699 Drip tray MT100W 12698... - Page 23 Animo Animo B.V. Headoffice Dr. A.F. Philipsweg 47 P.O. Box 71 9400 AB Assen The Netherlands Tel. no. +31 (0)592 376376 Fax no. +31 (0)592 341751 E-mail: info@animo.nl Internet: http://www.animo.nl A A c c c c r r e e d d i i t t e e d d b b y y...
