Sentry US EIR42-87036 User Manual

Eco series 3.6mm/6.0mm lens 700tvl 42 ir weatherproof bullet camera
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

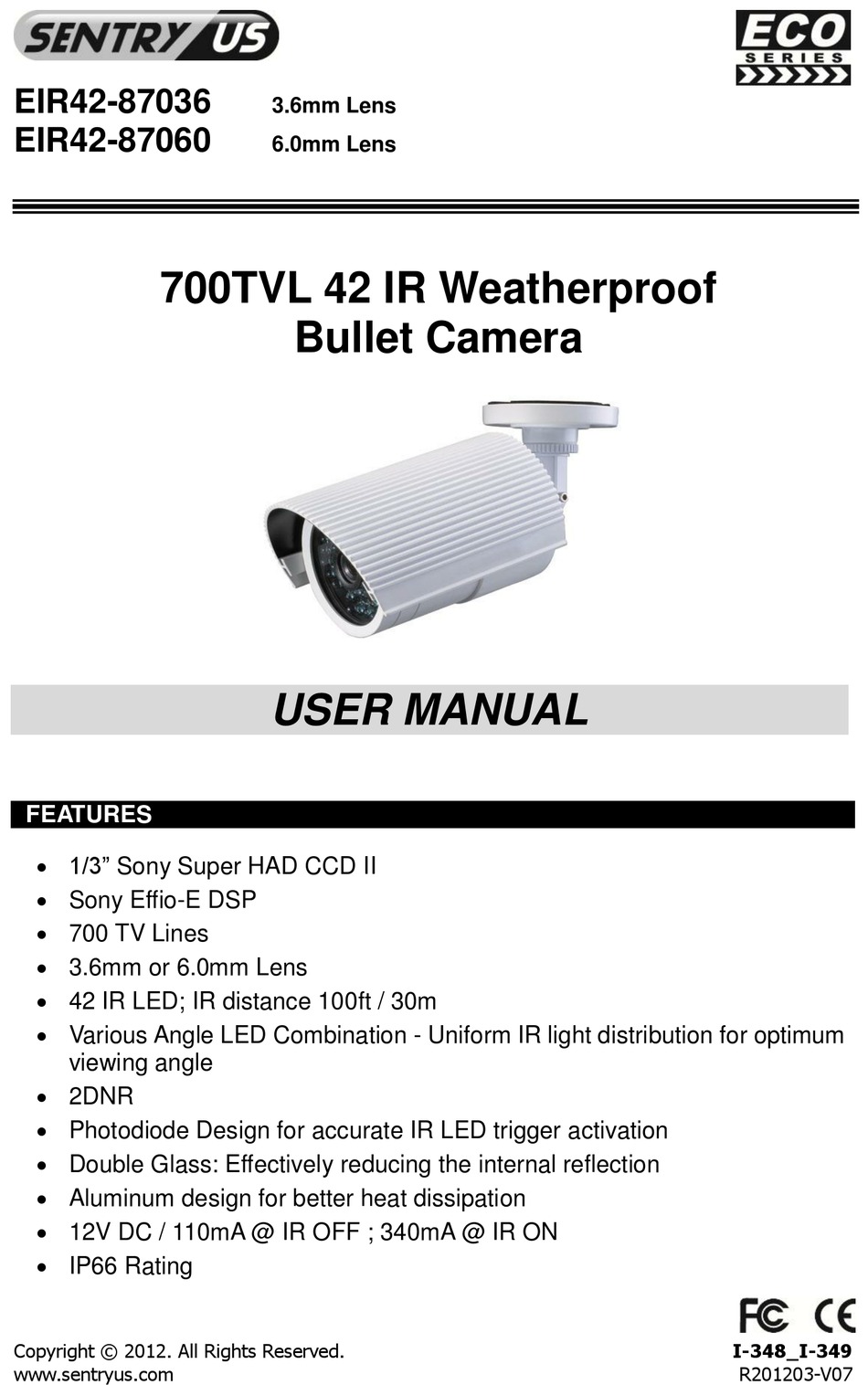

EIR42-87036
EIR42-87060
700TVL 42 IR Weatherproof

FEATURES

 1/3" Sony Super HAD CCD II
 Sony Effio-E DSP
 700 TV Lines
 3.6mm or 6.0mm Lens
 42 IR LED; IR distance 100ft / 30m
 Various Angle LED Combination - Uniform IR light distribution for optimum
viewing angle
 2DNR
 Photodiode Design for accurate IR LED trigger activation
 Double Glass: Effectively reducing the internal reflection
 Aluminum design for better heat dissipation
 12V DC / 110mA @ IR OFF ; 340mA @ IR ON
 IP66 Rating
Copyright © 2012. All Rights Reserved.
www.sentryus.com
3.6mm Lens
6.0mm Lens

Bullet Camera

USER MANUAL

I-348_I-349
R201203-V07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EIR42-87036 and is the answer not in the manual?

Questions and answers

Related Manuals for Sentry US EIR42-87036

Summary of Contents for Sentry US EIR42-87036

  • Page 1: Bullet Camera

    EIR42-87036 3.6mm Lens EIR42-87060 6.0mm Lens 700TVL 42 IR Weatherproof Bullet Camera USER MANUAL FEATURES  1/3” Sony Super HAD CCD II  Sony Effio-E DSP  700 TV Lines  3.6mm or 6.0mm Lens  42 IR LED; IR distance 100ft / 30m ...
  • Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
  • Page 3 7. Servicing Do not attempt to service this video product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel. 8. Damage requiring service Unplug this video product from the wall outlet and refer service to qualified servicing personnel under the following conditions: a.
  • Page 4 DIMENSIONS Unit: mm SPECIFICATION Model (NTSC) EIR42-87036 EIR42-87060 Model (PAL) EIR42-87036P EIR42-87060P 1/3” Sony Super HAD CCD II Sensor Sony Effio-E Total Pixels NTSC: 1028(H) x 508(V) / PAL: 1028(H) x 596(V) Effective Pixels NTSC: 976(H) x 494(V) / PAL: 976(H) x 582(V)

This manual is also suitable for:

Eir42-87060700tvlEco eir42-87036pEco eir42-87060p
