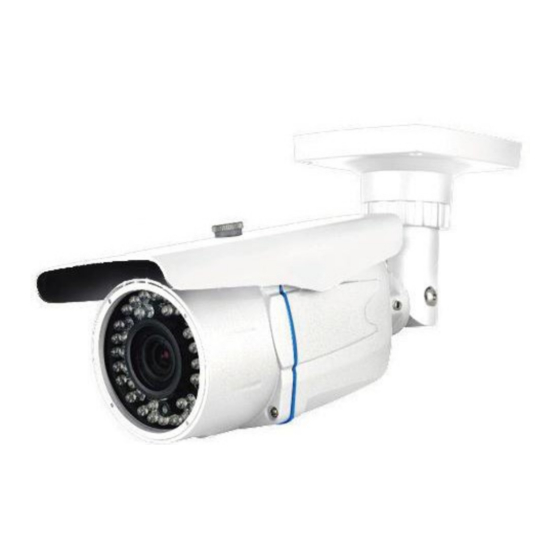

700tvl 35 ir weatherproof bullet camera

Hide thumbs Also See for ECO Series:

EIR35-870VF2

700TVL 35 IR Weatherproof

FEATURES

1/3" Sony Super HAD CCD II

Sony Effio-E DSP

700 TV Lines

2.8mm~12mm Varifocal Lens

35 IR LED; IR distance 80ft / 25m

Various Angle LED Combination - Uniform IR light distribution for optimum

viewing angle

2DNR

Photodiode Design for accurate IR LED trigger activation

Double Glass: Effectively reducing the internal reflection

Aluminum alloy housing design for better heat dissipation

12V DC / 110mA @ IR OFF ; 340mA @ IR ON

IP66 Rating

www.sentryus.com

Bullet Camera

USER MANUAL

I-3 72

R201302-V26

Table of Contents

Do you have a question about the ECO Series and is the answer not in the manual?

Page 1 EIR35-870VF2 700TVL 35 IR Weatherproof Bullet Camera USER MANUAL FEATURES 1/3” Sony Super HAD CCD II Sony Effio-E DSP 700 TV Lines 2.8mm~12mm Varifocal Lens 35 IR LED; IR distance 80ft / 25m Various Angle LED Combination - Uniform IR light distribution for optimum viewing angle 2DNR Photodiode Design for accurate IR LED trigger activation...
Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
Page 3 7. Servicing Do not attempt to service this video product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel. 8. Damage requiring service Unplug this video product from the wall outlet and refer service to qualified servicing personnel under the following conditions: a.
Page 4 DIMENSIONS Unit: mm Zoom: Far / Near Focus Adjustor Knob Adjustor Knob SPECIFICATION Model (NTSC) EIR35-870VF2 Model (PAL) EIR35-870VF2P Sensor 1/3” Sony Super HAD CCD II Sony Effio-E Total Pixels NTSC: 1028(H) x 508(V) / PAL: 1028(H) x 596(V) Effective Pixels NTSC: 976(H) x 494(V) / PAL: 976(H) x 582(V) Resolution 700 TV lines...
