EIR42X-450VF
EIR42X-460VF
EIR42X-470VF

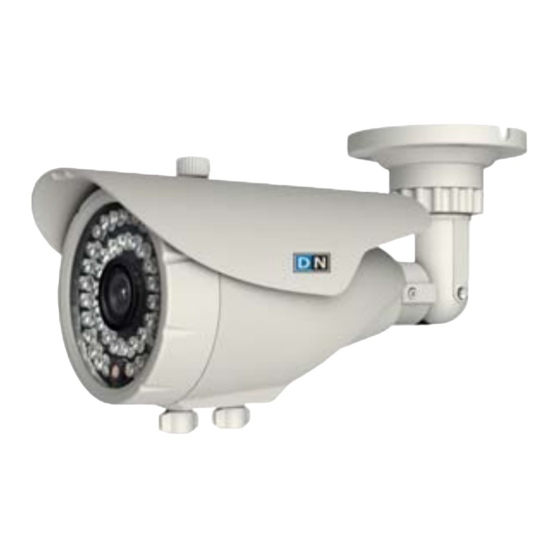

42 IR Day & Night Effio-E Weatherproof
FEATURES
• 1/3" Sony Ex-View HAD II CCD
• Sony Effio-E DSP
• 500 / 600 / 700 TV Lines
• 42 IR LED
• IR Distance up to 95ft / 30m
• 2.8~12.0mm Varifocal Lens
• On-Screen Display (OSD)
• IP65 Rating
• 3-AXIS Cable Management Bracket
• 420mA @ IR "on" / 120mA @ IR "off"
• 12V DC
This IR camera uses a high sensitive 1/3" Interline transfer Charge Coupled Device (CCD)
image sensor and an all-state circuitry, which provides extremely long life and high
reliability. This camera offers excellent image quality and is not subject to distortions from
magnetic fields. This camera is an excellent choice for your CCTV system. It captures
high-speed moving objects, the sensor changes the day/night mode automatically to
show qualified color pictures during daytime and clear pictures at nighttime.
Copyright © 2011. All Rights Reserved.
www.sentryus.com
500 TV Lines
600 TV Lines
700 TV Lines
Operational Manual
Bullet Color Camera
1
I-339 / I-340 / I-341
R201111-V04
Advertisement
Table of Contents
Related Manuals for Sentry US EIR42X-450VF
Summary of Contents for Sentry US EIR42X-450VF
- Page 1 EIR42X-450VF 500 TV Lines EIR42X-460VF 600 TV Lines EIR42X-470VF 700 TV Lines Operational Manual 42 IR Day & Night Effio-E Weatherproof Bullet Color Camera FEATURES • 1/3” Sony Ex-View HAD II CCD • Sony Effio-E DSP • 500 / 600 / 700 TV Lines •...
- Page 2 Please read the Manual before attempting to use this product. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Limited Warranty
4. Clean the front face or lens It is recommended that the surface be cleaned every 3~6 months. Cleaning should be done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator and ethanol to carefully remove any fingerprint or dust. 5. -
Page 4: Package Contents
PACKAGE CONTENTS One (1) IR Bullet Camera with power/video cable and sunshield One (1) Allen Wrench Three (3) Screws Three (3) Wall Anchors One (1) Mounting Guide Sticker One (1) Operational Manual * For any returns, please include all components listed above with original packaging in Resalable Condition. -
Page 5: Osd Operations
OSD OPERATIONS Attention: Use the following 4 arrow buttons to navigate the menu: ← → ↑ ↓ Selection will have a gray background. Use the “ENTER” button to confirm selection. Note: Options with “←” means it has a submenu. The OSD main menu has two pages. The user can switch between the two pages by “NEXT←”... - Page 6 The second page of the main menu is shown below: SETUP MENU PRIVACY AUTO ← DAY / NIGHT ← CAMERA ID SYNC LANGUAGE ENGLISH CAMERA RESET BACK ← EXIT ← SAVE 1. LENS LENS MANUAL “LENS” has 2 options -–“MANUAL” and “AUTO”. (This camera cannot install the auto-iris lens temporarily) MANUAL - The default setting is manual.
-
Page 7: Shutter / Agc
[TYPE]: The drive mode of auto lens (or the lens type). It has 2 options-- DC and VIDEO. DC means direct current control of iris lenses, while VIDEO means video control of iris lenses. [MODE]: 3 options for adjusting iris--AUTO, OPEN and CLOSE. AUTO means it can automatically adjust the size of the iris according to the light. -
Page 8: White Balance
[SHUTTER]: The setting value range of SHUTTER is 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000. [AGC]: The setting value range of AGC is 6.00, 12.00, 18.00, 24.00, 30.00, 36.00, 42.00, 44.8. 3. WHITE BALANCE ATW ← WHITE BAL There are 7 types of white balance mode. ATW - ATW means automatic tracking white balance. - Page 9 USER2 - User-defined white balance mode 2. The settings are like above. ANTI CR - Used in the environment where there is a serious chromatic difference. MANUAL - Adjust the white balance mode manually. In specific lighting environment, it can achieve the best white balance results. The setting value range of Level is 0~255.
-
Page 10: Pict Adjust
PICT ADJUST MIRROR BRIGHTNESS CONTRAST SHARPNESS MIRROR - Mirror image the whole picture. The default setting is OFF. BRIGHTNESS - Adjust the entire brightness of the whole picture. The setting value range is 0~255. CONTRAST - The setting value range is 0~255 SHARPNESS - The setting value range is 0~255 HUE - The setting value range is 0~255 GAIN - The setting value range is 0~255... -
Page 11: Motion Detection
LUMINANCE - 3 options—HIGH, MID and LOW CONTRAST - 5 options—HIGH, MIDHIGH, MID, MIDLOW, LOW 7. MOTION DETECTION ON ← MOTION DET When a moving object appears in the set detection area, the camera will alarm. We can enter the setting menu if the function is on. MOTION DET DETECT SENSE BLOCK DISP... -
Page 12: Day/Night Mode
8. PRIVACY AREA SHIELD PRIVACY The user can set privacy area on the image randomly. If the function on, the user can enter the setting menu. The setting page is show as below: PRIVACY AREA SEL BOTTOM LEFT RIGHT COLOR TRANSP 1 00 AREA SEL - There are 8 zones that can be set. - Page 13 AUTO - If the setting is set to “Auto”, the camera will switch the mode automatically. In the daytime, the camera is in color to get perfect color; whereas, the camera is in B/W at night. DAY/NIGHT BURST DELAY CNT DAY→NIGHT NIGHT←DAY [BURST]: (It is a Burst switch.)
- Page 14 11. CAMERA ID CAMERA ID The user can set the CAMERA ID by Menu. CAMERA ID CAMERA ABCDEFGHIJKLMNOPQRSTUV WXYZ0123456789-!”#$%&＇ ( ) _ ` ，￥：；<=>？@\^*.×+/ CHR1 CHR2 ← →↑↓CLR POS The Menu has 7 sections: CAMERA - There are 2 lines for inputting ID characters. CHARACTER - It indicates every character’s position.
-
Page 15: Camera Reset
12. SYNCHRONIZATION MODE SYNC 13. LANGUAGE LANGUAGE ENGLISH There are 8 languages: Chinese, English, Japanese, German, French, Russian, Portuguese and Spanish. 14. CAMERA RESET CAMERA RESET Used to restore to factory defaults. If parameter settings are disordered, please choose “CAMERA RESET”, and then press “ENTER”. CONNECTION Copyright ©... -
Page 16: Troubleshooting
TROUBLESHOOTING Item Problems Remedies Check the connection of video line or No picture or unstable power line 1. Checking is there something dirt on the lens, then use customized lens paper or cotton buds with alcohol drenched to The image is so blurred clean. -
Page 17: Installation
smell, smoke etc. connection of power supply. Then send the camera to professionals for maintenance. INSTALLATION NOTES: • Avoid pointing the lens directly towards the sun or intense sources of light even when the camera is off. The subject must not be backlit. •... - Page 18 Copyright © 2011. All Rights Reserved. I-339 / I-340 / I-341 www.sentryus.com R201111-V04...
-
Page 19: Specifications
SPECIFICATIONS Model (NTSC) EIR42X-450VF EIR42X-460VF EIR42X-470VF Model (PAL) EIR42X-450VFP EIR42X-460VFP EIR42X-470VFP 1/3” Sony Ex-View CCD II Image Sensor Sony Effio-E 270k 410k 520k Total Pixel Synchronizing Internal System 500 TV Lines 600 TV Lines 700 TV Lines Resolution 0 Lux @ IR “on” / F1.2 Minimum Illumination >...
