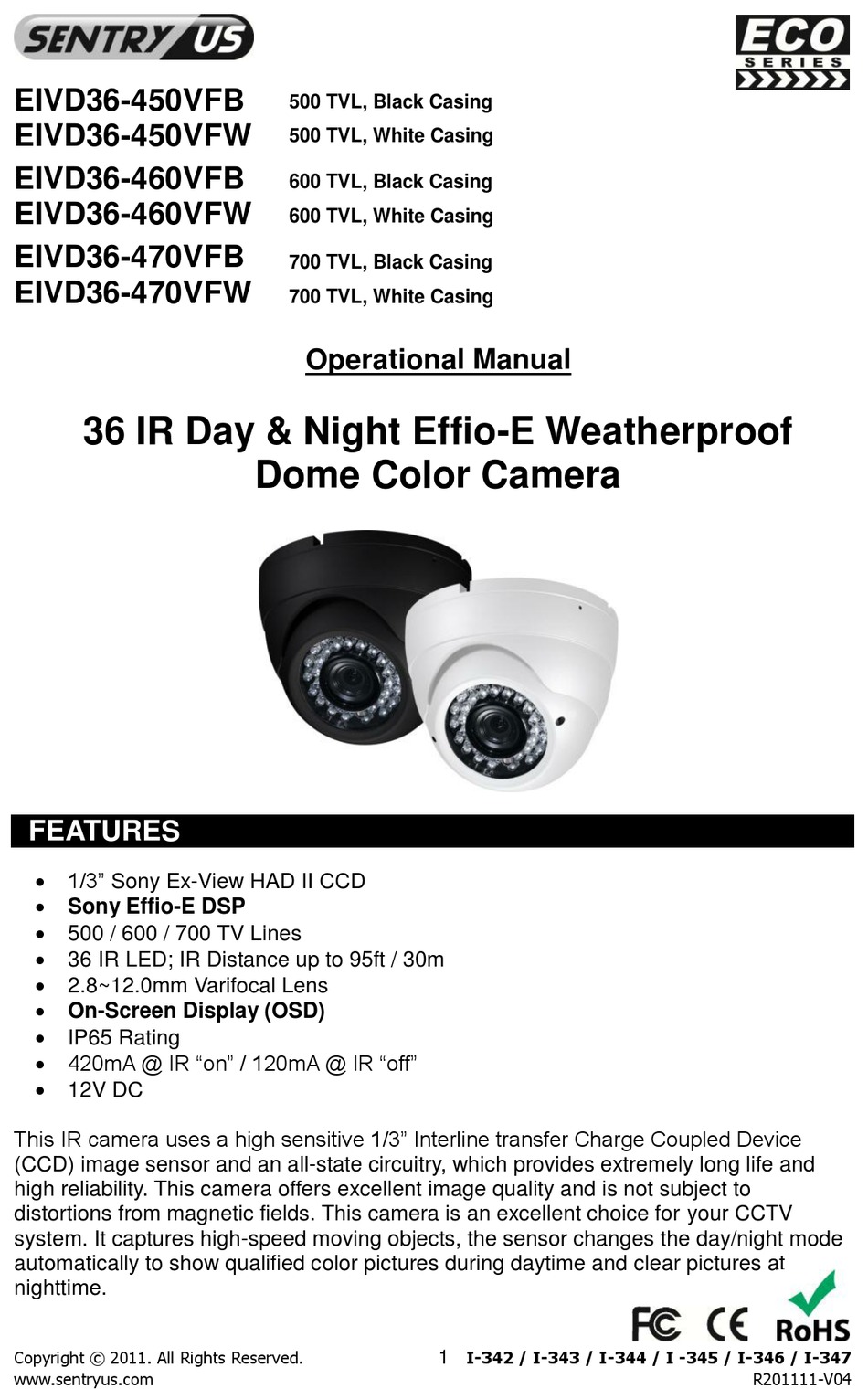

Sentry US EIVD36-450VFB Operational Manual

36 ir day & night effio-e weatherproof dome color camera

Advertisement

Quick Links

EIVD36-450VFB
EIVD36-450VFW
EIVD36-460VFB
EIVD36-460VFW
EIVD36-470VFB
EIVD36-470VFW
36 IR Day & Night Effio-E Weatherproof
FEATURES
 1/3‖ Sony Ex-View HAD II CCD
 Sony Effio-E DSP
 500 / 600 / 700 TV Lines
 36 IR LED; IR Distance up to 95ft / 30m
 2.8~12.0mm Varifocal Lens
 On-Screen Display (OSD)
 IP65 Rating
 420mA @ IR ―on‖ / 120mA @ IR ―off‖
 12V DC
This IR camera uses a high sensitive 1/3‖ Interline transfer Charge Coupled Device
(CCD) image sensor and an all-state circuitry, which provides extremely long life and
high reliability. This camera offers excellent image quality and is not subject to
distortions from magnetic fields. This camera is an excellent choice for your CCTV
system. It captures high-speed moving objects, the sensor changes the day/night mode
automatically to show qualified color pictures during daytime and clear pictures at
nighttime.
Copyright © 2011. All Rights Reserved.
www.sentryus.com
500 TVL, Black Casing
500 TVL, White Casing
600 TVL, Black Casing
600 TVL, White Casing
700 TVL, Black Casing
700 TVL, White Casing
Operational Manual
Dome Color Camera
I-342 / I-343 / I-344 / I -345 / I-346 / I-347
1
R201111-V04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EIVD36-450VFB and is the answer not in the manual?

Questions and answers

Summary of Contents for Sentry US EIVD36-450VFB

  • Page 1 EIVD36-450VFB 500 TVL, Black Casing EIVD36-450VFW 500 TVL, White Casing EIVD36-460VFB 600 TVL, Black Casing EIVD36-460VFW 600 TVL, White Casing EIVD36-470VFB 700 TVL, Black Casing EIVD36-470VFW 700 TVL, White Casing Operational Manual 36 IR Day & Night Effio-E Weatherproof Dome Color Camera FEATURES ...
  • Page 2 Please read the Manual before attempting to use this product. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
  • Page 3: Limited Warranty

    4. Clean the front face or lens It is recommended that the surface be cleaned every 3~6 months. Cleaning should be done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator and ethanol to carefully remove any fingerprint or dust. 5.
  • Page 4: List Of Components

    LIST OF COMPONENTS  One (1) IR Dome Camera with power/video cable  Three (3) Screws  Three (3) Wall Anchors  One (1) Mounting Guide Sticker  One (1) Operational Manual * For any returns, please include all components listed above with original packaging in Resalable Condition.
  • Page 5: Osd Operations

    OSD OPERATIONS Attention: Use the following 4 arrow buttons to navigate the menu: ← → ↑ ↓ Selection will have a gray background. Use the ―ENTER‖ button to confirm selection. Note: Options with ―←‖ means it has a submenu. The OSD main menu has two pages. The user can switch between the two pages by ―NEXT←‖...
  • Page 6 The second page of the main menu is shown below: SETUP MENU PRIVACY AUTO ← DAY / NIGHT ← CAMERA ID SYNC LANGUAGE ENGLISH CAMERA RESET BACK ← EXIT ← SAVE 1. LENS LENS MANUAL ―LENS‖ has 2 options -–―MANUAL‖ and ―AUTO‖. (This camera cannot install the auto-iris lens temporarily) MANUAL - The default setting is manual.
  • Page 7: Shutter / Agc

    [TYPE]: The drive mode of auto lens (or the lens type). It has 2 options-- DC and VIDEO. DC means direct current control of iris lenses, while VIDEO means video control of iris lenses. [MODE]: 3 options for adjusting iris--AUTO, OPEN and CLOSE. AUTO means it can automatically adjust the size of the iris according to the light.
  • Page 8: White Balance

    [SHUTTER]: The setting value range of SHUTTER is 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000. [AGC]: The setting value range of AGC is 6.00, 12.00, 18.00, 24.00, 30.00, 36.00, 42.00, 44.8. 3. WHITE BALANCE ATW ← WHITE BAL There are 7 types of white balance mode. ATW - ATW means automatic tracking white balance.
  • Page 9 USER2 - User-defined white balance mode 2. The settings are like above. ANTI CR - Used in the environment where there is a serious chromatic difference. MANUAL - Adjust the white balance mode manually. In specific lighting environment, it can achieve the best white balance results. The setting value range of Level is 0~255.
  • Page 10: Pict Adjust

    PICT ADJUST MIRROR BRIGHTNESS CONTRAST SHARPNESS GAIN MIRROR - Mirror image the whole picture. The default setting is OFF. BRIGHTNESS - Adjust the entire brightness of the whole picture. The setting value range is 0~255. CONTRAST - The setting value range is 0~255 SHARPNESS - The setting value range is 0~255 HUE - The setting value range is 0~255 GAIN - The setting value range is 0~255...
  • Page 11: Motion Detection

    7. MOTION DETECTION ON ← MOTION DET When a moving object appears in the set detection area, the camera will alarm. We can enter the setting menu if the function is on. MOTION DET DETECT SENSE BLOCK DISP MONITOR AREA AREA SEL BOTTOM LEFT...
  • Page 12: Day/Night Mode

    The user can set privacy area on the image randomly. If the function on, the user can enter the setting menu. The setting page is show as below: PRIVACY AREA SEL BOTTOM LEFT RIGHT COLOR TRANSP 1.00 MOSAIC AREA SEL - There are 8 zones that can be set. Their size can be adjusted by 4 buttons--up, down, left and right.
  • Page 13 DAY/NIGHT BURST DELAY CNT DAY→NIGHT NIGHT←DAY [BURST]: (It is a Burst switch.) [DELAY CNT]: (It’s used to set mode conversion delay time. The setting value range is 0~255.) DAY→NIGHT]: (It’s used for set DAY→NIGHT switching sensitivity. The setting value range is 0~255.) [NIGHT←DAY]: (It’s used for set NIGHT←DAY switching sensitivity .
  • Page 14: Synchronization Mode

    11. CAMERA ID CAMERA ID The user can set the CAMERA ID by Menu. CAMERA ID CAMERA ABCDEFGHIJKLMNOPQRSTUV WXYZ0123456789-!”#$%&’ ( ) _ ` ,¥:;<=>?@\^*.×+/ CHR1 CHR2 ← →↑↓CLR POS The Menu has 7 sections: CAMERA - There are 2 lines for inputting ID characters. CHARACTER - It indicates every character’s position.
  • Page 15: Camera Reset

    13. LANGUAGE LANGUAGE ENGLISH There are 8 languages: Chinese, English, Japanese, German, French, Russian, Portuguese and Spanish. 14. CAMERA RESET CAMERA RESET Used to restore to factory defaults. If parameter settings are disordered, please choose ―CAMERA RESET‖, and then press ―ENTER‖. CONNECTION Copyright ©...
  • Page 16: Troubleshooting

    TROUBLESHOOTING Item Problems Remedies Check the connection of video cable No video or unstable video and power cable. 1. Check if camera lens has been smeared then use professional lens cleaning paper or cotton swab and Fuzzy video alcohol for cleaning. 2.check the focus length and OSD settings Adjust the contrast of the monitor and...
  • Page 17: Specifications

    SPECIFICATIONS EIVD36-450VFB EIVD36-460VFB EIVD36-470VFB Model (NTSC) EIVD36-450VFW EIVD36-460VFW EIVD36-470VFW EIVD36-450VFBP EIVD36-460VFBP EIVD36-470VFBP Model (PAL) EIVD36-450VFWP EIVD36-460VFWP EIVD36-470VFWP 1/3” Sony Ex-View CCD II Image Sensor Sony Effio-E 270k 410k 520k Total Pixel Synchronizing Internal System 500 TV Lines 600 TV Lines...
