EPDX-3600B
EPDX-3600W

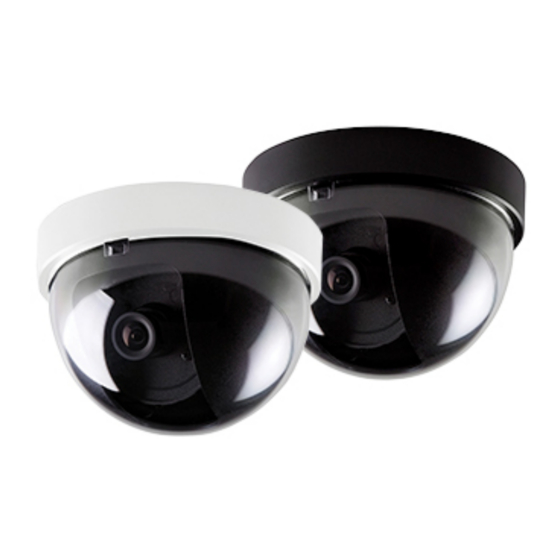

600 TVL 3-AXIS Dome Camera
FEATURES
•
600 TV Lines
•
1/3" Sharp CCD
•
3.6mm Board Lens
•
0.1 Lux @ F1.2
•
75mA
•
12V DC
This camera employs a digital signal processor (DSP) chip-set for image control with an
integrated state circuitry which provides extremely long life and high reliability. This
camera offers excellent image quality with low lag and high burn resistance, and is not
subject to distortions from magnetic fields.
Specifications & contents within this manual are subject to change without notice.
Copyright © 2013. All Rights Reserved.
www.sentryus.com
Black Base
White Base
Operational Manual
1
D-248 / D-247
R201308-V27
Advertisement
Table of Contents
Related Manuals for Sentry US EPDX-3600B
Summary of Contents for Sentry US EPDX-3600B
- Page 1 EPDX-3600B Black Base EPDX-3600W White Base Operational Manual 600 TVL 3-AXIS Dome Camera FEATURES • 600 TV Lines • 1/3” Sharp CCD • 3.6mm Board Lens • 0.1 Lux @ F1.2 • 75mA • 12V DC This camera employs a digital signal processor (DSP) chip-set for image control with an integrated state circuitry which provides extremely long life and high reliability.
- Page 2 Please read the M anual before attem pting to use this product. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
- Page 3 Check the power source voltage The power source voltage should be within the specified range. (Camera must meet the specifications). Camera must be connected to a surge protector at all times. Objects and liquid entry Never push objects of any kind into this camera as this may touch dangerous voltage points of short out parts that could result in a fire or electric shock.
- Page 4 PACKAGE CONTENTS One (1) Dome Camera with power/video cable Four (4) Mounting Screws One (1) Manual For any returns, please include all components listed above with original packaging in Resalable Condition. Absolutely No Returns will be accepted if any component is missing/damaged. DIMENSIONS INSTALLATION &...
- Page 5 Once the installation is complete, replace the dome cover over the camera and tighten it by turning counterclockwise. Connect the video output to the monitor or other video device through a 75 Ohms type coaxial cable and the DC-Jack or DC-Terminator to the power source. NOTE: Power adapter sold separately.
- Page 6 SPECIFICATIONS Model (NTSC) EPDX-3600B EPDX-3600W Model (PAL) EPDX-3600BP EPDX-3600WP Mounting Base Color Black White Image Sensor 1/3” Sharp CCD NTSC: 768(H) x 494(V) Effective Picture Elements PAL: 752(H) x 582(V) Resolution 600 TV Lines Minimum Illumination 0.1 Lux / F1.2...
