Optional Shift Weights - Polaris 2008 sportsman 800efi Service Manual

CLUTCH SYSTEM

Optional Shift Weights

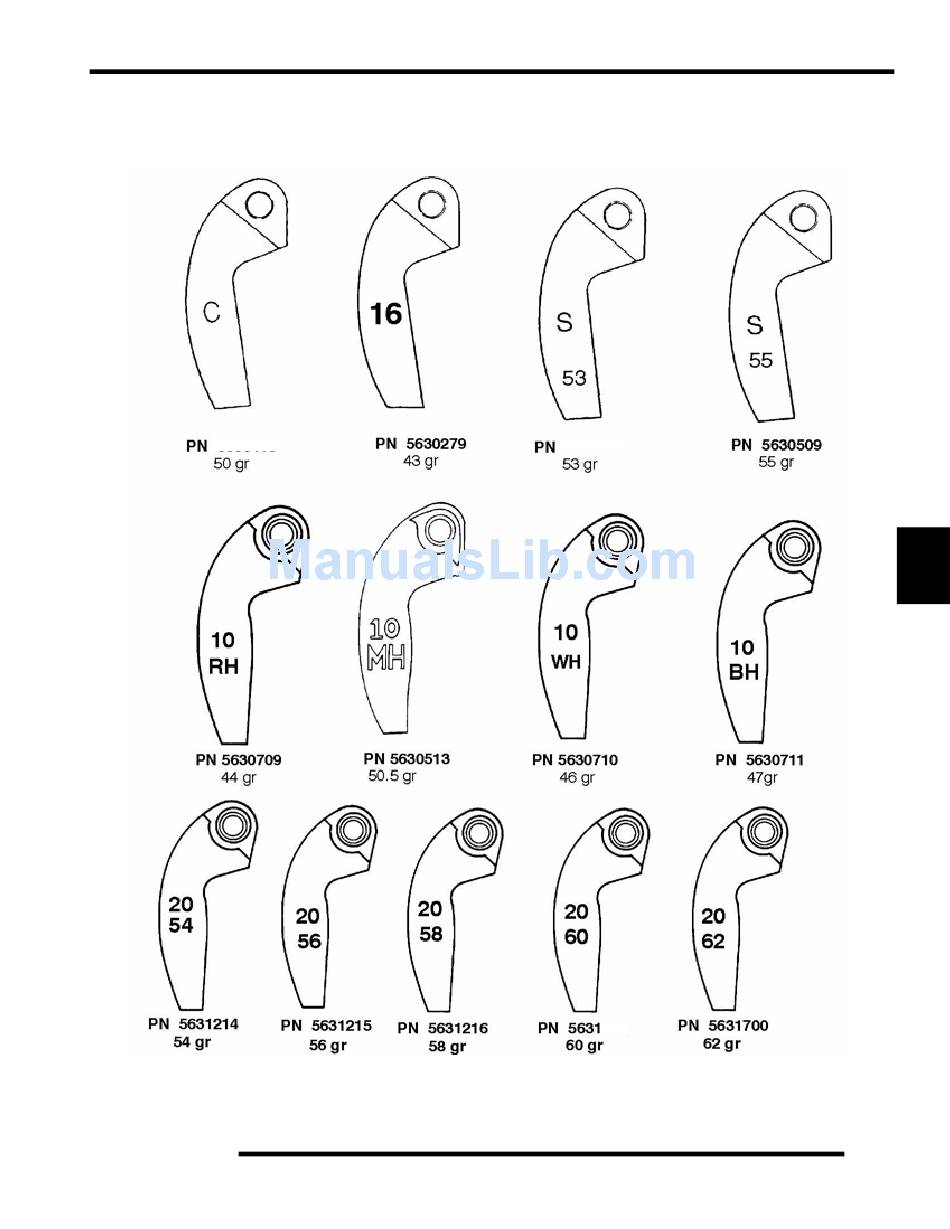

Shown below are optional shift weights which can be used in a PVT system. These shift weights have many different factors designed
into them for controlling engagement RPM and shifting patterns. Shift weights should not be changed or altered without first having
a thorough understanding the effects they have on belt to sheave clearance, clutch balance, engagement and shifting characteristics.
- NLA - - NLA -
6
698
6.9
