Back Cane Lever Release Procedure
Rearward Tilt
1. Engage wheel locks.
2. To activate the tilt on the
optional back cane mounted lever , grip
the push handles with both hands while
also gripping the release lever. Squeeze
the lever and hold while rotating the push
handles downward.
3. When the angle of tilt is in the desired
position, release the lever.
The tilt will lock into place.
Forward Tilt (toward fl at seating position)
1. Engage wheel locks.
NXT
2. To bring the
toward the upright position (out of tilt),
grip the push handles with both hands,
while gripping the release lever. Squeeze
the lever and hold down while rotating
the back canes upward.
3. Release the pressure on the lever when
the forward tilt position has been achieved.
Leverage Bar Instructions
One of the anti-tip assemblies may be used as a le-
verage bar to assist in tipping the wheelchair in order
to roll over kerbs and other obstacles.

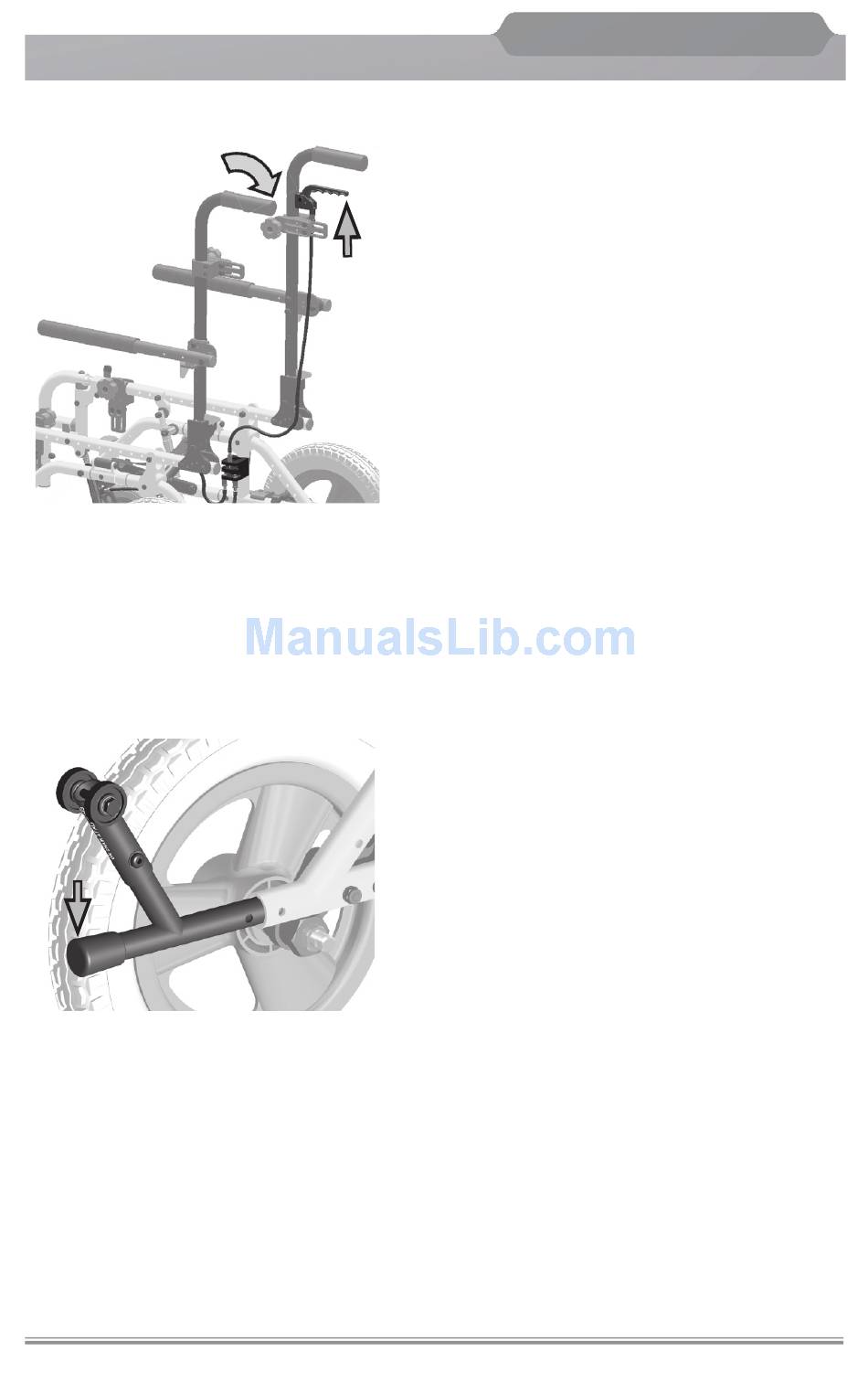

Rotate the anti-tip assemblies to the upward position
(see picture) Place your foot on the straight portion
of the tipping lever. Press down with your foot while
pulling back and pushing downward on the backrest
push handles.
