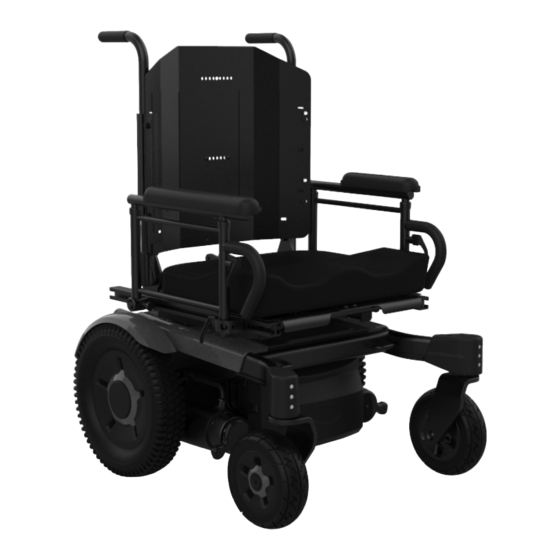

- Page 1 Invacare® AVIVA® Storm RX SRX-20R, SRX-20SP, SRX-20MP Power Wheelchair Base User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
-
Page 2: Table Of Contents
Invacare. Trademarks specifications without further notice. Making Life’s Experiences Possible is a registered are identified by ™ and ®. All trademarks are owned by trademark in the U.S.A. or licensed to Invacare Corporation or its subsidiaries... - Page 3 12.2 Control System 12.2.1 Battery and Charger Tips 13 Technical Data 13.1 Technical Specifications 13.2 ISO 7176-15 Annex A 13.2.1 AVIVA Storm RX with LiNX and Ultra Low Maxx Seat 14 Warranty 14.1 Limited Warranty—US, Australia, and New Zealand 14.2 Limited Warranty—Canada 14.3 Repair or Replacement...
-
Page 4: General
You can find the latest version as a pdf Gives useful tips, recommendations and on the Invacare website (see back page of this information for efficient, trouble-free use. manual). If you find that the font size in the print... -
Page 5: Service Life
The MK 24 SLD G batteries are rated for 450 charge/discharge cycles. If charge/discharge occurs every day, then the batteries on the AVIVA Storm RX Power Wheelchair will last approximately 450 days or 15 months. The 450 cycles are based on a fully discharged battery and then fully recharging the batteries for each cycle. -
Page 6: Safety
Invacare accessories. Unapproved -DO NOT smoke while using this wheelchair. accessories have not been tested by Invacare WARNING! for use with Invacare products. Risk of Injury, Damage or Death -DO NOT use unapproved accessories. - Page 7 As necessary, replace Risk of Injury or Damage mouthpiece, breath tube and saliva trap. Use of the power wheelchair outside of Contact your Invacare provider for more specified operating conditions may cause information about maintaining and unintended or erratic movement. This may troubleshooting the Sip-n-Puff system.
-
Page 8: Pinch Points
DOCUMENT IS SUBJECT TO CHANGE WITHOUT 2.3 Footplates and Front Rigging NOTICE. WARNING! As a manufacturer of wheelchairs, Invacare Risk of Serious Injury or Damage endeavors to supply a wide variety of Operating the wheelchair with a clearance of wheelchairs to meet many needs of the end less than 75 mm (3 inches) between the user. - Page 9 Invacare® AVIVA® Storm RX Number: 2 Type: GP24 Chemistry: Sealed VRLA Gel Operating Voltage: 24V nominal (2 x 12 V) Batteries GP24 Battery weight: approximately 51.5 lbs (23.4 kg) per battery GP24 Amp-Hour Rating: 73.6 Ah (C20) (63 Ah (C5))
- Page 10 Invacare® AVIVA® Storm RX Secure or remove fragile components prior to transporting the wheelchair. The wheelchair controls can often be folded in towards the center of the chair. Wrap sensitive components (electronics, etc.) in soft, shock-absorbing material (foam, bubble wrap, towel, etc.).
-
Page 11: Electromagnetic Compatibility (Emc) Information
Invacare® AVIVA® Storm RX 3 Electromagnetic Compatibility (EMC) Information 3.1 Electromagnetic Interference (EMI) From Radio Frequency Sources Powered wheelchairs and motorized scooters (in this text, both will be referred to as mobility devices) may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two way radios, and cellular phones. -
Page 12: Powered Wheelchair Electromagnetic Emissions
Guidance and manufacturer’s declaration – electromagnetic immunity The AVIVA Storm RX Power Wheelchair is intended for use in the electromagnetic environment specified below. The customer or the user of the AVIVA Storm RX Power Wheelchair should assure that it is used in such an environment. - Page 13 Guidance and manufacturer’s declaration – electromagnetic immunity The AVIVA Storm RX Power Wheelchair is intended for use in the electromagnetic environment specified below. The customer or the user of the AVIVA Storm RX Power Wheelchair should assure that it is used in such an environment.
- Page 14 Storm RX Power Wheelchair The AVIVA Storm RX Power Wheelchair is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the AVIVA Storm RX Power Wheelchair can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the AVIVA Storm RX Power Wheelchair as recommended below, according to the maximum output power of the communications equipment.
-
Page 15: Components
Missing or damaged labels may contribute to injury, damage or death. -Ensure ALL labels are present and legible. Labels are subject to change without notice. All Wheelchairs Fig. 4-1 AVIVA Storm RX with Ultra Low Maxx Seating ITEM DESCRIPTION Back Cushion Armrest... - Page 16 Invacare® AVIVA® Storm RX Fig. 4-7 Weight Capacity 60101921 Label—Non-Elevate WEIGHT CAPACITY 300 lb (136 kg). Refer to User Manual. 1167424 Fig. 4-8 Replacing Motor/Gearbox Label 60101920 Fig. 4-3 Battery Wiring Label Location Fig. 4-9 Push/Drive Label PART ITEM DESCRIPTION...
- Page 17 Invacare® AVIVA® Storm RX 60127212 60101928 Fig. 4-14 GP24 Battery Label Use GP24 batteries Only. See User Manual. 60101918 Fig. 4-15 Positive Battery Cable Label 60101919 Fig. 4-16 Negative Battery Cable Label Fig. 4-17 Contact/Consult Manual Label READ MANUAL — Before Fig.
- Page 18 Invacare® AVIVA® Storm RX ITEM PART DESCRIPTION NUMBER 60129679 Fig. 4-21 Magnetic Resonance (MR) Unsafe 1195716 Label Fig. 4-24 ISO 7176–19 Non- * Label located under the controller. Compliance Label ** Labels located under rear shroud. Wheelchairs with the Transport Ready Option...
-
Page 19: Symbols On The Labels
Invacare® AVIVA® Storm RX 4.4.1 Symbols on the Labels Battery Type and Terminal Refer to the following table for an explanation of the Polarity Symbol symbols on the labels. Use GP24 batteries with terminal polarity of Negative Symbol Description on the left and positive on the right. - Page 20 Invacare® AVIVA® Storm RX ASTM F2503 Magnetic Resonance (MR) Unsafe This device poses unacceptable risks to the patient, medical staff, or other persons within the MR environment. DANGER! Risk of Death, Injury, or Damage Danger indicates a imminently hazardous situation which, if not avoided, could result in death or serious injury.
-
Page 21: Setup
Invacare® AVIVA® Storm RX 5 Setup 5.1 Setup/Delivery Inspection Information Setup/delivery inspection should be performed by provider at time of delivery/set up. PROVIDERS — Refer to 10.2 Setup/Delivery Inspection, page 46 for a setup/delivery inspection checklist. Initial adjustments should be made to suit your personal body structure needs and preference. -
Page 22: Usage
Invacare recognizes and -Changing medications may affect your encourages each individual to try what works best for ability to operate the wheelchair. Discuss the... -
Page 23: A Note To Wheelchair Attendants
-Ensure your wheelchair is working properly -Determine and establish your particular and is inspected by a qualified Invacare safety limits. Practice bending, reaching and technician if the wheelchair is involved in a transferring activities in several combinations collision or impact event. -
Page 24: Stability And Balance
-Observe and follow all safety warnings. user and wheelchair separately. -Use instructions provided for safe 2. Invacare recommends using two attendants and transportation between floors. making thorough preparations prior to transportation. WARNING! Risk of Injury or Damage 3. -
Page 25: Driving Surfaces
The drive behavior initially experienced by the user WARNING! may be different from other wheelchairs previously Risk of Injury or Damage used. This power wheelchair has Invacare’s Improper position and activity, such as SureStep® technology, a feature that provides the reaching, bending or transferring may... -
Page 26: Safety Information When Approaching Obstacles
Invacare® AVIVA® Storm RX Your power wheelchair has been designed to CAUTION! operate on firm, dry, level surfaces (such as, Risk of Injury or Damage interior floors, concrete and asphalt). Other There is a risk of falling out of the mobility... -
Page 27: Negotiating Inclines
Invacare® AVIVA® Storm RX 6.2.4 Negotiating Inclines WARNING! Risk of Injury, Damage or Death Acceptable Incline Avoid Inclines of 10° and Loss of traction or stability on inclines/grades Angles above or ramps may cause injury, damage or death. 0° to 9°... -
Page 28: Reaching, Leaning And Bending - Forward
5. Align casters parallel to the drive wheels to improve stability during transfer. 4. Turn power off. 5. Reach back only as 6. Invacare strongly recommends ordering the far as your arm will optional wheel locks as an additional safeguard if extend without not present. -
Page 29: Weight Training And Other Activities
Risk of Injury or Damage If the wheelchair moves at a higher speed than the Invacare DOES NOT recommend the use of its pre-set anti-rollaway max speed, the controller will wheelchairs as a weight training apparatus. -
Page 30: Controls System
DO NOT, under after checking the entire controls system. A any circumstances, cut or remove the round specialized Invacare provider must perform the grounding prong from any plug used with or replacement. You can find information on the for Invacare products. -
Page 31: Batteries
The power will turn on. chargers may be left unattended during charging. 7.4 Batteries All charging devices which are supplied by Invacare comply with these requirements. Power is supplied by two 12 V batteries. The batteries You cannot overcharge the batteries when using are maintenance-free and only need regular charging. - Page 32 Unplug Synchronization Procedure MUST be and discontinue use immediately. Contact performed within 24 hours of powering a qualified service technician or Invacare on the wheelchair. The Battery for service. Synchronization Procedure can be found in the LiNX service manual and...
-
Page 33: How To Disconnect The Mobility Device After Charging
(that is more than two weeks), the of deep cycle gel cell batteries. Invacare batteries must be charged at least once a month to strongly recommends their use as the power maintain a full charge and always be charged source for this unit. -
Page 34: Instructions On Using The Batteries
Invacare® AVIVA® Storm RX 7.4.7 Instructions on Using the Batteries The depth of discharge affects the cycle life. The harder a battery has to work, the shorter is its life CAUTION! expectancy.Examples: Risk of Damage One deep discharge stresses the same as 6 Draining your batteries to extremely low normal cycles (green /orange display off). -
Page 35: Transport - Iso 7176-19
Invacare® AVIVA® Storm RX Invacare’s position that users of wheelchairs should 8 Transport - ISO 7176-19 be transferred into appropriate seating in vehicles This chapter covers products that adhere to ISO for transportation and use be made of the 7176-19. Refer to the labeling on your product restraints made available by the auto industry. -
Page 36: Transport-General Information
Invacare® AVIVA® Storm RX 8.3 Transport—General information WARNING! The mobility device is at risk of WARNING! tipping over if it is transferred to a Risk of Injury, Damage or Death vehicle while the user is still seated in Alteration or substitution may result in injury, the mobility device damage or death. - Page 37 It is imperative that the mobility device is inspected by intended direction of travel. an Invacare provider before being used again after -The mobility device must always be being involved in a crash. Alterations to the mobility...
-
Page 38: How The Mobility Device Is Anchored In A Vehicle
Invacare® AVIVA® Storm RX 8.5.1 How the Mobility Device is Anchored CAUTION! in a Vehicle Risk of injury if the user is not properly secured within the mobility device The mobility device is equipped with tie- -Even if the mobility device is equipped with down points. -
Page 39: Transporting The Mobility Device Without Occupant
Please refer to the instructions for proper use provided by the docking system manufacturer. CAUTION! Risk of injury Invacare has not tested this power wheelchair for compatibility or use with any transportation docking system. The docking system manufacturer is solely responsible for... -
Page 40: Maintenance
MUST be cared for just overlays and inductive rubberized protective boots. like any other vehicle. Routine maintenance Invacare reserves the right to ask for any item back will extend the life and efficiency of your that has an alleged defect in workmanship. Refer to wheelchair. -
Page 41: Inspect/Adjust Periodically
Invacare® AVIVA® Storm RX 9.2.3 Inspect/Adjust Periodically Ensure wheelchair rolls straight (no excessive drag or pull to one side). Inspect all operator (user/attendant) adjustable fasteners including the back pan, back cane and angle adjustment fasteners, and the arm support, flip back and height adjustment fasteners. Ensure fasteners are securely tightened. -
Page 42: Cleaning
For upholstery that is severely stained or For recommended tire pressure see inscription on surface finish that is badly damaged, contact tire/rim or contact Invacare. Compare table below for Invacare for further information. conversion. 1. Use the following instructions to clean this product unless otherwise specified. - Page 43 Invacare® AVIVA® Storm RX 60127229-A...
-
Page 44: Service
Sharp edges can cause serious injury. specifications. Stop using the wheelchair, and -Be mindful that some parts may have sharp contact Invacare, if wheelchair still does not edges. Use caution when encountering these perform to correct specifications. sharp edges. -
Page 45: Repair And Service Information - Providers
-Keep the product away from sparks, flame, -DO NOT overtighten hardware attaching to and open heat sources. the frame. This could cause damage to the -Contact your provider or Invacare for repair. frame tubing. DANGER! Risk of Death, Serious Injury, or Damage... -
Page 46: Setup/Delivery Inspection
Invacare® AVIVA® Storm RX WARNING! DANGER! Risk of Injury, Damage or Death Risk of Injury, Damage or Death Improper installation or service may result in Overinflation of tires may cause tires to injury, damage or death. explode. -Transport ready packages are not... -
Page 47: Replace Every 18 Months
Invacare® AVIVA® Storm RX are secure on drive wheels. Torque to 45 ft-lb (61 Inspect all fasteners including the back pan, back Nm). cane and angle adjustment fasteners, and the arm support, flip back and height adjustment fasteners. Inspect tires for flat spots and wear. -
Page 48: Battery Service
Invacare® AVIVA® Storm RX 1. Remove the two thumb screws securing the rear Wash all objects that have come into contact with shroud to the battery box. acid with lots of water. Disposing of dead or damaged batteries correctly 2. Remove the rear shroud assembly from the Dead or damaged batteries must be disposed of battery box. -
Page 49: Removing The Batteries From The Wheelchair
Invacare® AVIVA® Storm RX Ensure there is no ba�ery acid in the bo�om or 5. Using the 5 mm hex key, remove the bolt securing around the ba�ery box or on the sides of the the le� side of the ba�ery door assembly to the ba�ery(ies). -
Page 50: Installing Batteries Into The Wheelchair
Invacare® AVIVA® Storm RX 10.5.5 Installing Batteries into the Wheelchair 4. Install the bolt to secure the battery door assembly to the rear of the battery box. Torque to 90 in-lbs 5 mm Hex Key with Torque Wrench (7.5 ft-lbs, 10 Nm). -
Page 51: Replacing Battery Cables
Invacare® AVIVA® Storm RX 10.5.6 Replacing Battery Cables Wheelchair, page 49. 2. Note the orientation of the battery cables A on the 3/8 inch (6 pt) Box Torque Wrench batteries D. 3. Slide the battery terminal covers (not shown) back... -
Page 52: Cleaning Battery Terminals
Discarding these batteries in the trash is considered “improper disposal” and is illegal in most states. Old, used batteries are “hazardous material” and MUST be recycled through an approved agency. Contact your provider or Invacare on proper disposal and recycling of your batteries. 60127229-A... -
Page 53: After Use
Discarding these batteries in the trash is considered improper disposal and is unlawful in many locations. Contact your provider or Invacare for proper disposal and recycling of your batteries. Disposal must be carried out in accordance with the respective national legal provisions. -
Page 54: Troubleshooting
- too soon after being charged. Weak batteries. Battery Cables, page 51. recharged. Motor/gearbox Stop use of Wheelchair. Contact Provider/Invacare for Motor “chatters” or runs irregular. malfunction. Service. Joystick erratic or does not respond Damaged Contact Provider/Invacare for Service. -
Page 55: Battery And Charger Tips
Invacare® AVIVA® Storm RX SYMPTOM PROBABLE SOLUTIONS CAUSE Battery Check that battery isolation switch is deactivated (in the isolation switch Wheelchair does not respond to Power On position). Refer to 7.3 Using the Battery Isolation is activated. commands. Switch, page 30. -
Page 56: Technical Data
Invacare® AVIVA® Storm RX 13 Technical Data 13.1 Technical Specifications The technical information provided hereafter applies to a standard configuration or represents maximum achievable values. These can change if accessories are added. The precise changes to these values are detailed in the sections for the respective accessories. - Page 57 Invacare® AVIVA® Storm RX Black with rim inserts, 14 x 3” Black tires with gel foam inserts or pneumatic tires The recommended maximum tire pressure in bar Drive wheels or kpa is marked on the side wall of the tire or the rim.
- Page 58 Invacare® AVIVA® Storm RX Dimensions according to ISO 7176–15 Total length (including center- 47.6 in (1210 mm) at 0° mounted front rigging) 2.8 in (71 mm) Ground clearance 3.2 in (81 mm) under battery box Horizontal location of axle 0.5 in (12.7 mm)
-
Page 59: Iso 7176-15 Annex A
4 Horizontal distance of wheel axle from intersection of loaded seat and backrest reference planes The actual curb weight depends on the options and accessories your mobility device has been supplied with. Every Invacare mobility device is weighed when leaving the factory. Refer to the invoice for the curb weight (including batteries) measured. - Page 60 Invacare® AVIVA® Storm RX AVIVA Storm RX with Ultra Low Maxx Seat Disclosure Information (ISO) Minimum Maximum Dynamic stability uphill 10° Obstacle climbing 3.25 in (83 mm) Maximum speed forward 5.8 mph (9.3 km/h) 7.5 mph (12.0 km/h) Minimum braking distance from max 86.2 in (2190 mm)
-
Page 61: Warranty
Invacare warrants that the following components of the product will be free from defects in materials and workmanship for a period of two (2) years from the date Invacare ships the product to the original purchaser or provider: electronics and electrical components (excluding batteries), motors, powered seating actuators, gearboxes. -
Page 62: Disclaimers
14.5 Disclaimers The Warranty may not be modified or waived in any manner whatsoever without Invacare's express written authorization. THE WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. - Page 63 Notes...
- Page 64 One Invacare Way, Elyria, OH 44035, USA • 800-333-6900 • www.invacare.com Canada 570 Matheson Blvd E Unit 8, Mississauga, Ontario, L4Z 4G4 Canada • 800-668-5324 • www.invacare.ca Invacare Australia PTY. Ltd., 1 Lenton Place, North Rocks NSW 2151 Australia • 1800 460 460 • Australia www.invacare.com.au Invacare New Zealand Ltd, 4 Westfield Place, Mt Wellington 1060 New Zealand •...
Need help?
Do you have a question about the AVIVA Storm RX and is the answer not in the manual?
Questions and answers
How can I tell how much charge is left on the wheelchair battery?
You can check the battery charge level on an Invacare AVIVA Storm RX wheelchair using the battery indicator on the control system (joystick). If the battery level is low, the indicator will flash, especially after charging or during use. If the battery indicator flashes too soon after charging, the batteries may be weak or malfunctioning.
This answer is automatically generated

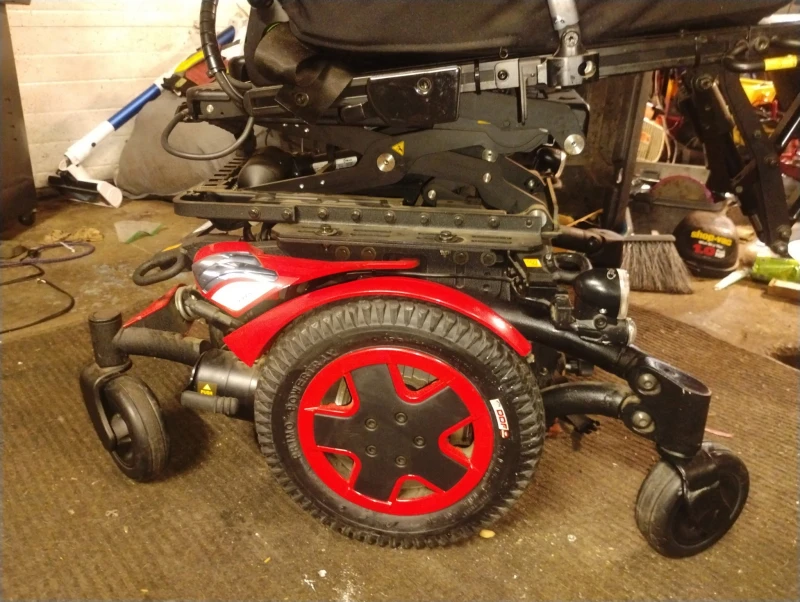

I own a 2017 aviva storm rx20 modulate power chair cam I upgrade from 12v52ah to 12v 100ah batt or 12v 72ah batt
