Pop-Up Hangers - Invacare NXT Generation NEXT User Manual

75° hanger

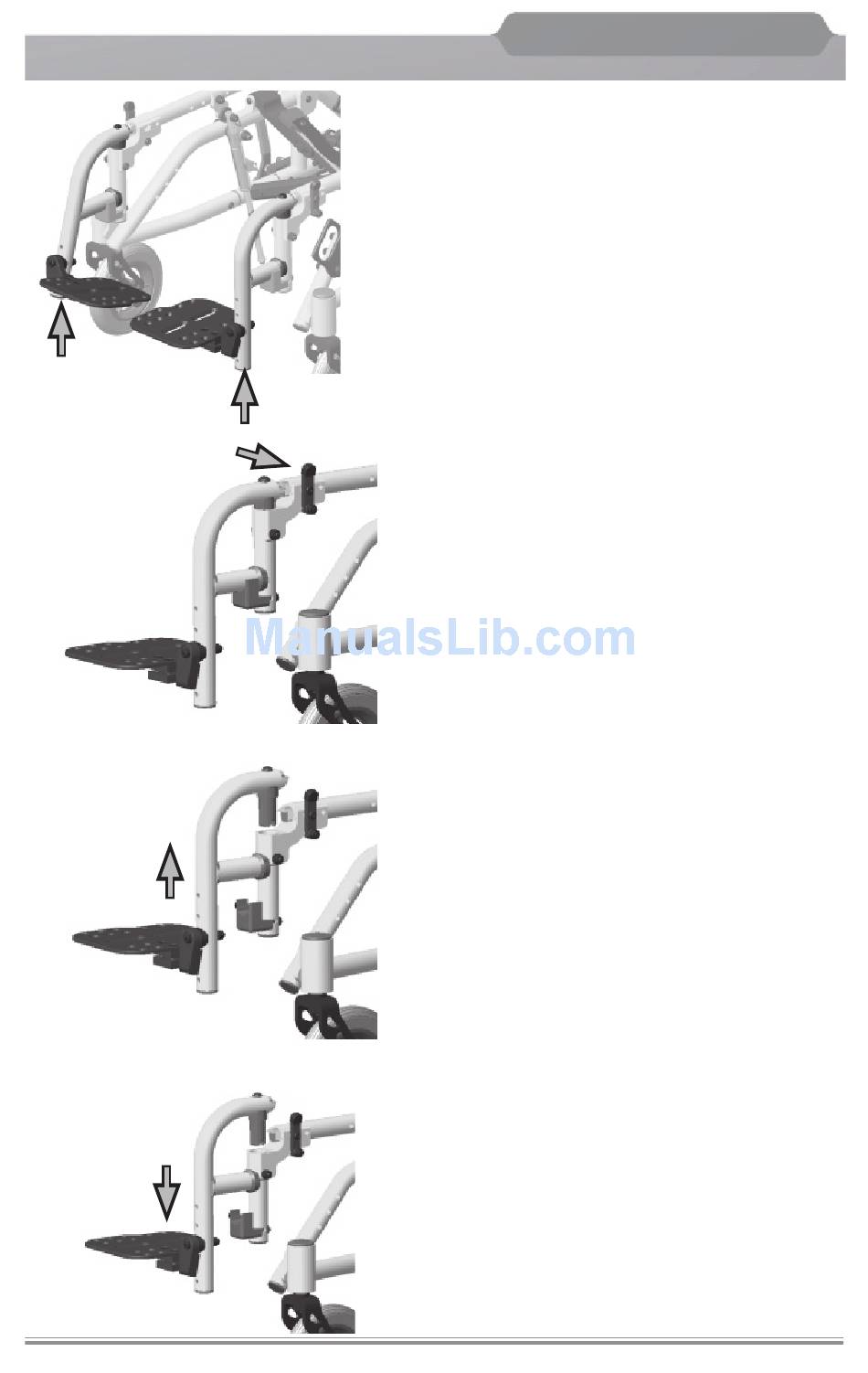

Pop-Up Removable Hangers
The
pop-up hangers in 75° or 90°.
1. To remove the hanger, place your hand on
90° hanger
2. Pull back on the lever towards the chair.
3. To remove the hanger, lift the hanger upward
4. To attach the hanger, line up the pivot
23
Main Frame
NXT
frames my be shipped with optional
the hanger release lever.
This will enable the hanger to pop-up and
swing away for ease of transfer.
until the pivot saddle is out of it's receiver
on the frame.
saddle with it's receiver on the frame and
insert downward pressure until hanger
locks into place.
