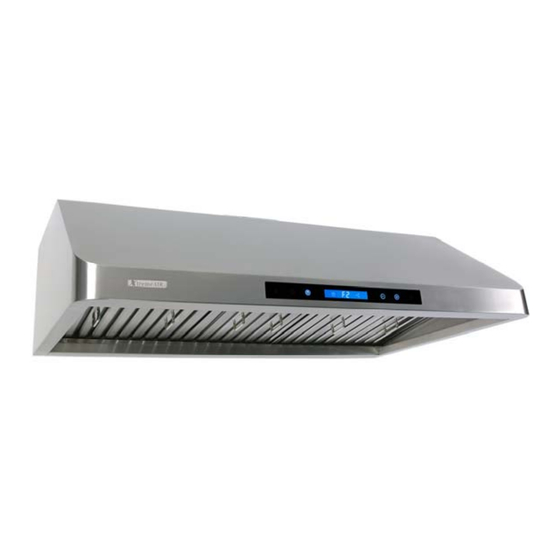

INSTALLATION GUIDE & USER'S MANUAL
PRO-X SERIES
Under Cabinet Range Hood
Model:
R130 / PX10-U30
R136 / PX10-U36
PX11-U30
PX11-U36
R230 / PX12-U30
R236 / PX12-U36
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS
FOR RESIDENTIAL & INDOOR USE ONLY
www.XtremeAirUsa.com
PAGE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R130 / PX10-U30 and is the answer not in the manual?

Questions and answers

Summary of Contents for XtremeAIR R130 / PX10-U30

  • Page 1 INSTALLATION GUIDE & USER’S MANUAL PRO-X SERIES Under Cabinet Range Hood Model: R130 / PX10-U30 R136 / PX10-U36 PX11-U30 PX11-U36 R230 / PX12-U30 R236 / PX12-U36 IMPORTANT: READ AND SAVE THESE INSTRUCTIONS FOR RESIDENTIAL & INDOOR USE ONLY www.XtremeAirUsa.com PAGE...
  • Page 2: Table Of Contents

    OTICE possible problems and situations that can occur. Please also use common sense and caution when installing, maintaining or operating this or any other appliance. Please always contact the XtremeAir USA, LLC. Customer Support Team at 1-714-554-9000 or email: support@XtremeAirUsa.com with any problems or situations that you do not understand.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS-continue WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: * Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer PRODUCT: Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
  • Page 4: Height & Clearance Requirement

    HEIGHT & VENTING REQUIREMENT CLEARANCE IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. • Hood mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose its performance and efficiency.
  • Page 5: Electrical Requirement

    PARTS SUPPLIED: Grease Tunel (oil container) Baffle Filters (1) Remote control (1) Instruction manual book (1) Screws (except for model PX11) HOOD DIMENSIONS R230 / PX12-U30, R236 / PX12-U36 R130 / PX10-U30, R136 / PX10-U36 PX11-U30 / PX11-U36 www.XtremeAirUsa.com PAGE...
  • Page 6: Installation

    INSTALLATION A. PREPARE DUCTWORK & SINGLE OUTLET Make sure you have a 15amp, 120V, 60Hz, single outlet on the left or right of the duct pipe (usually is on ¼ of cabinet width). See Figure 1 Make sure duct pipe is ready to hook up to the range hood before beginning installation (8”...
  • Page 7 5. From inside of the hood, place screws into the exact center of each knockout holes (4) and secure to cabinet bottom. Finish tightening all screws until secure. Be careful when using electrical screwdriver, damage to the range hood may occur. Figure 6 7.
  • Page 8: Range Hood Operation

    RANGE HOOD OPERATION BEFORE YOU BEGIN (important): this machine is equipped with TOUCH SENSITIVE CONTROL, so please 1. DO NOT PRESS. Only TOUCH & HOLD DOWN 2 SECONDS for every change makes. 2. TOUCH A WHOLE BUTTON only, please see below picture wrong vs. right WRONG RIGHT WRONG: Only half of a button...
  • Page 9 Activating Smoke Detector Function: • While the machine is off, touch Auto Function button to activate the smoke detector auto function mode NOTE: this function will only worked when there’s a lot of smoke. Once this button is touched, all other buttons are not active.
  • Page 10: Specification

    A. Activating Blower Function: * Option 1: Touch and hold down (+)for 1-2 seconds * Option 2: Touch and hold down power sign (1) for 1-2 seconds (the blower will be running as the same speed as last used) Note: The system saves user configurations, settings such as timer and blower (motor) speed will remain the same the next time it is turned on.
  • Page 11: Trouble Shooting

    TROUBLE SHOOTING 1. If the range hood or lights does not operate after installation: • Check if the range hood has been plugged in, make sure that all power has been turned back ON, the fuse is not blown and all electrical wiring is properly connected. •...
  • Page 12: Use & Care

    USE & CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to •...
