INSTALLATION GUIDE & USER'S MANUAL
PRO-X SERIES
Island Mount Range Hood
Model:
PX01-I36
PX01-I42
PX04-I36
PX04-I42
PX05-I36
PX05-I42
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS
FOR RESIDENTIAL & INDOOR USE ONLY
www.XtremeAirUsa.com
PAGE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-X PX01-I36 and is the answer not in the manual?

Questions and answers

Summary of Contents for XtremeAIR PRO-X PX01-I36

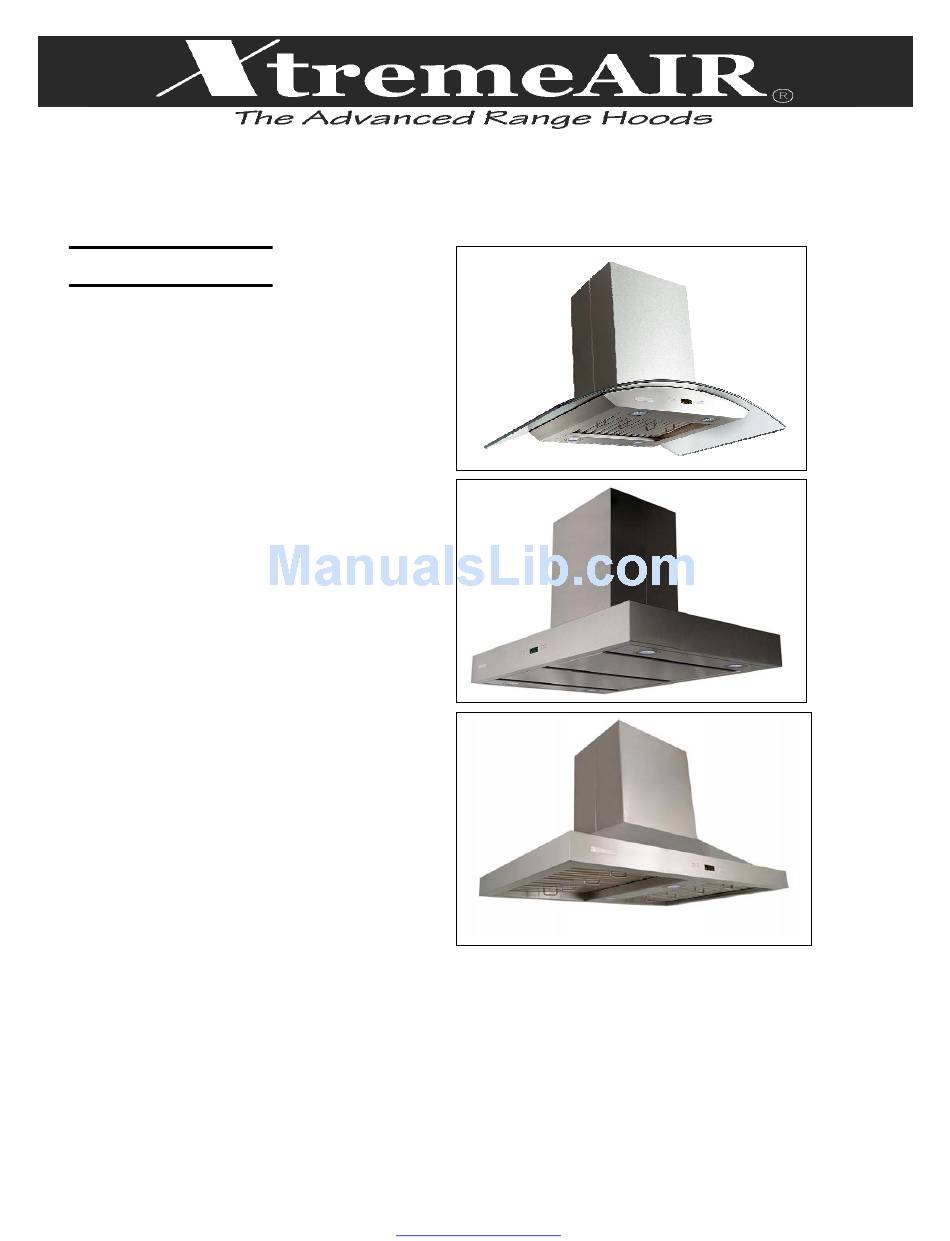

  • Page 1 INSTALLATION GUIDE & USER’S MANUAL PRO-X SERIES Island Mount Range Hood Model: PX01-I36 PX01-I42 PX04-I36 PX04-I42 PX05-I36 PX05-I42 IMPORTANT: READ AND SAVE THESE INSTRUCTIONS FOR RESIDENTIAL & INDOOR USE ONLY www.XtremeAirUsa.com PAGE...
  • Page 2: Table Of Contents

    OTICE possible problems and situations that can occur. Please also use common sense and caution when installing, maintaining or operating this or any other appliance. Please always contact the XtremeAir USA, LLC. Customer Support Team at 1-714-554-9000 or email: support@XtremeAirUsa.com with any problems or situations that you do not understand.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS-continue WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer PRODUCT: Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty. Do not try to alter the hood : The installation in this manual is intended for qualified installers, service technicians or persons with similar INSTALLATION...
  • Page 4: Venting Requirement

    HEIGHT & VENTING REQUIREMENT CLEARANCE IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. • Hood mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose its performance and efficiency.
  • Page 5 ELECTRICAL REQUIREMENTS: IMPORTANT: Observe all governing building codes and city ordinances. ■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required. It is the customer’s responsibility: • To contact a qualified electrical installer. • To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 —...
  • Page 6: Installation

    HOOD DIMENSION PX01-I36, PX01-I42 PX05-I36, PX05-I42 INSTALLATION PX04-I36, PX04-I42 Step 1: Mark “Ceiling Bracket” on the ceiling. 1. Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt. 2. Find and mark the center point directly above your cook top 3.
  • Page 7 STEP 3: Install support brackets 1. Attach multiple hoses brackets vertically outside the 4 corner of the ceiling bracket as show in Figure 3A. Figure 3A 2. Attach brackets vertically inside of the 4 multiple holes brackets installed in previous step (3A). Note: make sure extend the brackets to the appropriate length.
  • Page 8 To avoid scratching the chimney, extend the inner upper chimney slowly and carefully to the chimney- mounting bracket. STEP 7: Install oil tunnel & baffle filters 1. PX01-I36 & PX01-I42 A. DROP OIL TUNNEL: INTO THE INSIDE HOOD BODY SLOT. REFER TO LEFT FIGURE B.
  • Page 9: Range Hood Operation

    2. PX05-I36 & PX05-I42 A. DROP 2 OIL TUNNELS: INTO INSIDE HOOD BODY SLOT AT BOTH ENDS. REFER TO LEFT FIGURE B. INSTALL BAFFLE FILTERS; refer to Figure on the left for the following three steps: 1. Angle baffle filter toward side end of hood RANGE HOOD OPERATION 2.
  • Page 10: Specification

    2. Decrease Value button will decrease the speed of the blower (motor) from 4 to 1 (strongest to quietest). Increase Value button will increase the speed of the blower (motor) from 1 to 4 (quietest to strongest). Touch Power button once to turn off the system. Note: The system saves user configurations, settings such as light, timer and blower (motor) speed will re- main the same the next time it is turned on.
  • Page 11: Replacing The Light Bulb

    REPLACING THE LIGHT BULB 1. Make sure the range hood is unplugged or turn OFF breaker. 2. Use the small flat crew driver to lift any where around the outsider ring as show in below picture Arrow. 3. Install new light bulb 4.
  • Page 12: Use & Care

    USE & CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to • hair, fingers and loose clothing.
