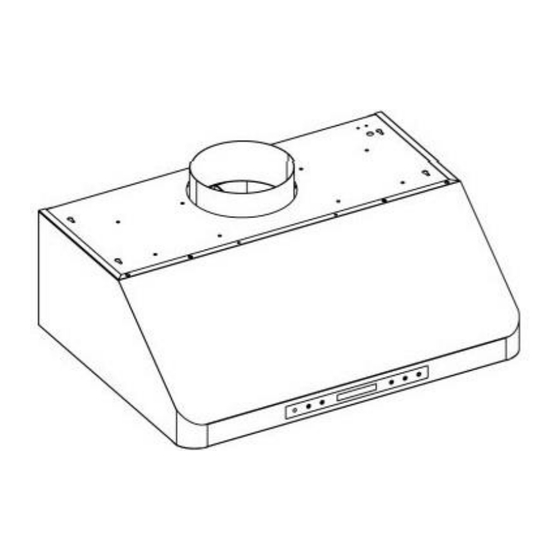

XtremeAIR UL10- U30 Installation Manual & User Manual

Pro-x, ultra, deluxe series under cabinet range hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

See also: User Manual
UNDER CABINET RANGE HOOD
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS
FOR RESIDENTIAL & INDOOR USE ONLY
INSTALLATION GUIDE & USER'S MANUAL
www.XtremeAirUsa.com
Pro-X Series: PX10-U30/36/42/48
PX11-U30/36/42
PX12- U30/36/42
Ultra Series: UL10- U30/36/42
UL11- U30/36/42
UL13- U30/36/42
Deluxe Series: DL09-U36/42/48
PAGE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UL10- U30 and is the answer not in the manual?

Questions and answers

Related Manuals for XtremeAIR UL10- U30

Summary of Contents for XtremeAIR UL10- U30

  • Page 1 INSTALLATION GUIDE & USER’S MANUAL UNDER CABINET RANGE HOOD Pro-X Series: PX10-U30/36/42/48 PX11-U30/36/42 PX12- U30/36/42 Ultra Series: UL10- U30/36/42 UL11- U30/36/42 UL13- U30/36/42 Deluxe Series: DL09-U36/42/48 IMPORTANT: READ AND SAVE THESE INSTRUCTIONS FOR RESIDENTIAL & INDOOR USE ONLY www.XtremeAirUsa.com PAGE...

  • Page 2: Table Of Contents

    : The Important Safety Instructions and warnings in this manual are not meant to cover all possible problems and/or situations that can MPORTANT OTICE occur upon installation of this unit. Use extreme caution when installing, maintaining or operating this or any other appliance. Contact the XtremeAir USA, LLC, Customer Support Team at 1.714.554.9000 or email: support@XtremeAirUsa.com with any concerns or situations that you do not understand.

  • Page 3: Height & Clearance

    2. HEIGHT & CLEARANCE 3. VENTING REQUIREMENTS IMPORTANT:  NEVER exhaust air or terminate ductwork into crawl spaces, between walls, ceiling, attics or garages. All exhaust must be ducted to the outside.  Hood mounted too low could result in heat and/or fire hazard. Hoods mounted too high will be hard to reach and will lose its performance and efficiency.

  • Page 4: Parts Supplied

    7. PARTS SUPPLIED PART SKETCH CODE PX10 PX11 PX12 UL10 UL11 UL13 DL09 DESCRIPTION MANUAL BOOK OIL TUNNEL 1 ¾ “ SCREW 1 ¼ “ SCREW BAFLE FILTERS 3 (36” / 42 “) 4 (48”) REMOTE CONTROL 8. HOOD DIMENSIONS PX11 / UL11 PX10 / UL10 DL09...

  • Page 5: Installation

    9. INSTALLATION NOTE: DO NOT TRY TO REMOVE BLOWER OR ITS HOUSING, YOU WON’T BE ABLE TO PUT IT BACK IN. MOREOVER, THE WARRANTY WILL BE VOIDED. STEP 1: PROTECT THE COOK TOP  Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt. STEP 2: CREATE WORK STATION (OPTIONAL) Have 2 pieces of wood about 2”...

  • Page 6: Install & Remove Baffle Filters

    STEP 7A: SECURE THE HOOD TO BOTTOM CABINET D09 model: please skip this step if you don’t have cabinet above the hood. From inside of the hood, use “hex bit extension” place 1 ¼” provided screw into each key hole (A) OR predrilled-holes (B) and secure to cabinet bottom.

  • Page 7: Range Hood Operation

    11. RANGE HOOD OPERATION IMPORTANT: BEFORE YOU BEGIN For TOUCH SENSITIVE CONTROLS, please DO NOT PRESS. A light touch and hold on the required button for a matter of a (1) one second is all that is needed. CORRECT INCORRECT OUCH THE ENTIRE BUTTON: See illustration on right: 2.
  • Page 8 F. Remote Control Sensor: Remote control sensor receives infrared (IR) signal from the remote control. The maximum distance for IR data transmission is 10 feet and requires direct line of sight. The transmission distance may vary depending on temperature and remote control battery condition.

  • Page 9: Specification

    TYPE 3: MECHANICAL BUTTON CONTROL 3. FOR ALL ULTRA SERIES: A. Activating Blower Function: Press your designed speed (1,2,3) B. Turn off power: While the blower (motor) is running, press button (0) to turn off the motors. C. To turn the light ON/OFF While the light is off, press button (4) once to turn on the light.

  • Page 10: Use & Care Information

     Check that the duct sized used is at least 6”. Range hood WILL NOT function efficiently with insufficient duct size & loosely secured.  Check if duct is clogged or if damper unit (half-circular flapper) is not installed correctly or opening properly. A tight mesh on a side wall cap unit might also cause restriction to the air flow.

  • Page 11: Product Warranty

    16. LIMITED WARRANTY www.XtremeAirUsa.com PAGE...
