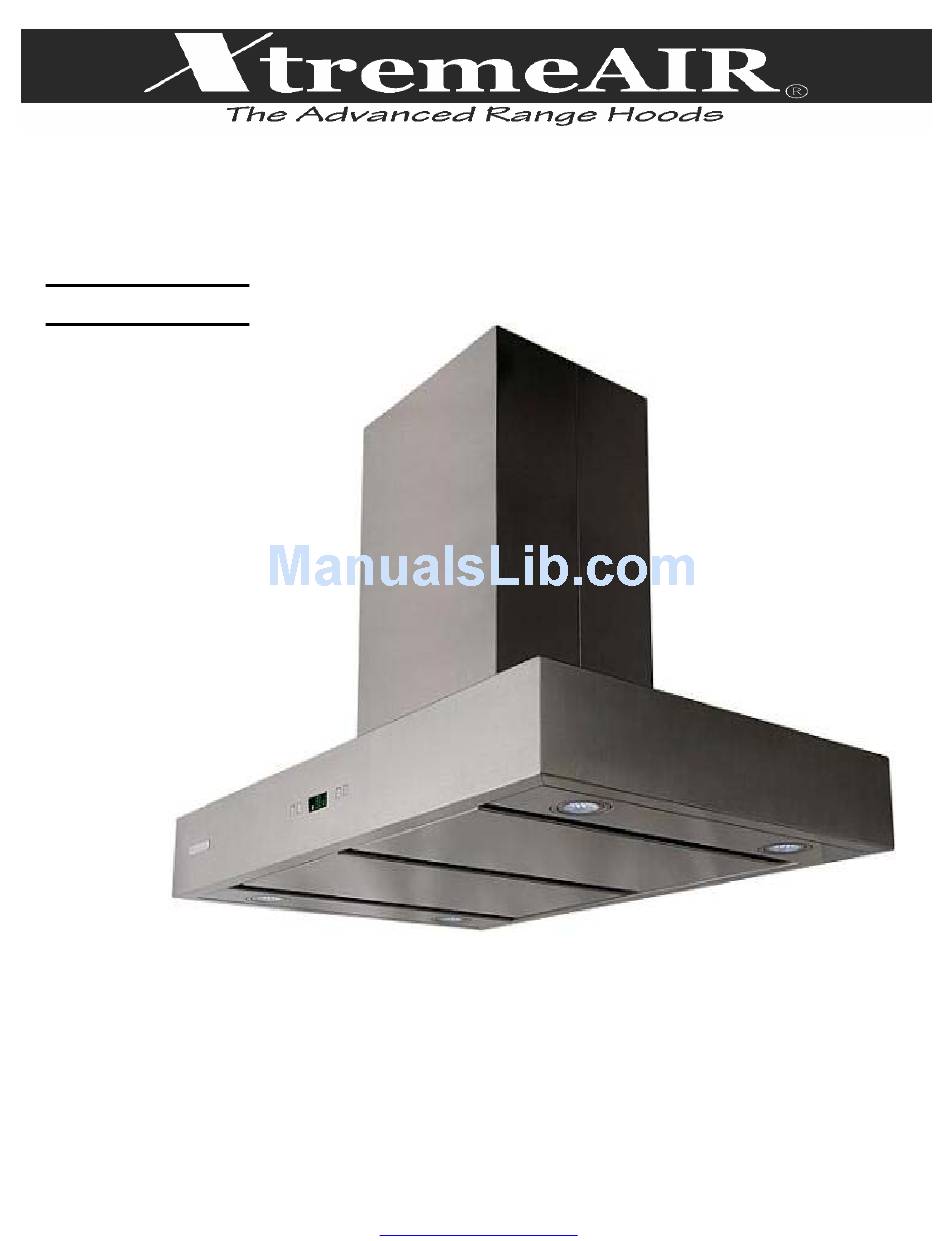

- Page 1 INSTALLATION GUIDE & USER’S MANUAL PRO-X SERIES PX04-I Model: Island Mount Range Hood For residential use only READ AND SAVE THESE INSTRUCTIONS www.XtremeAirUsa.com Page 1...
-
Page 2: Table Of Contents
The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text. TABLE OF CONTENTS • Important Safety Note..........3 • Parts supplied...............4 • Tools needed..............5 • Venting methods............5 •... -
Page 3: Important Safety Note
Read all Instructions before Installing & operating this range hood 1. The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction. 2. -
Page 4: Parts Supplied
PART SUPPLIED: Note: DO NOT remove the plastic covering on the chimneys this time as it protects chimneys from scratches during installation. www.XtremeAirUsa.com Page 4... -
Page 5: Tools Needed
TOOLS NEED FOR INSTALLATION: VENTING METHODS www.XtremeAirUsa.com Page 5... -
Page 6: Mount Heights & Clearance
HEIGHT & CLEARANCE VENTING REQUIREMENT IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. • Hood mounted too low could result in heat damage and fire hazard;... -
Page 7: Electrical Requirements
ELECTRICAL REQUIREMENTS: IMPORTANT: Observe all governing building codes and city ordinances. (Please consult with a qualified electrician for 220-Volt 50 Hz voltage) • This range hood uses 120V/60Hz. It is the customer’s responsibility: • To contact a qualified electrical installer. •... -
Page 8: Installation
INSTALLATION: www.XtremeAirUsa.com Page 8... - Page 9 STEP 1: Mark on ceiling 1. Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt. 2. Find and mark the center point directly above your cook 3. Place the ceiling bracket on the ceiling around the center point.
- Page 10 STEP 4: Install Chimney 1. Slide inner and outer chimney sleeve over support brackets, covering the ceiling bracket 2. Screw inner chimney into place at the top of ceiling bracket 3. Lift the outer chimney all the way up to ceiling, USE screw driver to hold it from falling down STEP 5: Attach Hood Body Important note: first make sure your ductwork and electrical work are pulled down about 2.5 feet through...
-
Page 11: Range Hood Operations
RANGE HOOD OPERATION NOTE: This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen. -
Page 12: Troubleshooting
D. Activating the timer function: 1. While the blower (motor) is running, press and hold Power button for over 3 seconds to activate delay off timer. Power-off delay indicator will lit up and power-off delay digital timer will begin to countdown, when it reaches zero, the blower (motor) will shut down. -
Page 13: Use And Care Information
USE & CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to •... -
Page 14: Maintenance
MAINTENANCE: SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •... -
Page 15: Specifications
SPECIFICATION Body Design Seamless Stainless Steel, Satin Finish Power Rating 120V/60Hz (USA & Canada standard) General Input Power 154 W (150W + 2x2W) Motor Input Power 150 W Ampere 3.0 A Levels Of Speed Control 4 Levels Airflow (Q/L/M/H) 280CFM / 460CFM / 670CFM / 900CFM (Q/L/M/H) 1.2Sone(43dB) / 2.8Sone(55dB) / 5.0Sone(63dB) / Noise Level 7.0Sone(68dB) -
Page 16: Warranty & Customer Support
XtremeAir USA LLC shall not be responsible for loss of use or other incidental consequential costs, expenses or damages which may occur. Under no circumstances shall XtremeAir USA LLC or any of its representatives be held liable for injury to any person or damage to any property, however arising. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
