INSTALLATION GUIDE & USER'S MANUAL

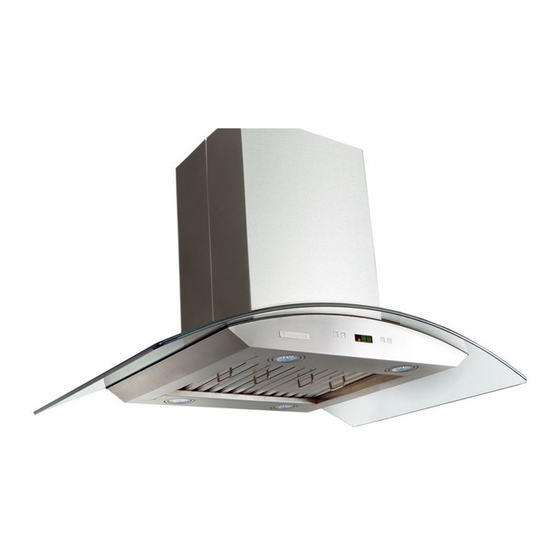

ISLAND MOUNT RANGE HOOD
Model: Pro-X Series PX01-I30 / I36 / I42
Special Series SP-I30 / I36 / I42
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS
FOR RESIDENTIAL & INDOOR USE ONLY
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Special Series and is the answer not in the manual?

Questions and answers

Summary of Contents for XtremeAIR Special Series

  • Page 1 INSTALLATION GUIDE & USER’S MANUAL ISLAND MOUNT RANGE HOOD Model: Pro-X Series PX01-I30 / I36 / I42 Special Series SP-I30 / I36 / I42 IMPORTANT: READ AND SAVE THESE INSTRUCTIONS FOR RESIDENTIAL & INDOOR USE ONLY Page 1...
  • Page 2: Table Of Contents

    MPORTANT OTICE upon installation of this unit. Use extreme caution when installing, maintaining or operating this or any other appliance. Contact the XtremeAir USA Customer Support support@XtremeAirUsa.com with any concerns or situations that you do not understand. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in this manual.
  • Page 3: Height & Clearance

    2. HEIGHT & CLEARANCE 3. VENTING REQUIREMENTS IMPORTANT:  NEVER exhaust air or terminate ductwork into crawl spaces, between walls, ceiling, attics or garages. All exhaust must be ducted to the outside.  Hood mounted too low could result in heat and/or fire hazard. Hoods mounted too high will be hard to reach and will lose its performance and efficiency.
  • Page 4: Parts Supplied

    7. PARTS SUPPLIED 8. GENERAL INSTALALTION DIAGRAM PART SKETCH DESCRIPTION CEILNG MOUNT BRACKET (W/18 ATTACHED BOLTS (4) MULTI-HOLE BRACKET (W/ 16 ATTACHED BOLTS) (4) LOWER CHIMNEY BRACKET (W/ 16 ATTACHED BOLTS) CAPONY GLASS (W/ 4 ATTACHED GLASS BOLTS) (4) 1 ¾” SCREWS ALUMINUM PIPE (2) DUCT CLAMP (2) BAFLER FILTERS...
  • Page 5: Installation

    9. INSTALLATION STEP #2: INSTALLING “CEILING BRACKET” STEP #1: MARKING “CEILING BRACKET” A. Cut out a hole in the ceiling where the ducting A. Put a thick, protective covering over counter top, cook top or will go. Range to protect from damage or debris. B.
  • Page 6: Range Hood Operation

    STEP #6: INSTALLING OIL TUNNEL & BAFFLE FILTERS IMPORTANT: BEFORE YOU BEGIN 1. This unit is equipped with TOUCH SENSITIVE CONTROLS so please DO NOT PRESS. A light touch and hold on the required button for a matter of a (1) one second is all that is needed.
  • Page 7 A. ACTIVATING BLOWER FUNCTION:  Option 1: Touch and hold down (+) for 1-2 seconds.  Option 2: Touch and hold down power sign (1) for 1-2 seconds. (The blower will be running at the same speed as last used). Note: The system saves user configurations, settings such as timer and blower (motor) speed will remain the same the next time it is turned on.
  • Page 8: Specification

    11. SPECIFICATION Body Design Non-Magnetic 1.0 mm Stainless Steel, Satin Finish Power Rating 120V/60Hz (USA & Canada standard) General Input Power 158W (150W + 4x2W) Motor Input Power 150 W each Ampere 1.3 A Levels Of Speed Control 4 Levels Maximum Airflow 900CFM Noise Level...
  • Page 9: Use & Care Information

    13. USE & CARE INFORMATION Operations: Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference.  Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. ...
  • Page 10: Product Warranty

    XtremeAir USA shall not be responsible for loss of use or other incidental consequential costs, expenses or damages which may occur. Under no circumstances shall XtremeAir USA or any of its representatives be held liable for injury to any person or damage to any property, however arising.
