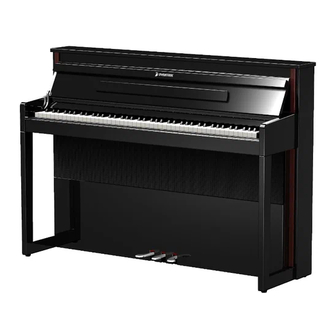

- Page 1 SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 31 OWNER'S MANUAL High Performance Digital Piano SDP-500 N e w f e e l , n e w l o o k a n d n e w s o u n d...
-
Page 2: Precaution
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 1 Precaution INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK... - Page 3 SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 2 Precaution PLEASE READ CAREFULLY BEFORE PROCEEDING Please keep these precautions in a safe place for future reference. WARNING Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards.
- Page 4 SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 3 Precaution ㆍBefore moving the piano, remove all connected immediately turn off the power and remove cables. electric plug from outlet. Then have the instrument inspected by qualified service ㆍWhen cleaning the piano, use a soft, dry cloth. personnel.
-
Page 5: Welcome
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 4 Welcome Welcome Thank you and congratulations on your purchase of the HIGH POLISHED DIGITAL PIANO. Your new HIGH POLISHED DIGITAL PIANO is a state-of-the-art musical instrument which incorporates the latest electronics technology to make its operation as easy as possible. Your versatile DIGITAL PIANO is ideal for beginners or experienced musicians. -
Page 6: Table Of Contents
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 5 Contents Contents 목 Precaution Welcome Contents External Appearance Controls Voice Key Map Function Key Map Terminals Using the Pedals Adjusting the Volume Selecting Voice Layer Split Twin Piano Default All Reverb Effect Tune... -
Page 7: External Appearance
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 6 External Appearance External Appearance Control Panel Fall Board Power Switch Terminal Speaker Box Pedal Accessory Owner’s AC Power Cable Manual Plug the AC Power Cable into the corresponding socket on the back of the main unit. -
Page 8: Turning On The Power
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 7 External Appearance Turning on the Power ① Connect the AC POWER CABLE. Insert AC plug at the end of AC cord into the piano and AC plug at the other end of AC cord into a standard AC outlet. -
Page 9: Controls
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 8 Controls / Voice Key Map Controls ⓐ MASTER VOLUME Page 13 ⓑ LAYER button Page 14 ⓐ ⓒ SPLIT button Page 15 ⓓ TWIN PIANO button Page 16 ⓒ ⓑ... -
Page 10: Function Key Map
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 9 Function Key Map Function Key Map... -
Page 11: Terminals
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 10 Terminals Terminals ⓐ ⓑ ⓒ ⓓ CONNECTING AUDIO DEVICES ⓐ AUX in jacks(RCA jacks of L and R) The stereo outputs from another instrument can be connected to these jacks, allowing the sound of an external instrument to be reproduced via the instrument's speakers. - Page 12 SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 11 Terminals CONNECTING OTHER DEVICES ⓒ Connecting the external MIDI devices (MIDI Terminals) Use the built-in MIDI terminals and standard MIDI cables to connect external MIDI devices. MIDI IN Receives MIDI messages from an external MIDI device. MIDI OUT Transmits MIDI messages generated by the instrument.
-
Page 13: Using The Pedals
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 12 Using the Pedals Using the Pedals The piano has three pedals. ③ ② ① ① Damper Pedal (Right) The damper pedal performs the same function as the damper pedal on an actual acoustic piano, letting you sustain the sound of the voices even after releasing your fingers from the keys. -
Page 14: Adjusting The Volume
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 13 Adjusting the Volume / Selecting Voice Adjusting the Volume The piano has one volume on the panel for adjusting the volume. MASTER VOLUME This determines the entire volume of the piano. ☞... -
Page 15: Layer
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 14 LAYER Layer The layer mode of the piano allows you to select and play two different voices simultaneously in a layer. This makes it easy to create exceptionally rich and thick tonal textures. -
Page 16: Split
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 15 Split Split The split mode of the piano allows you to select and play two different voices with your left and right hands. For example, play bass with the left and piano with the right. PLAYING WITH THE SPLIT VOICE ①... -
Page 17: Twin Piano
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 16 Twin Piano / Default All Twin Piano Splitting the piano Keyboard into two sections for twin piano performance. The keyboard can be divided into two separate sections, allowing two people to perform in the same octave. -
Page 18: Reverb
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 17 Reverb Reverb Reverb is an effect that recreates the decaying reflections of a sound in a performance space, and reproduces the special ambience of a concert hall. ① Press the REVERB button. ☞... -
Page 19: Tune
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 18 Tune Tune The Tune function lets you make fine adjustments to the pitch, allowing you to accurately match the tuning with that of other instruments. ① Press and hold the SETUP button. ☞... -
Page 20: Transpose
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 19 Transpose Transpose The Transpose function makes it possible to shift the pitch of the keyboard in semitone units, allowing you to match the pitch of the keyboard to the range of other instruments or singers, or letting you easily play in a different key without having to change your fingering. -
Page 21: Touch
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 20 Touch Touch Touch determines how your playing strength (velocity) affects the volume of the voices. Four types are available for tailoring the keyboard response to the selected voice, type of song, or your own playing preference. -
Page 22: Recording
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 21 Recording Recording This piano is equipped with a real time recorder, able to store a song or performance. It will record all notes as they are played. ① Select Record mode. Press the RECORD button. -
Page 23: Midi Implementation Chart
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 22 MIDI Implementation Chart MIDI Implementation Chart Function Recognized Transmitted Remark Basic Channel Default 1 - 3 Mode Default OMNI OFF, POLY OMNI OFF, POLY Note ON/OFF 9nH kk vv #kk:note ON (0-127) #vv:velocity (1-127) Pitch Bender... -
Page 24: Gm Voice & Drum Table
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 23 GM Voice & Drum Table GM Voice & Drum Table GM # Voice GM # Voice Piano1 Soprano Saxophone 0 0 1 0 6 5 0 0 2 Piano2 0 6 6 Alto Saxophone 0 0 3... - Page 25 SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 24 GM Voice & Drum Table Prog 1 Prog 9 Prog 17 Prog 25 Prog 26 Standard Drum Room Drum Rock Drum Elec. Drum Analog Drum 27 - D#1 High Q 28 - E1 Slap 29 - F1...
- Page 26 SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 25 GM Voice & Drum Table Prog 33 Prog 41 Prog 49 Remark Jazz Drum Brush Drum Orchestra 27 - D#1 Closed Hi Hat 28 - E1 Pedal Hi-Hat 29 - F1 Open Hi Hat 30 - F#1 Ride Cymbal...
-
Page 27: Troubleshooting
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 26 Troubleshooting Troubleshooting ※ Be sure to check the following table whenever you encounter problems with the DIGITAL PIANO operation. PROBLEM CAUSE SOLUTION No sound 1. Power supply problem. 1. Check whether the power cord properly is in AC outlet. -
Page 28: Specifications
SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 27 Specifications Specifications PRODUCT HIGH POLISHED DIGITAL PIANO KEYBOARD 88 HAMMER ACTION KEYBOARD - 7 1/4 OCTAVES MAX. POLYPHONY 128 NOTES SOUND 25 Voices and 1 DRUM KIT FUNCTIONS LAYER SPLIT TWIN PIANO TUNE... - Page 29 SDP500 영영 영영영 Rev1_SDP500 영영영 (영영).qxd 2012-05-23 영영 4:57 Page 30 D Y N A T O N E C O R P . w w w . d y n a t o n e . b i z Part No.
