OWNER'S MANUAL
USB Stereo Digital Piano

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLP-250H and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynatone SLP-250H

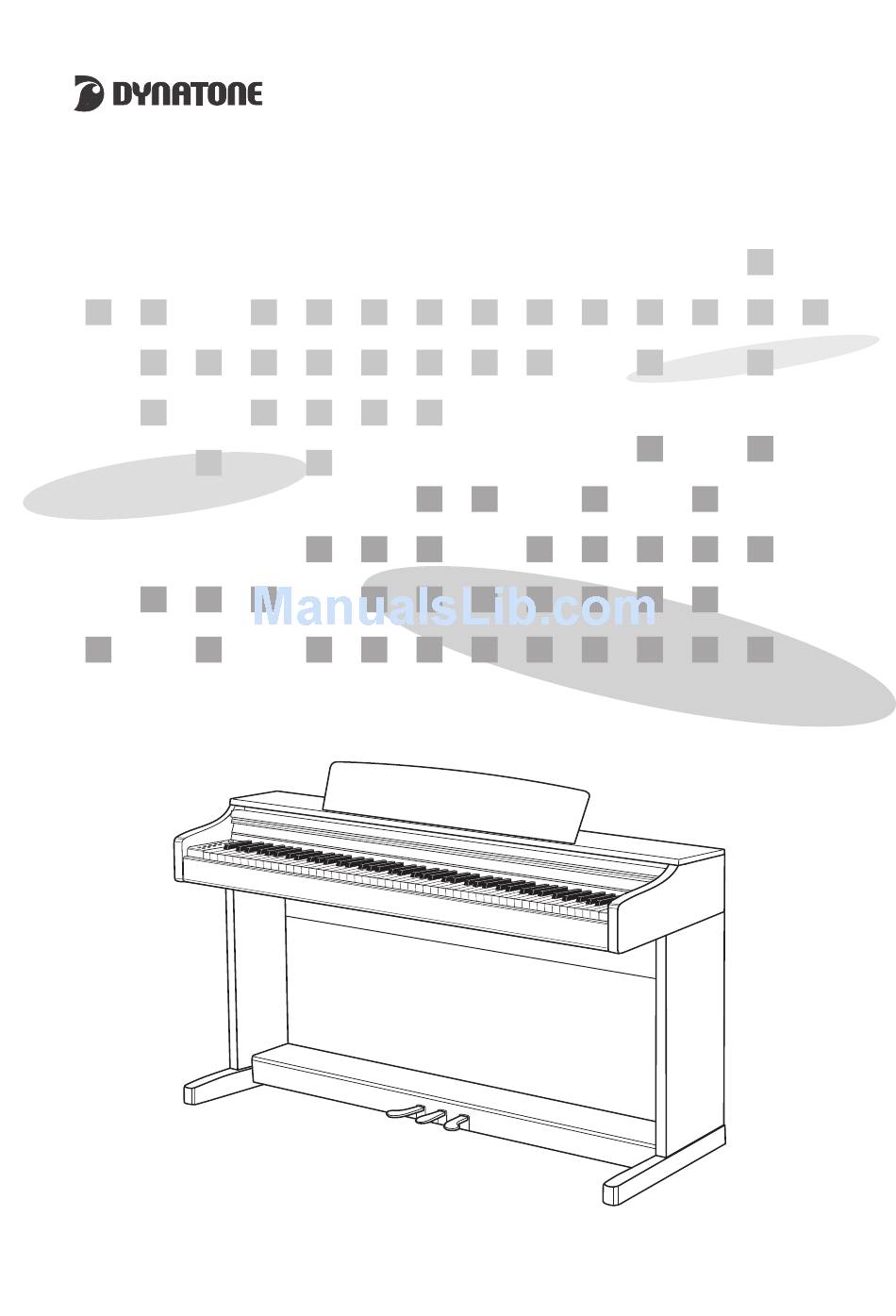

  • Page 1 OWNER'S MANUAL USB Stereo Digital Piano...
  • Page 2: Before Reading

    This section is intended to keep the user safe and Before reading: prevent financial loss. Please read this section carefully and use the product Safety Instructions properly according to it. WARNING: Notobservingthiswarningcouldresultindeathorseriousinjuryfortheuser. CAUTION: Notobservingthiscautioncouldresultininjuryand/orfinanciallossfortheuser. WARNING: To avoid the possibility of death or physical injury due to electric shock, short circuit, damage or fire, please observe the fundamental safety instructions listed below.
  • Page 3 CAUTION To avoid the possibility of physical injury, damage of this product or other financial loss, please observe the fundamental safety instructions listed below. This caution includes the following: - Do not place the power cord nearby heat generators or the keyboard. like heaters or radiators.
  • Page 4: Product Features

    Product Features Thank you for choosing this product. This digital piano is an advanced instrument capable of reproducing natural and beautiful piano sound along with many other quality instrument sounds so that it may match the diversity of the musical genres today and express the delicate expressions of the player to the fullest details. Also included are the features to record and replay what is played on the instrument, and USB MIDI jacks to allow for easy connections with PC without the need for any external MIDI devices.
  • Page 5: Table Of Contents

    Table of Contents Before Reading: Functions Safety Cautions Transpose Product Features Tune Touch Table of Contents MIDI Product Components MIDI Local Control Assembling the Product MIDI Implementation Chart Parts GM Voice & Drum Table Power Switch GM Voices Headphone Jacks Drum Table Connecting with External Devices Troubleshooting...
  • Page 6: Product Components

    After purchasing the product, carefully unpack it and examine the existence and condition of the items listed below. If an item is missing or damaged, contact the Product Components store where it was purchased. Piano Main Body Left/Right Legs (a, b) Pedal Plate (c) Backplate (d) Pedal Plate Fixers...
  • Page 7: Assembling The Product

    Assembling the Product Assembling the legs and pedals 1 Place the pedal plate (c) between the legs 2 Manipulate the pedal plate knob (see picture) (a, b) like the picture below and use the pedal so that it would be in firm contact with the floor plate fixer (e) to fix the pedal plate.
  • Page 8 Assembling the main body 1 Place the main body onto the assembled lower body by pushing it from behind so that the screws (2 EA) fixed under the main body would fit into the rear holes of the brackets attached to the legs.
  • Page 9: Parts

    Parts Power Switch Connect the AC power cord to the piano and a household AC outlet, and press the power switch to turn on the piano. The buttons will be lighted. ☞ When the piano is turned on, the initial default voice is 'Grand Piano 1'.
  • Page 10: Connecting With External Devices

    Connecting with External Devices Outgoing Jacks (located on the back of the main body) 1 Connecting to a computer (via USB Terminal) The piano has a USB jack which may be used to connect the piano directly to a computer. Through this jack the piano can exchange MIDI and audio streaming data with computers via USB.
  • Page 11: Pedals

    Pedals The piano consists of three pedals that correspond to the three pedals of an acoustic piano. Connecting the pedal cable Release the pedal cable tied below the pedal box, and connect it to the pedal jack located below the main body. Pedal Functions 1 Sustain Pedal (Right Pedal) This pedal performs the same function as the sustain pedal of an acoustic piano;...
  • Page 12: Control Panel

    Control Panel ⓐ MASTER VOLUME Page 13 ⓐ ⓑ LAYER Button Page 14 ⓒ SPLIT Button Page 15 ⓑ ⓒ ⓓ EXV Button Page 16 ⓔ TWIN PIANO Button Page 17 ⓓ ⓔ ⓕ REVERB Button Page 17 ⓖ ⓖ DEMO/EDU MUSIC Button ⓕ...
  • Page 13: Function Keymap

    Function KEYMAP...
  • Page 14: Basic Control

    Basic Controls Adjusting Main Volume Use the Master Volume knob to adjust the overall volume of the piano. ☞ The main volume also affects headphones. Choosing Voice This product is a high class digital piano which offers the refined deep sound of quality acoustic grand pianos along with the sound of other diverse instruments including that of electric musical instruments.
  • Page 15: Layer

    Layer Layer allows the player to sound two voices simultaneously while playing the keyboard. Using Layer q Choose the desired main voice first. Refer to page 13 for voice selection. w Press LAYER. The button will be lighted, indicating that the Layer mode is active. ☞...
  • Page 16: Split

    Split Split divides the piano keyboard into two sections, and allows the player to assign different voices to each of the sections. For example, by using Split the melody part on the right could be played in piano voice while the accompaniment on the left sounding in acoustic bass voice. Using Split Choosethedesiredmainvoicefirst.
  • Page 17: Exv (Expanded Voice)

    Expanded Voice (EXV) The Expanded Voice (EXV) is a feature that allows a more diverse and dynamic sound to be produced out of the 10 main voices; the ones that are assigned to the black keys. When this is active, 1~4 groups of sound layers are added to the main voices so that the player is able to experience the optimized sound effects of each voice.
  • Page 18: Twin Piano

    Twin Piano Twin Piano divides the piano keyboard into two equal smaller ("twin") keyboards that shares the same range of octaves. This allows two people to play the piano simultaneously on the same octave range. q Press TWIN PIANO. The keyboard is divided by the 'D#4' key (see below), into two equal sections with identical range of octaves. ☞...
  • Page 19: Metronome

    Metronome provides clicks over a steady beat to help the player keep in time while playing. Turning Metronome On/Off Press METRONOME to start the metronome. The button will be lighted. Press METRONOME again to turn off the metronome. The button will be turned off. Adjusting Tempo The tempo range of the metronome is from 40 to 250 beats per minute.
  • Page 20: Record

    The piano offers extensive recording functions to record what is played on it. Its memory system is capable of saving up to 6,500 notes, an amount that can save 'Fur Record Elise' by L. V. Beethoven five times in a row. Recording &...
  • Page 21: Demo/Educationmusic

    The piano offers a large bank of recorded demo music that could be listenedtobytheuserforlisteningpleasureoreducationalpurpose.The Demo/EducationMusic range of recorded pieces is extensive, including the series of educational etudes by the music educator Czerny and others as well as selected worksbylongbelovedcomposerslikeChopinandMozart. Choosing and playing a demo work The bank of demo music includes a large number of works by various composers, all recorded by professional pianists.
  • Page 22: Selected Works By Composer

    Selectied Works by Composer (1~50) Tilte Composer Etude op.10 no.1 Etude op.10 no.4 Etude op.10 no.5 Etude op.10 no.9 Nocturne op.9 no.1 Nocturne op.9 no.2 Nocturne op.27 no.2 Nocturne op.32 no.1 Nocturne op.72 no.1 Sonata op.3 no.4 Mazurka op.7 no.1 Chopin, Fryderk Mazurka op.30 no.2 Francuszek...
  • Page 23: Beyer/Czerny Etude Series

    Beyer/Czerny Etude Series (101 ~ 540) Series Series Series Series Beyer Beyer 76 Czerny 100-44 Czerny 30-18 Beyer 77 Czerny 100-45 Czerny 30-19 Beyer 1 Beyer 78 Czerny 100-46 Czerny 30-20 Beyer 2 Beyer 79 Czerny 100-47 Czerny 30-21 Beyer 3 Beyer 80 Czerny 100-48 Czerny 30-22...
  • Page 24: Burgmuller 25 Etudes/Sonatines

    Burgmuller 25 Etudes / Sonatines (601 ~ 745) Title Title Composer Burgmuller 25 Etude No.1 Sonatine op.20 no.1 1 Sonatine op.20 no.1 2 La Candeur Burgmuller 25 Etude No.2 Sonatine op.20 no.1 3 Sonatine op.20 no.2 1 L'Arabesque Burgmuller 25 Etude No.3 Sonatine op.20 no.2 2 Sonatine op.20 no.2 3 La Pastorale...
  • Page 25: Functions

    A number of different adjustable parameters are included, in order to allow advanced adjustments of the properties of the piano. Parameters Setting the Transpose The piano may be transposed by units of semitone, in order to either match the range of a singer's voice without necessitating change of fingering or facilitate playing music written in difficult keys.
  • Page 26: Touch

    Touch Touch determines how responsive the sound volume is to the playing strength or velocity of the player. The piano offers four different Touch settings to satisfy different types of music or player preferences. Setting Touch While holding SETUP, press the desired TOUCH(Off, Soft, Normal, Hard) key. ☞...
  • Page 27: Midi Implementation Chart

    MIDI Implementation Chart MIDI Implementation Chart Function Recognized Transmitted Remark BasicChannel Default Mode Default OMNIOFF,POLY OMNIOFF,POLY NoteON/OFF 9nHkkvv #kk:noteON(0-127) #vv:velocity(1-127) PitchBender EnHbibh Maximumswing+/-1tone 00 BnH00Hcc BankSelect 01 BnH01Hcc ModulationWheel 05 BnH05Hcc PortamentoTime 06 BnH06Hcc DataEntry 07 BnH07Hcc Volume 10 BnH0AHcc PanOut 11 BnH0BHcc Expression...
  • Page 28: Gm Voice & Drum Table

    GM Voice & Drum Table GM Voice Table GM # VOICE GM # VOICE 0 6 5 0 0 1 Grand Piano 1 Soprano Saxophone 0 6 6 0 0 2 Alto Saxophone Grand Piano 2 0 6 7 0 0 3 Tenor Saxophone Grand Piano 3 0 6 8...
  • Page 29: Drum Table

    Drum Table Prog 1 [Standard Drum] 27 - D#1 High Q 28 - E1 Slap 29 - F1 Scratch Push 30 - F#1 Scratch Pull 31 - G1 Sticks 32 - G#1 Square Click 33 - A1 Metronome Click 34 - A#1 Metronome Bell 35 - B1 Kick drum2/Jazz BD2...
  • Page 30: Troubleshooting

    Troubleshooting If a problem occurs while using the product, first check the points listed below prior to contacting customer service. Problem Cause Solution 1) The power cord is not properly plugged. 1) Properly plug the power cord. The piano does not turn on. 2) The power switch is not pressed.
  • Page 31: Product Specifications

    Product Specifications Product Name USB Stereo Digital Piano Keyboard 88 fully weighted hammer keys - 7 1/4 octaves Touch Off, Hard, Normal, Soft Maximum Polyphony Voices 26(1 Drum set included), GM 128(via MIDI) Features LAYER SPLIT TWIN PIANO TRANSPOSE TUNE REVERB Demo Beyer, Czerny 100/30/40, Burgmüller etudes and other...
  • Page 32 Part no. 11958314...
