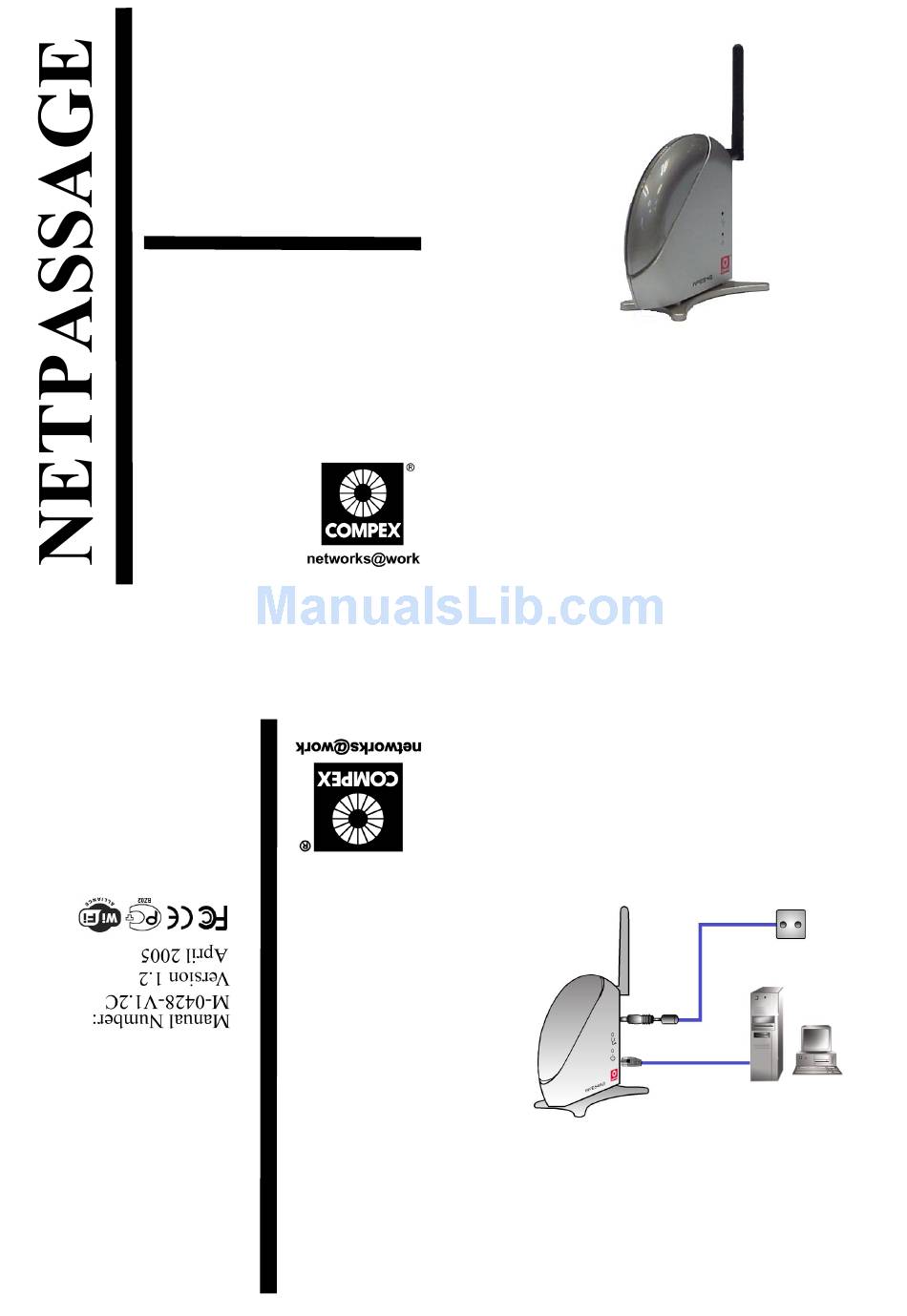

Compex
Wireless-A/G
Dual-Band Network
Access Point
WPE54AG
Ordering Information: WPE54AG 1a
Version 1.2
1. Introduction

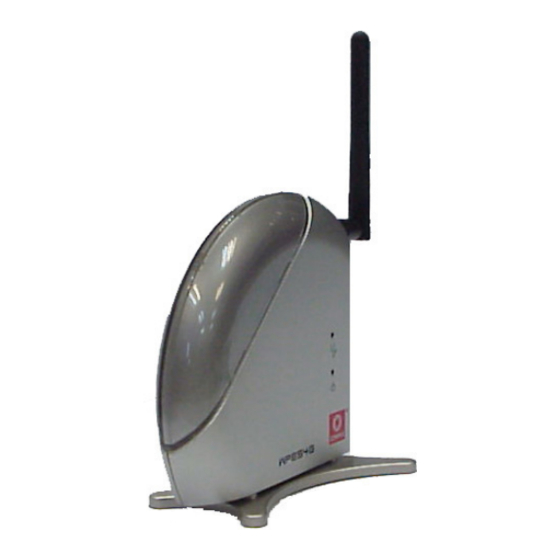

The Compex WPE54AG is a dual-band wireless access point that is
interoperable with all standard based 802.11a, 11g and 11b wireless
devices.
The Compex WPE54AG is a compact and high-performance access
point that is designed with support for high security features like
enhanced Wi-Fi Protected Access (WPA1/2-PSK, WPA1/2-EAP),
IEEE 802.1x Authentication (TLS, TLLS, PEAP, EAP-SIM) and 64-
bit or 128-bit Wired Equivalent Privacy.
Compex exclusive wireless LAN technology Wireless Pseudo VLAN
further enhances security in wireless hotspot networks in isolating
different users into their own VLANs.
Compex WPE54AG is capable of operating in 6 different modes:
Access Point Bridging, Access Point Client, Gateway, Wireless
Routing Client, Wireless Ethernet Adapter and Wireless Bridge Link;
making it suitable for all kinds of wireless applications.
2. Hardware Installation
1.
Connect one end of the RJ45 crossover Ethernet cable to your
PC and another end to the Ethernet port of your Compex
WPE54AG.
2.
Next, attach the power adapter supplied in the packaging to the
power point.
3.
Connect the power plug onto the socket on your Compex
WPE54AG.
Compex
WPE54AG
4.
Power ON your Compex WPE54AG and your PC. Notice that
the LAN Link/ACT and Power LEDs have lighted up. This
indicates that the connection has established successfully
between your Compex WPE54AG and your PC.
Power Point
RJ45
Ethernet cable
PC
