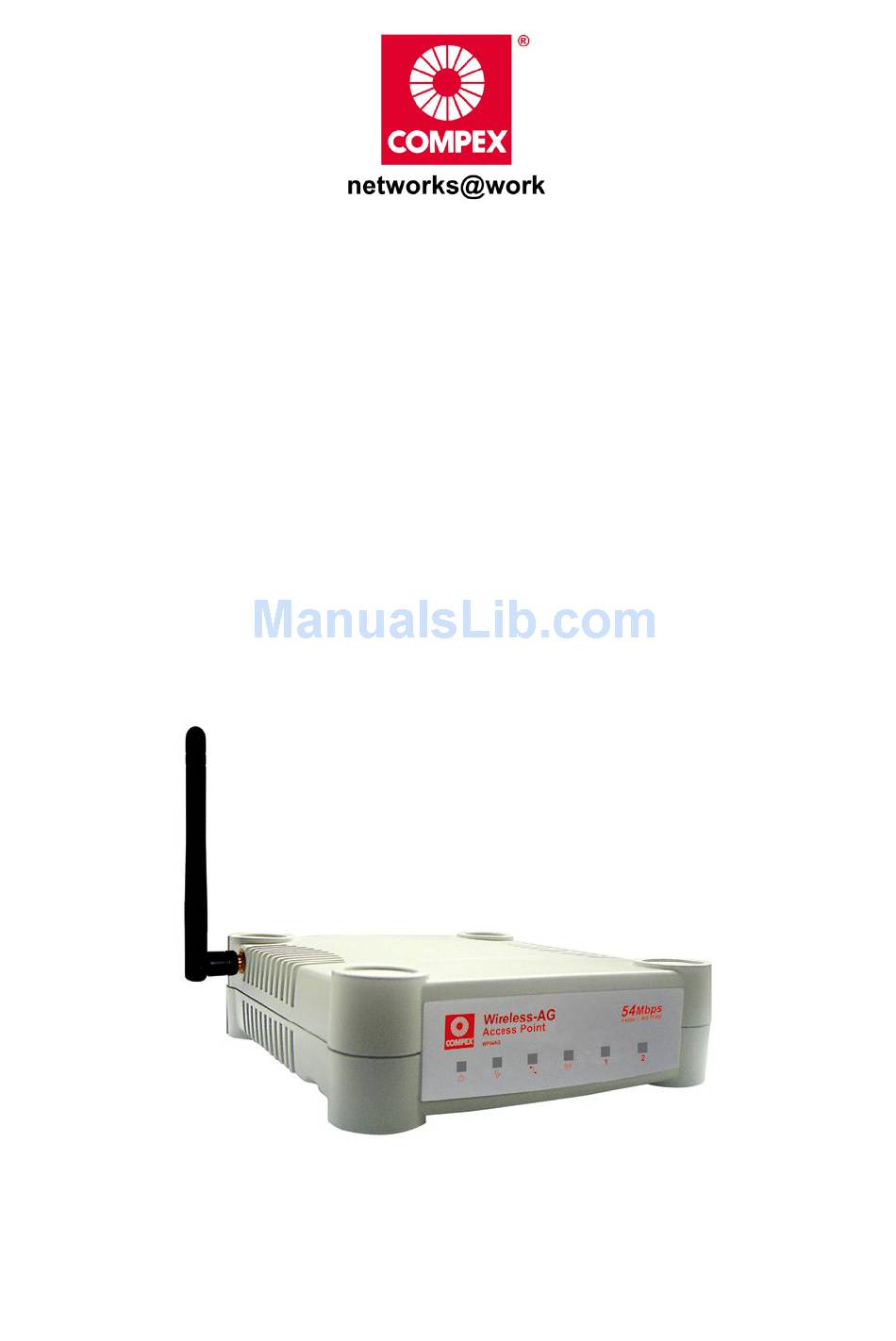

- Page 1 Quick Install Guide Wireless-AG 54Mbps XR Access Point (Compatible with 802.3af Standard PoE) WP54AG 1b...
-
Page 2: Table Of Contents
Table of Contents Introduction...................1 Packaging Content................2 Let’s Get Going-Hardware Setup ..........3 Access to Web-based Interface ..........6 Access to the Web interface with uConfig ......... 6 Access to the Web interface manually ..........9 Panel Views and Descriptions...........11 Technical Specifications ............14 WARRANTY REGISTRATION CARD .............19... -
Page 3: 1: Introduction

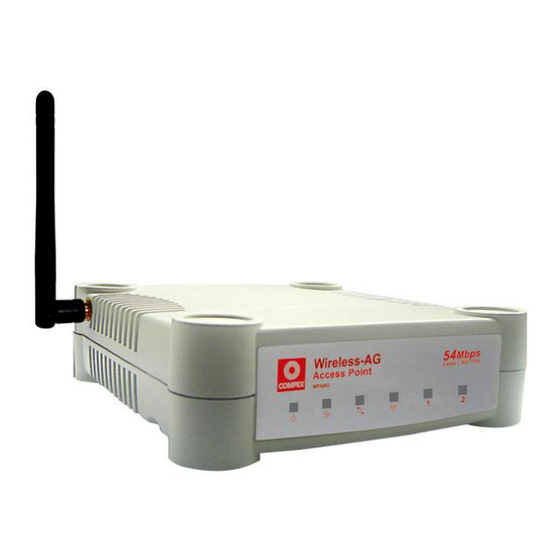

Chapter 1 Introduction 1: Introduction The Compex WP54AG Wireless-AG 54Mbps XR™ Access Point is a high- performance AP that is designed for enterprise and public access application. Embedded with Atheros chipset, it boasts network robustness, stability and wider coverage for network connectivity. Compliant with IEEE 802.11a/b/g standards, WP54AG supports high-speed data transmission of up to 54Mbps at 2.4GHz. -
Page 4: Packaging Content
Chapter 1 Introduction Packaging Content Actual product appearance may slightly differ depending on the hardware version. 1 x Compex WP54AG 1 x RJ45 Ethernet Straight Cable 1 x Antenna 1 x Product CD 1 x Read-Me-First Note... -
Page 5: 2: Let's Get Going-Hardware Setup
Connect the external antenna to the SMA connector of Compex WP54AG. Use an RJ45 Ethernet cable to connect one end of the cable to the Ethernet socket of the Injector and the other end to one of the LAN ports of Compex WP54AG. Warning. - Page 6 Chapter 2 Let’s Get Going - Hardware Setup Next, connect the RJ45 Ethernet cable attached to the standard PoE Injector to your PC’s Ethernet network adapter. Once you have finished configuring your WP54AG, you can connect the PoE Injector’s RJ45 Ethernet cable to your network device, such as to a switch or hub.
- Page 7 Connect the power adapter supplied in the standard PoE kit to the main electrical supply and the power plug into the socket of the injector. Note: The voltage and current supplied to the Compex WP54AG power adapter and the standard PoE kit power adapter are different. Do not interchange the power adapters.
-
Page 8: 3: Access To Web-Based Interface
Chapter 3 Access to Web-based Interface 3: Access to Web-based Interface There are two methods to access to the web-based interface of Compex WP54AG: Through the Compex Utility – uConfig You can access to the web-based interface directly without having to change the IP address of your PC. - Page 9 Chapter 3 Access to Web-based Interface Select NetPassage WP54AG in the Compex Products List section and click on Open Web button. To retrieve and display the latest device(s) in the list, click on the Refresh button.
- Page 10 Chapter 3 Access to Web-based Interface This screen prompts you not to exit your uConfig program while accessing to your web-based interface, or else you will fail to connect to your device. Click on the OK button to proceed. At the authentication page, click on the LOGIN! button to enter the main configuration page.
-
Page 11: Access To The Web Interface Manually
If you have forgotten the IP address of your access point, do not worry! Compex has designed another utility program NpFind that helps you verify the IP address of your Compex product. You can also find this utility in the Product... - Page 12 Access to Web-based Interface From the Product CD, click on Utilities and select NpFind program to run it. Once your Compex WP54AG has connected to your PC, the program will automatically detect the device and display its IP address. Open your Internet browser, enter http://192.168.168.1 in the address...
-
Page 13: 4: Panel Views And Descriptions
Chapter 4 Panel Views and Descriptions 4: Panel Views and Descriptions Front View of Compex WP54AG Name Description Steady Blue The device is powered up. (Power) No power is supplied to the device. Flashing Green This indicates flash during power-up. The light will goes off... - Page 14 Chapter 4 Panel Views and Descriptions Name Description Steady Green Ethernet port link is established. (Ethernet Port 1 & 2 LEDs) Flashing Green Activity is detected in the network. No network connection. Back View of WP54AG Name Description External Antenna 2dBi SMA antenna Ethernet Port 2 Ethernet LAN Port (RJ45)
- Page 15 Chapter 4 Panel Views and Descriptions Bottom View of Compex WP54AG Name Description Reset Push button To reboot, press once. To reset password, press and hold the button for 5 seconds. The DIAG LED will flash fast for about 5 flashes/sec before releasing the button.
-
Page 16: 5: Technical Specifications
Chapter 5 Technical Specification 5: Technical Specifications Safety and FCC Part 15 SubPart B and SubPart C [for • Electromagnetic wireless module] Conformance EN 300 328-2 [for wireless module] • EMC CE EN 301 489 (EN300 826) [for wireless • module] EN 55022 (CISPR 22)/EN 55024 Class B •... - Page 17 Chapter 5 Technical Specification Network Interface 2 Ethernet ports 10/100 Mbps auto-negotiation (RJ45) Modulation Techniques OFDM (BPSK, QPSK, 16-QAM, 64-QAM), DSSS (BPSK, QPSK, CCK) Output Power IEEE 802.11b: 20 dBm IEEE 802.11g: 19 dBm IEEE 802.11a: 17 dBm Operating Channels ! 11 Channels: US and Canada ! 13 Channels: Europe ! 14 Channels: Japan...
- Page 18 145mm x 132mm x 41mm (H x W x D) Further Information References For more details on the WP54AG configuration, please refer to the User’s Manual in the accompanying Product CD. This document may become superseded, in which case you may find its latest version at: http://www.compex.com.sg...
- Page 19 Compex, Inc. may make improvements and/or changes to the product and/or specifications of the product described in this guide, without prior notice. Compex, Inc will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the guide.
- Page 20 The transmitter shall not be collocated with other transmitters or antennas. ICES 003 Statement This Class B digital apparatus complies with Canadian ICES-003. DECLARATION OF CONFORMITY: Compex, Inc. declares that the product: Product Name: Compex Wireless-AG 54Mbps XR Access Point Model No.: WP54AG conforms to the following Product Standards:...
-
Page 21: Warranty Registration Card
CARD [M-0088-V2.4C] Register via the Internet at http://www.cpx.com or http://www.compex.com.sg To activate the warranty, please complete this card and return to Compex within ninety (90) days from the date of purchase. Please e-mail this warranty card to support@compex.com.sg. Product: Purchase Date:... - Page 22 Manual Number: M-0525-V1.1C Version 1.1 October 2005...
