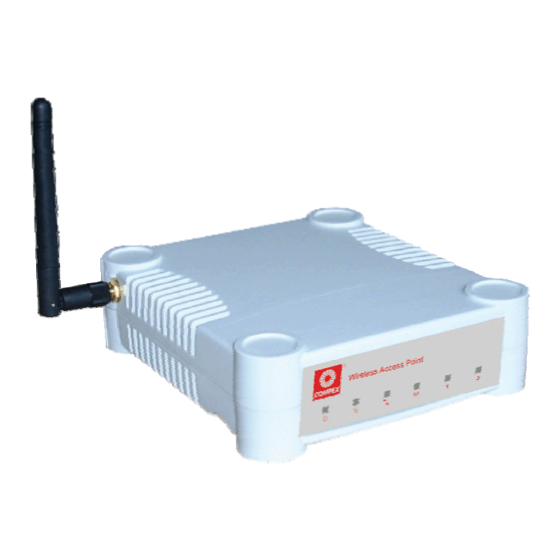

Compex WP54 Quick Install Manual

2 10/100 mbps auto-negotiating ethernet ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Quick Install Guide
Wireless Access Point
WP54

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP54 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compex WP54

Summary of Contents for Compex WP54

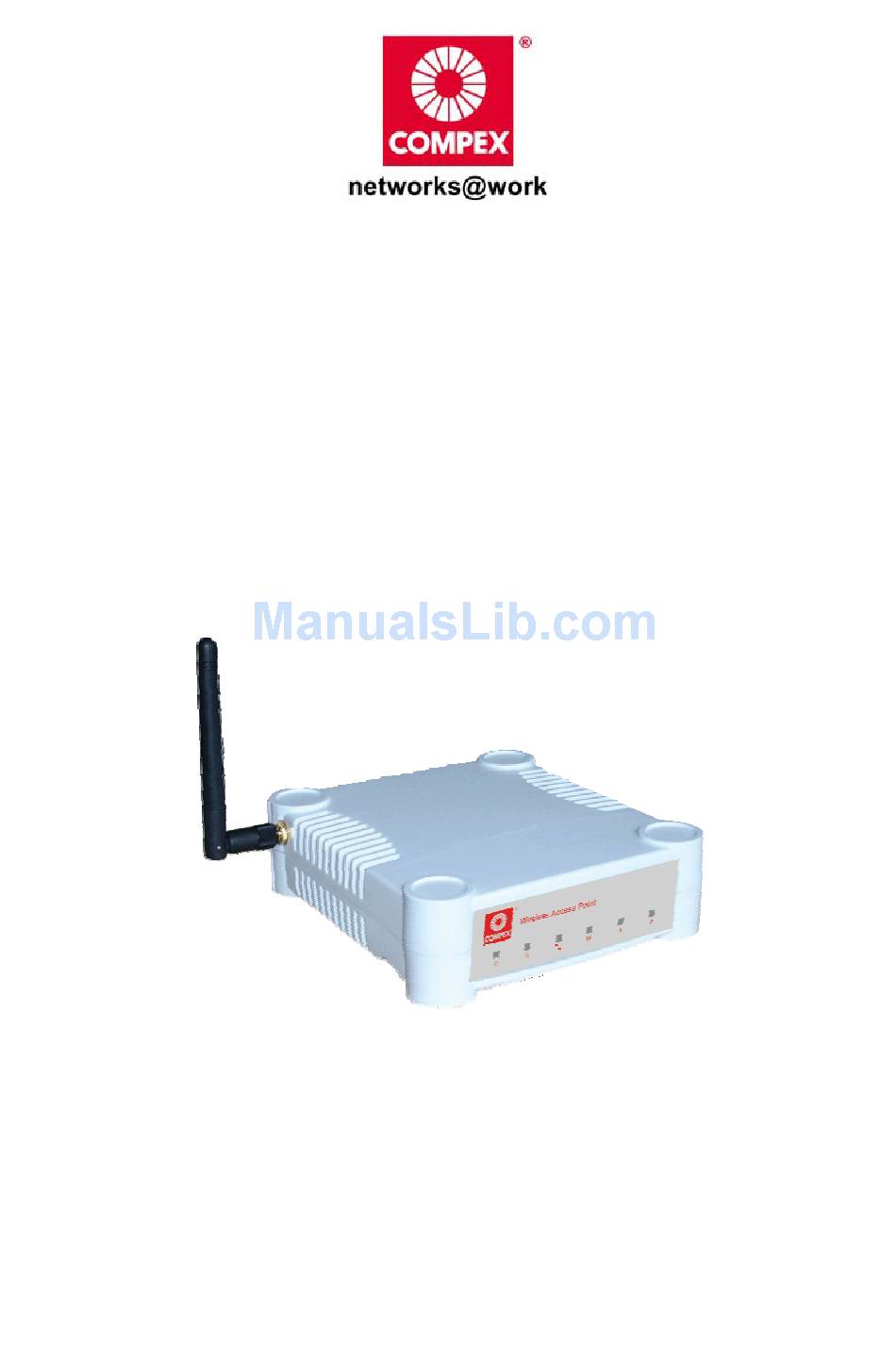

  • Page 1 Quick Install Guide Wireless Access Point WP54...

  • Page 2: Table Of Contents

    Table of Contents Introduction..................2 Introduction for WP54G 1D 6D multi-SSID firmware version....2 Introduction for WP54G 6E multi-SSID firmware version ...... 3 Introduction for WP54AG multi-SSID firmware version ......4 Introduction for WP54G 1D 6D non multi-SSID firmware version..5 Introduction for WP54G 6E non multi-SSID firmware version ....

  • Page 3: 1: Introduction

    Chapter 2 Let’s Get Going - Hardware Setup 1: Introduction Introduction for WP54G 1D 6D multi-SSID firmware version The Wireless Access Point with PoE is a high-performance access point (AP) that is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage.

  • Page 4: Introduction For Wp54G 6E Multi-Ssid Firmware Version

    Chapter 2 Let’s Get Going - Hardware Setup Introduction for WP54G 6E multi-SSID firmware version The high-performance access point (AP) is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage. Based on 802.11g, the access point supports high-speed data transmission of up to 54Mbps in the 2.4GHz frequency band.

  • Page 5: Introduction For Wp54Ag Multi-Ssid Firmware Version

    Chapter 2 Let’s Get Going - Hardware Setup Introduction for WP54AG multi-SSID firmware version The Wireless Access Point is a high-performance access point (AP) that is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage.

  • Page 6: Introduction For Wp54G 1D 6D Non Multi-Ssid Firmware Version

    Chapter 2 Let’s Get Going - Hardware Setup Introduction for WP54G 1D 6D non multi-SSID firmware version The Wireless Access Point is a high-performance access point (AP) that is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage.

  • Page 7: Introduction For Wp54G 6E Non Multi-Ssid Firmware Version

    Chapter 2 Let’s Get Going - Hardware Setup Introduction for WP54G 6E non multi-SSID firmware version The high-performance access point (AP) is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage. Based on 802.11g, the access point supports high-speed data transmission of up to 54Mbps in the 2.4GHz frequency band.

  • Page 8: Introduction For Wp54Ag Non Multi-Ssid Firmware Version

    Chapter 2 Let’s Get Going - Hardware Setup Introduction for WP54AG non multi-SSID firmware version The Wireless Access Point is a high-performance access point (AP) that is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage.

  • Page 9: 2: Let's Get Going-Hardware Setup

    Chapter 2 Let’s Get Going - Hardware Setup 2: Let’s Get Going-Hardware Setup Setup Requirements Before starting, please verify that the following is available: CAT5/5e networking cable At least one computer is installed with a Web browser and a wired or wireless network interface adapter TCP/IP protocol is installed and IP address parameters are properly configured on all your network’s nodes...
  • Page 10 Chapter 2 Let’s Get Going - Hardware Setup Insert one end of the Ethernet cable to any of the Ethernet ports on your access point, and the other end of the cable to your PC’s Ethernet network adapter. Attach the power adapter to the main electrical supply, and connect the power plug into the socket of the access point.

  • Page 11: Option Two: Using Poe To Supply Power To The Unit

    Chapter 2 Let’s Get Going - Hardware Setup OPTION Two: Using PoE to supply power to the unit The access point is fully compatible with a Power-Over-Ethernet (PoE) kit. A PoE accessory supplies operational power to the wireless AP via the Ethernet cable connection.
  • Page 12 Chapter 2 Let’s Get Going - Hardware Setup Next, connect the RJ45 Ethernet cable attached to the PoE Injector to your PC’s Ethernet network adapter. Once you have finished configuring your access point, you can connect the PoE Injector’s RJ45 Ethernet cable to your network device, such as to a switch or hub.
  • Page 13 Let’s Get Going - Hardware Setup Turn on your power supply. Notice that the Power LED has lighted up. This indicates that the access point is receiving power through the Compex PoE Injector. Notice also that the corresponding port LEDs have lighted up. This indicates that connection between your access point and your PC has been established.

  • Page 14: Optional: Mounting On The Wall

    Chapter 2 Let’s Get Going - Hardware Setup Optional: Mounting on the Wall Screw the mount onto the unit. Align the unit and mount to the wall. Use the mount as a guide, make 2 marks and drill 2 holes into the wall. Next, secure the unit and mount to the wall.

  • Page 15: 3: Access To Web-Based Interface

    First, you will need to assign an IP address to your PC, such as 192.168.168.xxx, where x can be any value from 2 to 254, so that it is in the same subnet as WP54. Then, enter IP address of WP54 in the address bar of Internet Explorer and press Enter.
  • Page 16 Chapter 3 Access to Web-based Interface Select WP54 in the Compex Products List section and click on Open Web button. To retrieve and display the latest device(s) in the list, click on the button. This screen prompts you not to exit your uConfig program while accessing to your web-based interface, or else you will fail to connect to your device.

  • Page 17: Access To The Web Interface Manually

    The default password is “password”. You will then reach the home page of WP54’s web-based interface. Note: Refer to User’s Manual for instructions on how to configure WP54 for wireless access. Access to the Web interface manually If you wish to access to the web interface manually, you need to configure the...

  • Page 18: 4: Panel Views And Descriptions

    Chapter 4 Panel Views and Descriptions 4: Panel Views and Descriptions Front View of WP54 Name Description Steady Blue The device is powered up. (Power) No power is supplied to the device. Flashing Green This indicates flash during power-up. The light will goes off...
  • Page 19 Ethernet port link is established. (Ethernet Port 1 & 2 LEDs) Flashing Green Activity is detected in the network. No network connection. Back View of WP54 Name Description External Antenna SMA antenna Ethernet Port 2 Connection for computer with NIC (Network Interface Card) or Ethernet network card.
  • Page 20 Description DC Jack Connect to power adapter (if used). Reverse SMA connector Connect to external SMA antenna. Bottom View of WP54 Name Description Reset Push button To reboot, press once. To reset password, press and hold the button for 5 seconds.

  • Page 21: 5: Technical Specifications

    5: Technical Specifications Safety and FCC Part 15 SubPart B and SubPart C (for Electromagnetic wireless module) Conformance EN 300 328-2 EMC CE EN 301 489 (EN300 826) EN 55022 (CISPR 22)/EN 55024 Class B EN 61000-3-2 EN61000-3-3 CE EN 60950 Standards (WP54G) IEEE 802.11b IEEE 802.11g...
  • Page 22 Wireless Operation Access Point Modes (non multi-mSSID Access Point Client firmware version) Point to Point Point to Multiple Point • Wireless Routing Client • Gateway • Wireless Adapter Wireless Operation Access Point Mode Modes (multi-mSSID Client Mode firmware version) Wireless Routing Client Gateway Mode Wireless Adapter Mode Transparent Client Mode...
  • Page 23 Operating Channels 11 Channels (US and Canada) 13 Channels (Europe) 14 Channels (Japan) Advanced Wireless Virtual AP Features Long Distance Parameters Setup Adjustable transmit power control (in 1dB steps) Smart Select HTTPS Antenna Detachable 2dBi antenna with SMA connector Management HTTP Web Management SNMP - SNMP (RFC1157)
  • Page 24 Environment Requirements Operating Temp: -20ºC to +70ºC Storage Temp: -65ºC to +100ºC Operating Humidity: 5% to 95% RH Humidity (RH – Relative Humidity): Physical Dimensions 145mm x 132mm x 41mm (H x W x D)
  • Page 25 Further Information References For more details on the WP54 configuration, please refer to the User’s Manual in the accompanying Product CD. This document may become superseded, in which case you may find its latest version at: http://www.compex.com.sg...
  • Page 26 Compex, Inc will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the guide.

  • Page 27: Warranty Registration Card

    CARD [M-0088-V2.4C] Register via the Internet at http://www.cpx.com or http://www.compex.com.sg To activate the warranty, please complete this card and return to Compex within ninety 90 days from the date of purchase. Please e-mail this warranty card to support@compex.com.sg. Product: Purchase Date:...
  • Page 28 Manual Number: M-0524-V1.1C Version 1.1 October 2006...
