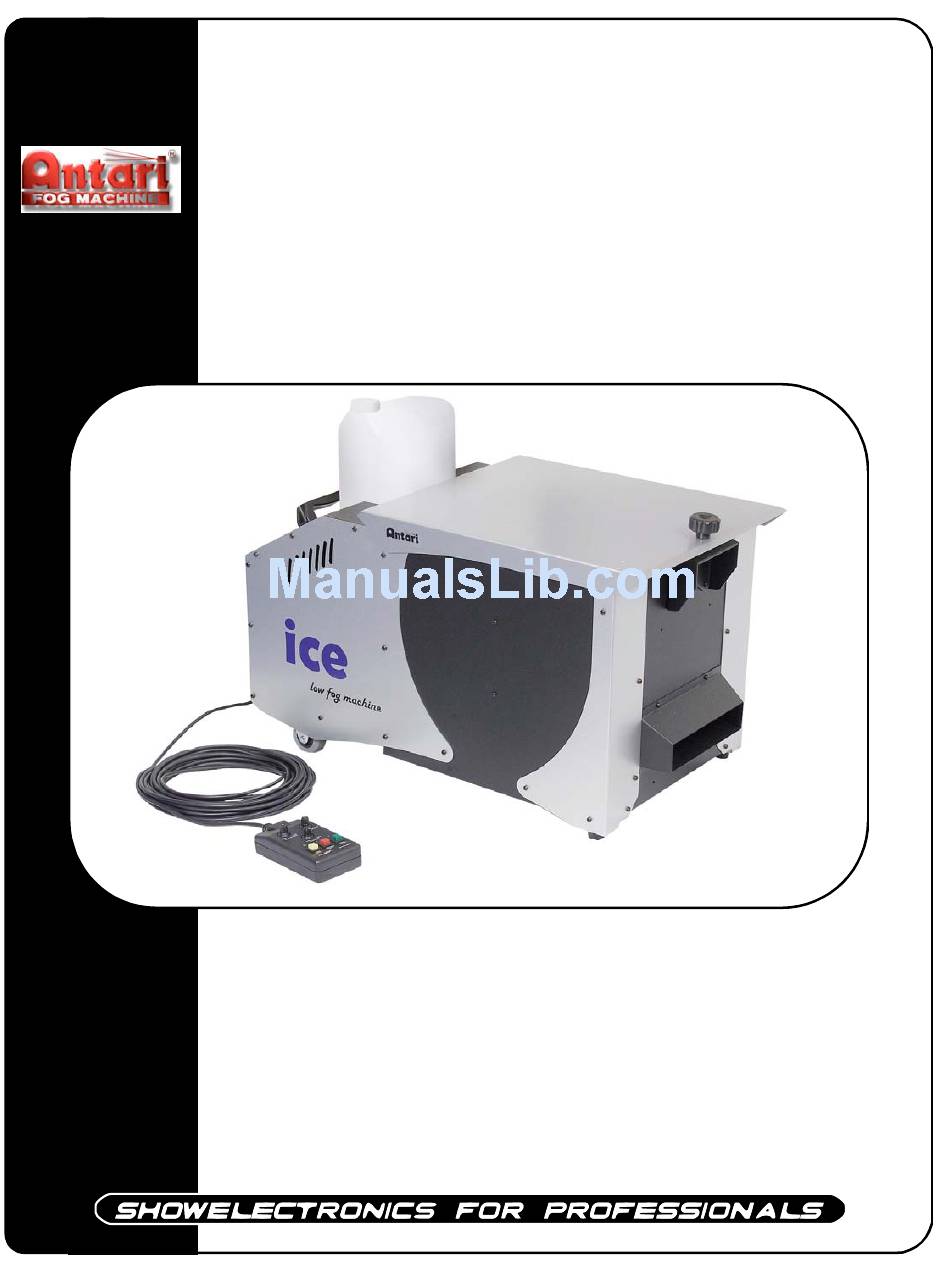

- Page 1 Antari ICE ORDERCODE 60620...
- Page 2 New products are being launched regularly. We work hard to keep you, our customer, satisfied. You can get some of the best quality, best priced products on the market from Antari. So next time, turn to Antari for more great equipment.
-
Page 3: Table Of Contents
Antari Antari Ice Fogger Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview…………………………………………………………………………………………………..…… Installation................…...…………………………………….…… Installing the fogger............………………………………………..………… Set Up and Operation..............……..……………………………….… Procedure………….................……………………………………… Remote control operation..............…………………………………….. DMX Setting………………………………………………………………………………………………………. Maintenance...................………..………….…….……………... Performance notes................…………………….………………... Troubleshooting................………………….………………….…. Product Specifications..............……………….…….…………………. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before filling the tank! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
• Always keep the ice machine upright. • For adult use only. Ice machine must be installed out of the reach of children. Never leave the unit running unattended. • Always keep the nozzle at least 50 cm away from contact with anything, while in operation. -
Page 6: Description

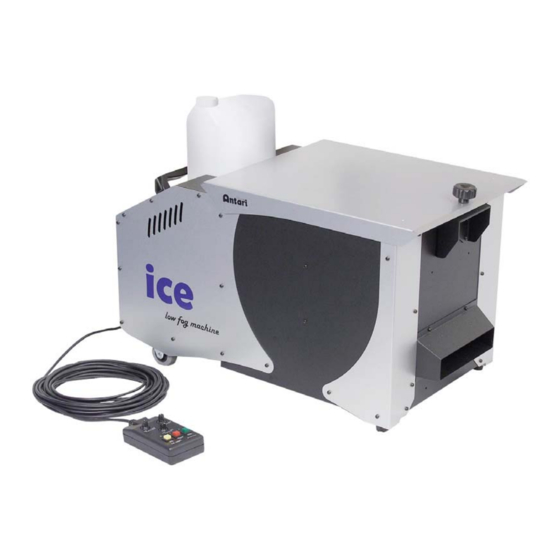

Description of the device Features The Ice fogger is a versatile and powerful fogger from Antari. • 1040 W Heater • warm-up time approx. 4 min. • Fog output min. 230m Overview Fig. 1 1) 2,5 L Liquid tank 2) Remote control type Z-8... - Page 7 4) Screw for opening 8 kg ice cube tank 5) Output 6) Drainage outtake Fig. 2 7) Fluid tank 2,5 L 8) Water pump ON / OFF 9) ON / OFF 10) IEC Power Connector 11) DMX input 12) DMX Dip Switches...
-
Page 8: Installation
2. Place Low Fog Machine on a flat surface and remove fog liquid tank cap. 3. Fill the chamber with regular ice cubes or dry ice. The chamber can hold as much as 8 kg ice cubes (fig 4). 4. Fill with ANTARI Low Fog Liquid (ordercode 60603) or other high-quality water-based fog fluid. -
Page 9: Remote Control Operation
Remote Control Operation Z-8 : 10 meter wired remote controller can operate the ICE machine. Its three knobs allow the operator to customize fog machine functions by adjusting output duration, interval and output volume. 1. Adjust the duration of each fog emission (within the range of 1 to 15 seconds) by means of the DURATION control knob. -
Page 10: Dmx Setting
250 – 255 = Maximum Volume Output ( 100%) The ICE Low Fog Machines has onboard DMX control. Currently it uses one channel to control volume output operation. Each channel has a value range of 0 to 255. Timer functions such as duration and interval can be programmed using the DMX controller or the DMX control software being used by lighting and effects operator. -
Page 11: Maintenance
Maintenance The Ice fogger requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 12: Product Specifications
Product Specification Model: Antari Ice Fogger Voltage: 230V-50Hz (CE) Power consumption: 1040W(230V) Fuse: F5A, 250V Warm-up time: approx. 4 min. Output: 230m /min. Tank capacity : 2,5 L Dimensions 618x355x360mm (LxWxH) Weight: 24,4 kg Design and product specifications are subject to change without prior notice. - Page 13 2009 Antari.
