Summary of Contents for Vision Fitness R2000

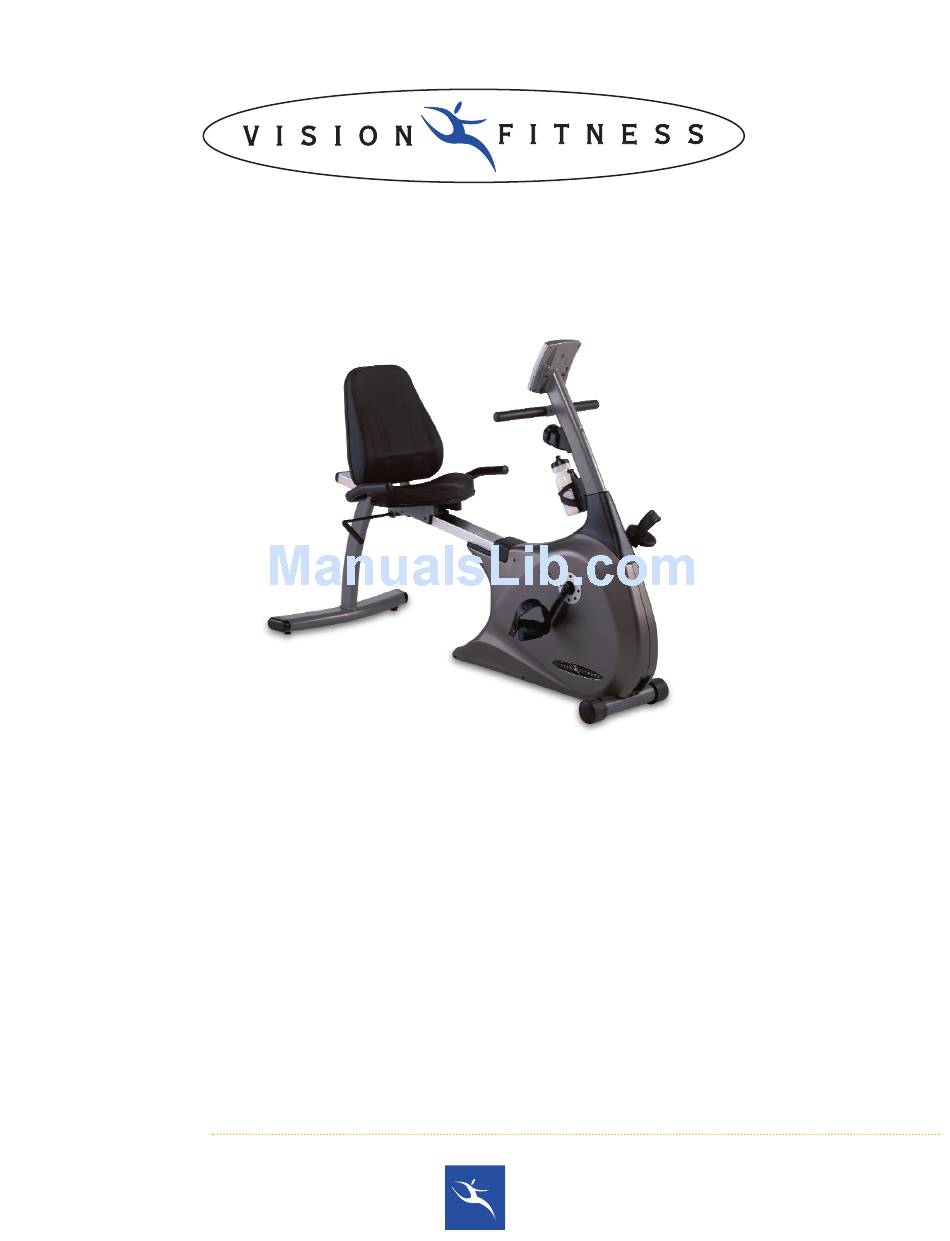

- Page 1 A s s e m b l y G u i d e R 2 0 0 0 S E M I - R E C U M B E N T F I T N E S S C Y C L E...
- Page 2 R 2 0 0 0 semi-recumbent fitness cycle To avoid possible damage to this Fitness Cycle, please follow these assembly steps in the correct order. Before proceeding though, find your new Fitness Cycle’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and also enter this serial number on your Warranty Card and in your own records.
- Page 3 TOOLS & PARTS INCLUDED Allen Wrench Pedal Wrench Screwdriver L-Shaped Wrench PARTS BOX Console Mast Cover, Qty: 1 Pedals, Qty: 2 Seat Rail Cover, Qty: 1 Tension Knob and bracket, Qty: 1 Water Bottle and Cage, Qty: 1 Water Bottle Bracket, Qty: 1 Parts Bags Assembly Guide Owner’s Manual...
-
Page 4: Hardware Included
HARDWARE INCLUDED ORANGE BAG PINK BAG M8 x 15L Screw M8 Lock Washer M8 Lock Washer M8 x 15L Screws Quantity: 4 Quantity: 4 Quantity: 4 Quantity: 4 BLUE BAG M6 x 55L Screws Quantity: 8 M6 Lock Washer Quantity: 8 M8 x 15L Screw M8 Lock Washer Quantity: 3... - Page 5 ORANGE BAG STEP • Slide the seat frame onto the seat rail. • Connect the rail support to the bottom of the seat rail. Attach with four screws (M8x15L) and four lock washers (M8). Tighten with the 5 Allen wrench. STEP BLUE BAG STEP...
- Page 6 PINK BAG STEP • Put the seat handlebar onto the seat frame. Attach with four screws (M8x15L) and four lock washers (M8), using the 5 Allen wrench. • Secure the seat cushions to the seat frame by inserting the eight screws (M6x55L) and eight lock washers (M6).
- Page 7 GREEN BAG STEP • Slide the mast cover onto the console mast. • With the included wire tie, pull the console cable and sensor wire through the console mast. Place the console mast into the console mast mounting bracket. Secure the mast to the bracket with 5 screws (M8x15L) and lock washers (M8) and tighten Allen wrench.
- Page 8 15 pedal wrench. 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2001 Vision Fitness. All Rights Reserved. 5.01 Part #Z20RB44-AG1809PRD AG18.09PRD REV2...
