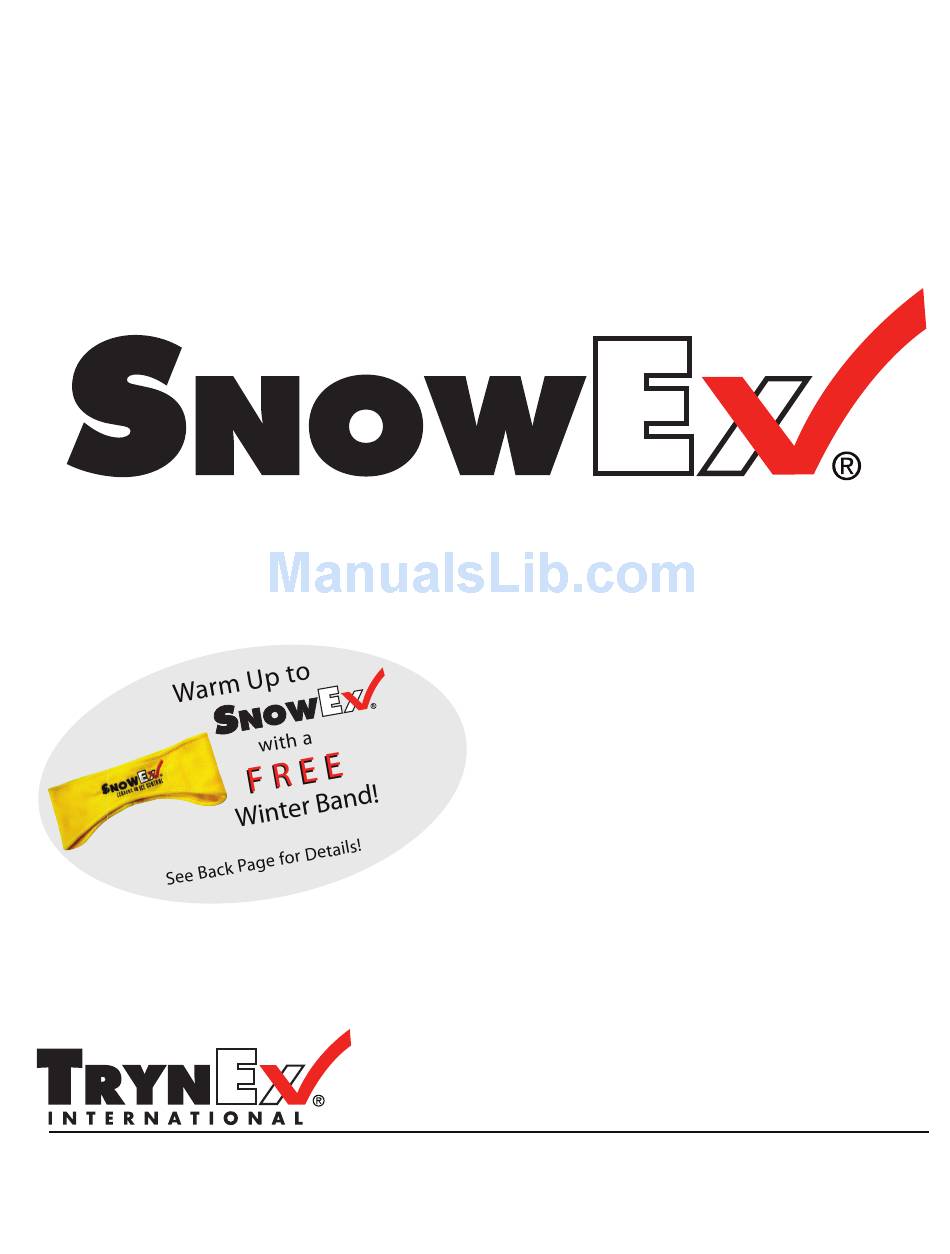

SnowEx SP-9300 Operator's Manual

Spreaders for snow & ice control

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

This Manual Must Be Read Before Operating The Equipment

Owner / Operator's Manual

Warren, Michigan 48089

800-725-8377

(REV 001)

Spreaders for Snow & Ice Control

L1218

Protected by the following patents, #6,089,478, #6,088,865, #Des.425,915

and other pending U.S. and foreign patent applications.

FOR MODEL

SP-9300

CUSTOMER COPY

MAX— 1

Table of Contents

Need help?

Do you have a question about the SP-9300 and is the answer not in the manual?

Questions and answers

Summary of Contents for SnowEx SP-9300

Page 1 This Manual Must Be Read Before Operating The Equipment Owner / Operator’s Manual Spreaders for Snow & Ice Control FOR MODEL SP-9300 CUSTOMER COPY Protected by the following patents, #6,089,478, #6,088,865, #Des.425,915 Warren, Michigan 48089 and other pending U.S. and foreign patent applications.
Page 2: Table Of Contents
Warranty ..................38 - 39 Have a question or need assistance? SnowEx Customer Service (800) 725-8377...
Page 3: Introduction
Introduction This manual has been designed for your help. It will assist you and instruct you on the proper set-up, installation and use of this spreader. Refer to the table of contents for an outline of this manual. We require that you read and understand the contents of this manual completely (especially all safety information) before attempting any procedure contained herein.
Page 4: General Information And Registration
Trynex products. Here’s why... SIMPLICITY: Fewer moving parts manufactured of higher quality means minimal maintenance for your SnowEx spreader. RELIABILITY: High impact linear low density polyethelyne hopper, state-of-the-art electronic dual variable speed control, custom engineered powder coated frame, maximum torque 12 volt motor coupled to a custom engineered transmission found only on SnowEx products.
Page 5: Safety Information
Safety Before attempting any procedure in this book, these safety instructions must be read and understood by all workers who have any part in the preparation or use of this equipment. For your safety warning and information decals have been placed on this product to remind the operator of safety precautions .
Page 6 Safety Always inspect pins and latches whenever attaching or detaching spreader, and before traveling. Never leave material in hopper for long periods of time. Be aware that all ice melters are hygroscopic and will attract atmospheric moisture and harden up. Remember, most accidents are preventable and caused by human error.
Page 7 Safety and Warning Labels Model # SP-9300 SERIAL NUMBER ON REVERSE SIDE D 6546 D 6859 D 6545 D 6544 D 6335 D 6548 © Trynex International 2009 L1218 MAX— 7...
Page 8: Spreader Assembly And Exploded Views

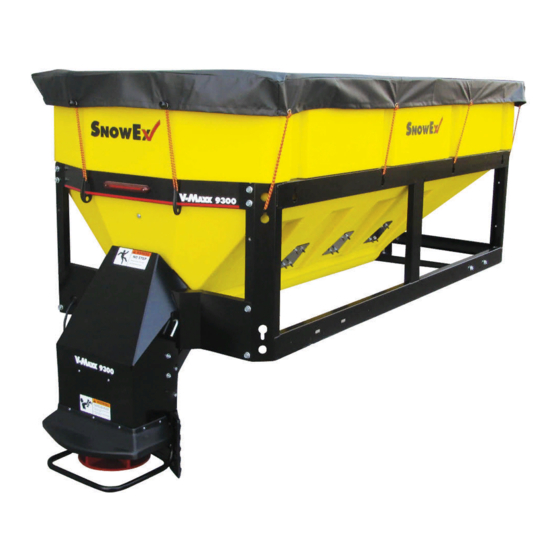

V-Maxx SP-9300 Component Assembly Views Auger Drive Assembly Spinner Drive Assembly Electrical System Assembly Hopper Assembly Frame Assembly MAX— 8 L1218 © Trynex International 2009...
Page 11 Auger Drive Assembly Parts Breakdown Model # SP-9300 . y t D6881 Rear Spinner Drive Mount D6814 Rear Bearing Cover Plate D6528 1/2”-13 Serrated Hex Head Bolt D6132 1/4”-20 x 3/4” Hex Head Bolt D5706 5/16-18 Serrated Flange Nut D6159 10-32 x 2”...
Page 13 Spinner Drive Assembly Parts Breakdown Model # SP-9300 . y t D6817 Spinner Shroud D6563 20” Drive Mounting Pin Drive Pin Clip D4135 5-16”-18 x 1-1/2” Bolt D6524 Spinner Power Plug D6893 D6887 Direct Drive Spinner Motor 3/16” Long Rivet D6333 5”...
Page 15 Hopper Assembly Parts Breakdown Model # SP-9300 . y t 6799 9300 Hopper 6795 Top Screen Front Section Top Screen Rear Section D 6892 D 6866 Top Screen Hinge Pin Top Screen Hinge Pin Clip D 4134 1/4” x 1-1/2” Self Drilling Screw...
Page 17 Frame Assembly Parts Breakdown Model # SP-9300 Description Qty. D 6797 9300 Frame Weldment D 6765 Upper/Lower Front Rail D 6884 Auger Motor/Transmission Support Rear Apron With Light Hole Knock Outs D 6880 D 6528 1/2”-13 x 1” Serrated Hex Head Bolt...
Page 18: Wiring Instructions
It is not recommended to attach to fuel or brake lines for obvious reasons. Do not route close to exhaust system or engine, even though Snowex uses high temperature wiring. It still could melt under extreme heat and short the spreader electrical system, as well as the vehicle electrical system.
Page 19: Electrical System Information
Electrical System Parts Breakdown Model # SP-9300 IMPORTANT: In the o season remove control and put in a cool dry place. The interior summer temperatures could damage circuit board and void warranty. IMPORTANT: Do not modify harness length. Any modi cations will void warranty.
Page 20 Controller Wiring Diagram Model # SP-9300 Auger Auger Black Negative (–) Red Positive (+) 20 Amp Circuit Breaker Black Pre-Wetting System OUTPUT Negative (–) Output Data Port Spinner Red Positive (+) Spinner Black Negative (–) Vibrator Vibrator Red Positive (+) Black Negative (–)
Page 21 Spreader Power Harness Circuit Diagram Model # SP-9300 SPINNER Red Positive (+) SPINNER Black Negative (–) AUGER VIBRATOR Red Positive (+) Red Positive (+) VIBRATOR AUGER Black Negative (–) Black Negative (–) MAIN POWER PLUG SPREADER Positive (+) Black Negative (–) Black Negative (–)
Page 22 Vehicle Harness Circuit Diagram Model # SP-9300 CONTROL OUTPUT PLUG AUGER BUMPER SPINNER/VIBRATOR CIRCUIT PLUG Anderson CIRCUIT Anderson OUTPUT Block Block (2) Pos (4) Pos VIBRATOR Green Negative (–) VIBRATOR OUTPUT Yellow Positive (+) VIBRATOR Yellow Positive (+) Positive (+)
Page 23: Spreader Mounting System
Mounting System Illustrations Model # SP-9300 Figure 1 Rear Stop LT & RT Bolt Though Body Floor Figure 2: Frame Mounting Bolts . y t i r c i t p D 6756 Adj. Stop Bracket Rt Rear D 6755 Adj.
Page 24 Mount Kit Mounting Instructions Model # HMK-175 Step 1: For dump trucks remove tailgate, and for platform bodies remove rear racks. Step 2: Load spreader on to truck bed and mount spinner assembly. Step 3: Slide spreader forward until de ector/chute assembly makes contact with vehicle. Then, slide spreader back approx. 1" to allow for proper clearance.
Page 25 Mounting Instructions Model # SP-9300 Recommended Installation For Platform Bodies Through Floor Chain Tie Downs (6) Places Weld On Stake Pockets (6) Places. MAX— 25 L1218 © Trynex International 2009...
Page 26: Spreader Operating Information
Operating the Spreader Model # SP-9300 PREPARATION CAUTION – Sweep area clear of foreign objects or obstacles that could cause personal injury. Keep other persons, children, or animals our of the area to be spread. SPREADER LOADING WARNING – Do not overload vehicle. Use chart below to calculate weight of material. Weights of material are an average for dry materials.
Page 27 Operating the Spreader (continued) Model # SP-9300 WARNING PROTECTION If audible beeping occurs, read display to identify problem. If display reads “OL” (overload) or “OH” (overheat), shut controller down and carefully clear jammed auger. If display reads “E1“ this means there is a dead short in system. Do not use until problem is corrected.
Page 28 D6889 BAFFLE INSTRUCTIONS The V-Maxx SP-9300 uses a dual ba e design over the auger area. This ba e (D6889) is used for dry bulk materials. The ba e is designed to reduce the risk of leakage with clean/dry free- owing materials.
Page 29 Discharge Ba e Extension Instructions Model # SP-9300 BAFFLE EXTENSION INSTRUCTIONS The Ba e Extension (D6776) is intended to be used with very dry products that free- ow with little e ort. The ba e is designed to keep these types of materials from leaking out.
Page 30 Center High Mount Stop Lamp (CHMSL) Model # SP-9300 With spreader mounted on vehicle, plug vehicle (CHMSL) harness into spreader stop lamp harness. Using supplied harness clamps and screws, route harness along side wall lower corner or so that harness will be out of the way when spreader is in use.
Page 31: Troubleshooting Information
Model # SP-9300 Whenever service is necessary, your local SnowEx Dealer knows your Spreader best. Take your Spreader to your local dealer for any maintenance or service needs on your unit. If this is not possible, the Troubleshooting Guide below may assist you in identifying the problem.
Page 32 Troubleshooting Model # SP-9300 CONTROLLER TURNS ON DEFINITION: SWITCH OFF & ON SPREADER OL CODE JAMMED MATERIAL CLEAR JAM BEEP SHUTS OFF AMP DRAW FOR AUTO-REVERSE DOES NOT RUN DISPLAYS ERROR CODE TOO HIGH FUNCTION BAD MOTOR TEST 4 TO 20 AMP DRAW...
Page 33 Troubleshooting Material Flow Model # SP-9300 MATERIAL CHECK BAFFLE 18" CORRECT MATERIAL ISSUE FREE FLOWS LENGTH SHOULD TOUCH CHECK BAFFLE MATERIAL ISSUE HOPPER ON 3 SIDES POSITION MATERIAL MATERIAL REMOVE MATERIAL ISSUE DOES NOT FLOW OBSTRUCTION OBSTRUCTION RUN 12 VOLT TO...
Page 34: Spreader Maintenance
Spreader Maintenance Model # SP-9300 WARNING – When servicing is necessary, perform it in a protected area. Do not use power tools in rain or snow because of danger of electrical shock or injury. Keep area well lighted. Use proper tools. Keep the area of service clean to help avoid accidents.
Page 35: Determine Vehicle Payload Chart
Useful Formulas Determining Vehicle Payload Example: Material Type Coarse Salt – Dry 6'/8' Vee Pro Equipment installed when vehicle SP-9300 was weighed Front Gross Axle Weight Rating (RGAWR) Rear Vehicle Weight Rating 8600 (GVWR) (lb.) – – – Gross Vehicle Weight (GVW) (lb.) (empty) –...
Page 37 NOTES: ______________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ © Trynex International 2009 L1218 MAX — 37...
Page 38: Warranty
Neither Snowex, nor any company a liated with it, makes any warranties, representations for promise as to the performance or quality other than what is herein contained. The liability of Snowex to the purchaser for damages arising out of the manufacture, sale, delivery, use or resale of this spreader shall be limited to and shall not exceed the costs of repair or replacement of defective parts.
Page 39 Warranty Registration and Customer Survey To initiate the warranty on your new SnowEx spreader and assure prompt warranty service, please complete the following warranty registration and customer survey, sign and mail it back to the factory within 30 days of purchase.
Page 40 Warm Up to with a F R E E F R E E Winter Band! Simply Fill Out Your Warranty Registration and Return It to the Factory! From: Postage Required Post O ce will not deliver without proper postage. 23455 REGENCY PARK DR. WARREN MI 48089-2667...
