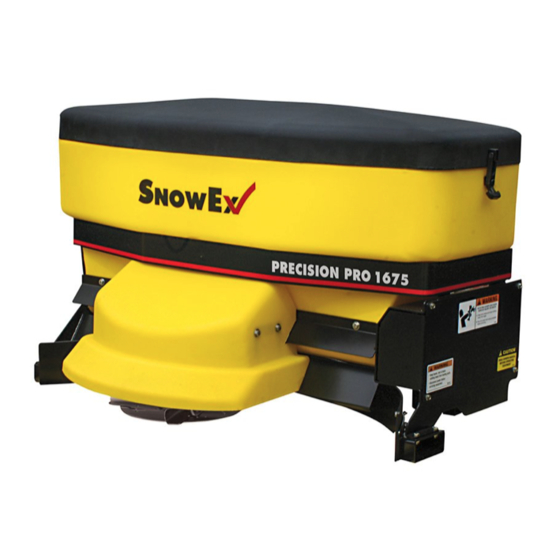

Precision Pro Spreader
SP-1675
Owner's Manual
Original Instructions
Read this document before operating or
servicing spreader.
This Owner's Manual is for SP-1675 Precision Pro spreaders
with serial numbers X4-100000 to X4-999999,
and serial numbers beginning with 150918 and higher.
This document supersedes all editions with an earlier date.
CAUTION
January 15, 2023
Lit. No. 70691, Rev. 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-1675 and is the answer not in the manual?

Questions and answers

Related Manuals for SnowEx SP-1675

Summary of Contents for SnowEx SP-1675

  • Page 1 CAUTION Read this document before operating or servicing spreader. This Owner's Manual is for SP-1675 Precision Pro spreaders with serial numbers X4-100000 to X4-999999, and serial numbers beginning with 150918 and higher. This document supersedes all editions with an earlier date.
  • Page 2 Lit. No. 70691, Rev. 03 January 15, 2023...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PREFACE ..............4 MOUNTING THE SPREADER ....... 11 Owner's Information ..........4 Attaching to Vehicle ..........11 SAFETY ..............5 OPERATING THE SPREADER ......12 Safety Definitions ..........5 Powering the Control .......... 12 Warning/Caution Labels ........5 Starting and Stopping Spreader ......

  • Page 4: Preface

    PREFACE This manual has been prepared to acquaint you with When service is necessary, bring your tailgate the safety information, operation, and maintenance of spreader to your distributor. They know your spreader your new tailgate spreader. Please read this manual best and are interested in your complete satisfaction.

  • Page 5: Safety

    SAFETY SAFETY DEFINITIONS WARNING/CAUTION LABELS Become familiar with and inform users about the WARNING warning and caution labels on the spreader. Indicates a potentially hazardous situation that, if not avoided, could result in death or NOTE: If labels are missing or cannot be read, see serious personal injury.

  • Page 6: Serial Number Label

    SAFETY SERIAL NUMBER LABEL (PLATE) SERIAL NUMBER LABEL (CONTROL) Madison Heights, MI 48071 U.S.A. 1-800-725-8377 trynexfactory.com Model No. SP-1675 Code Definition Serial No. YYMMDDLLXXXXZZZZZZ 2-Digit Year 2-Digit Month 2-Digit Day Manuf. 2017 2-Digit Location Code XXXX 4-Digit Sequential Number ZZZZZZ 5- to 7-Digit Assembly PN Lit.

  • Page 7: Safety Precautions

    SAFETY SAFETY PRECAUTIONS CAUTION • Do not operate a spreader in need of Improper installation and operation could cause maintenance. personal injury and/or equipment and property • Before operating the spreader, reassemble damage. Read and understand labels and the any parts or hardware removed for cleaning Owner's Manual before installing, operating, or or adjusting.

  • Page 8: Fire And Explosion

    SAFETY FIRE AND EXPLOSION NOISE Airborne noise emission during use is below 70 dB(A) WARNING for the spreader operator. Gasoline is highly flammable and gasoline vapor is explosive. Never smoke while VIBRATION working on vehicle. Keep all open flames away from gasoline tank and lines. Wipe up Operating spreader vibration does not exceed 2.5 m/s any spilled gasoline immediately.

  • Page 9: Loading

    (in) (in) (lb) (in) (in) SP-1675 49-1/2 Leave the screen in the hopper when loading the spreader to prevent large chunks of material and large objects from entering the hopper and damaging the spreader. Lit. No. 70691, Rev. 03 January 15, 2023...

  • Page 10: Determining Vehicle Payload

    LOADING DETERMINING VEHICLE PAYLOAD 4. With the occupants in the vehicle for normal spreader operation, weigh the vehicle to obtain gross vehicle weight (GVW). WARNING 5. Subtract the GVW from the GVWR to determine Overloading could result in an accident or the available material payload.

  • Page 11: Mounting The Spreader

    Secure with hitch clip. Plug in and begin spreading. If you are using a TPR-020-1 Hitch Adapter (not included with the SP-1675 spreader): Insert the hitch into the receiver. Lock with the hitch pin and clip (included with PN TPR-020-1). Plug the spreader harness in to the vehicle plug.

  • Page 12: Operating The Spreader

    OPERATING THE SPREADER – CONTROL Adjust SPINNER and AUGER speeds with the two WARNING knobs. Speed will be displayed on the screens. Adjust Never operate equipment when under the to get the desired spread width and application rate or influence of alcohol, drugs, or medications that "Spread Pattern."...

  • Page 13: Spreading Tips

    OPERATING THE SPREADER SPREADING TIPS For consistency in spreading results, it is best to drive at a constant speed. • Spread ice melters with the storm to prevent The spinner speed changes the spread width. This unmanageable levels of ice. determines how much area the same material fed by the auger will cover.

  • Page 14: Adjustable Material Baffles

    OPERATING THE SPREADER ADJUSTABLE MATERIAL BAFFLES The Precision Pro spreader is equipped with adjustable material baffles inside the hopper. These baffles restrict the flow of salt to the auger. Leave these baffles at the factory setting until you have run some material through the spreader at different combinations of auger and spinner speeds.

  • Page 15: Adjustable Spinner

    OPERATING THE SPREADER ADJUSTABLE SPINNER The spreader is equipped with an adjustable spinner to assist in more precise material application. The spinner plate gives the operator control of whether the material spreads to the right, left, or is centered. Before operating the spreader, spread some material in a clear area where the spread pattern can be easily observed to see how it changes with fin adjustment.

  • Page 16: Maintenance

    MAINTENANCE salt removal product or spraying your spreader with WARNING a cleaning solution before rinsing. Rinse all cleaning Never remove the spreader with material in solutions off thoroughly with water. the hopper. Sweep puddles of water from surfaces of the spreader.

  • Page 17: At End Of Each Season Or Extended Storage

    MAINTENANCE & ELECTRICAL COMPONENTS AT END OF EACH SEASON OR STORE THE SPREADER EXTENDED STORAGE WARNING CAUTION Never remove the spreader with material in DO NOT leave unused material in the hopper. hopper. Material can freeze or solidify, causing unit to not work properly. How the spreader is stored can have a lot to do with Empty and clean after each use.

  • Page 18: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Before servicing the spreader: TROUBLESHOOTING • Review all safety information. Please see your authorized dealer for service. The • Confirm that all electrical connections are tight troubleshooting reference table below may guide you and clean. in diagnosing the issue. •...
  • Page 19 TROUBLESHOOTING GUIDE TROUBLESHOOTING (Continued) Control Problem Possible Cause Suggested Solution Jammed material. Engage Auto-Reverse. Turn OFF vibrator (if on). Auger over-full. Engage Auto-Reverse. Adjust baffles to restrict flow. Foreign object in hopper. Remove object. Frozen material. Shovel frozen material out. Use shovel or snow brush to clear Material on spinner at start-up.
  • Page 20 U.S. patents: 7,400,058; 7,737,576, and other patents pending. TrynEx International offers a limited warranty for all spreaders and accessories. See separately printed page for this important information. The following is a registered ( ) trademark of Douglas Dynamics, LLC: SnowEx ®...
