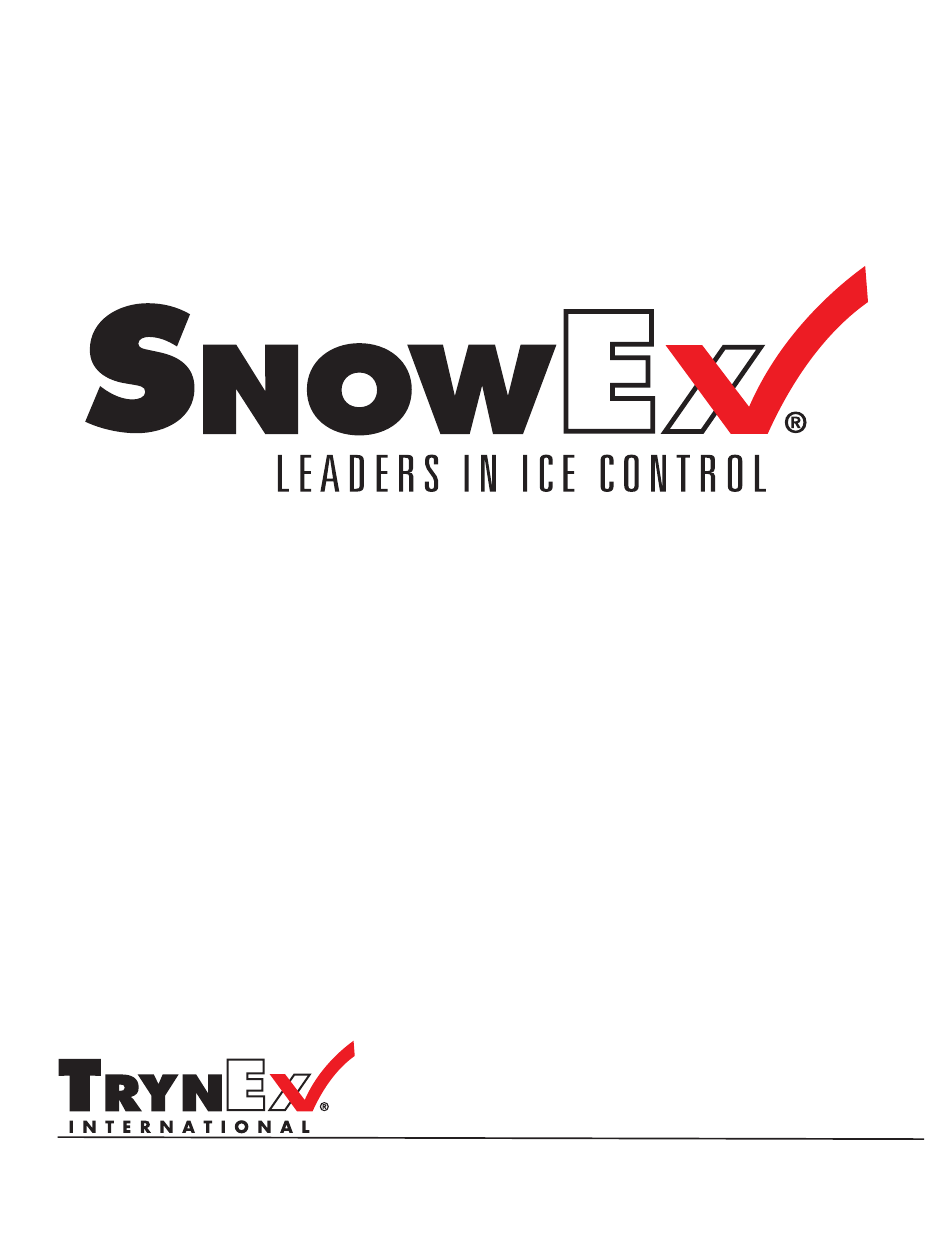

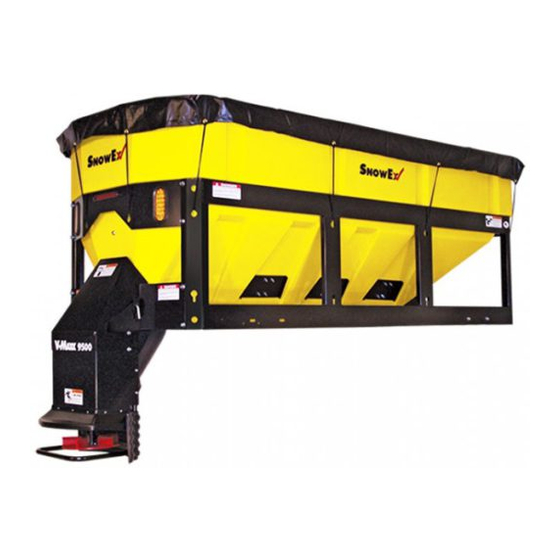

This Manual Must Be Read Before Operating The Equipment
Owner / Operator's Manual
FOR MODEL:
SP-9500X
Serial # M2-100000 and higher
Customer Copy
Madison Heights, Michigan 48071
800-725-8377
www.snowexproducts.com
1
© Trynex International 2012 (REV A) F50734

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-9500X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SnowEx SP-9500X

Summary of Contents for SnowEx SP-9500X

  • Page 1 This Manual Must Be Read Before Operating The Equipment Owner / Operator’s Manual FOR MODEL: SP-9500X Serial # M2-100000 and higher Customer Copy Madison Heights, Michigan 48071 800-725-8377 www.snowexproducts.com © Trynex International 2012 (REV A) F50734...

  • Page 2: Table Of Contents

    Control and Harness Diagram ................................14-19 Mounting Instructions .................................... 20-21 Troubleshooting ....................................22-23 Warranty ........................................24 Spreader Views Model # SP-9500X ..................................25 Frame Assembly Parts Breakdown Model # SP-9500X .................................. 26-27 Auger Drive Assembly Parts Breakdown Model # SP-9500X .................................. 28-29 Hopper Assembly Parts Breakdown Model # SP-9500X ..................................

  • Page 3: General Information

    RELIABILITY: High impact linear low density polyethelyne hopper. State-of-the-art electronic dual variable speed control, custom engineered powder coated frame, maximum torque 12-volt motor coupled to a custom engineered transmission; found only on SnowEx products. VERSATILITY: Multi-use capabilities allows spreading of a variety of materials for snow and ice control.

  • Page 4: Introduction

    Introduction This manual has been designed for your help. It will assist you and instruct you on the proper set-up, installation and use of this spreader. Refer to the table of contents for an outline of this manual. We require that you read and understand the contents of this manual completely (especially all safety information) before attempting any procedure contained herein.

  • Page 5: Safety

    For your safety warning and information decals have been placed on this product to remind the operator of safety precautions . If anything happens to mark or destroy the decals, please request new ones from SnowEx. Never exceed the Gross Vehicle Weight Rating of vehicle. Failure to do so may limit a vehicles handling characteristics.

  • Page 6: Warning Decal Positions

    Warning Decal Positions Model # SP-9500X 4in x 2.25in D6192_Warning.ai ROTATING AUGER CAN CAUSE SERIOUS INJURY OR DEATH • Keep arms, hands, and loose clothing away from auger. • Shut off control and unplug spreader before servicing. D6335 7.25in w x 3.00in h D6335_Warning.ai...
  • Page 7 Warning Decal Positions Model # SP-9500X 4in x 2.25in D6194_Warning.ai ROTATING PARTS CAN CAUSE SERIOUS INJURY OR DEATH ROTATING AUGER CAN CAUSE • ALWAYS DISCONNECT POWER SERIOUS INJURY OR DEATH WHEN NOT IN USE • Keep arms, hands, and loose clothing away from auger.

  • Page 8: Operating The Spreader

    Operating the Spreader Model # SP-9500X SPREADER LOADING WARNING – Do not overload vehicle. Use chart below to calculate weight of material. Weights of material are an average for materials. Material Weight Per Cubic Ft. Rock Salt 80-90 lbs. Sand/Salt Mix 95-120 lbs.

  • Page 9: Operating The Spreader

    Operating the Spreader (continued) Model # SP-9500X WARNING PROTECTION • If audible beeping occurs, read display to identify problem. If display reads “OL” (overload) or “OH” (overheat), shut the controller down and carefully clear jammed auger. If display reads “E1” this means there is a dead short in the system. Do not use until problem is corrected. If the display reads “E0”...
  • Page 10 Operating the Spreader (continued) Model # SP-9500X ADJUSTABLE SPINNER INSTRUCTIONS Your spreader is equipped with an adjustable spinner to assist you in more precise material application. The Spinner plate gives the operator control of whether the material spreads to the right, left or is centered. All of the fins should be in the same position; this will keep the spread pattern consistent and have even ground coverage.
  • Page 11 Operating Spreader (continued) Model # SP-9500X INVERTED-V INSTRUCTIONS Inverted V Assembly • The Super-Maxx 9500 uses an “Inverted V” Baffle design over the auger area. This baffle reduces the load on the auger.The inverted V should not be removed unless servicing the unit.

  • Page 12: Spreader Maintenance

    Spreader Maintenance Model # SP-9500X • WARNING – When servicing is necessary, perform it in a protected area. Do not use power tools in rain or snow because of danger of electrical shock or injury. Keep area well lighted. Use proper tools. Keep the area of service clean to help avoid accidents.

  • Page 13: Wiring Instructions

    Wiring Instructions Model # SP-9500X 1. Mount rear plug bracket on back of vehicle using supplied bolts. Locate toward center of bumper as it will reduce the amount of tire- thrown debris that gets onto the plug. 2. Mount harness plug to rear plug bracket that was just installed. Apply a small amount of dielectric grease to plug.

  • Page 14: Control And Harness Diagram

    Control Diagram Model # SP-9500X F50543 Control Pendant IMPORTANT: In the off season remove control and put in a cool dry place. The interior summer temperatures could damage circuit board and void warranty. Control Module Parts Part No. Description Qty.
  • Page 15 Control Diagram Model # SP-9500X D6083 30 AMP Relay F50563 Red Wire (w/ Spade) “AUX RELAY” “AUX RELAY” Empty Brown Wire Brown/White Wire F50681 Wire from “BAT +” F50541 Spreader Control AUX RELAY VIBRATE Wire Connections Small Gray Plug: Plugged with Sealed Blank Connector GND -: Light Harness Black Wire;...
  • Page 16 Harness Diagram Model # SP-9500X D6514 Center High Mount Stop Lamp F50408 Spreader Harness Load View Black IMPORTANT: Do Not modify harness length. Any modifications will void warranty. Special Notes: 1) All external connections must have dielectric grease. 2) Read lead labels before attaching to power source or ground.
  • Page 17 Harness Diagram Model # SP-9500X F50409 Vehicle Harness 324” 318” Black LOAD VIEW F50534 Data Cable Load View Load View Black White Green None Green Orange White Black F50535 Vibrator Harness 83” 10.5” 0.75” 6.5” © Trynex International 2012 (REV A) F50734...
  • Page 18 Harness Diagram Model # SP-9500X F50536 Auger Motor Harness 120” 12” 5” F50537 Spinner Motor Harness 19” 1” 4” LOAD VIEW White Black F50540 Data Cable Load View Load View None Black Orange Green White Green White Black © Trynex International 2012 (REV A) F50734...
  • Page 19 Harness Diagram Model # SP-9500X F50563 Light Harness 9.5” 46.5” 4” 32.5” 8.5” 7.5” 6” F50564 Strobe Light Harness 48.5” 8” 1.25” LOAD VIEW Black © Trynex International 2012 (REV A) F50734...
  • Page 20 Mounting System Diagrams Model # SP-9500X Ratchet Strap Hardware Used to mount F50465 to Auger Extension Weldment. (See p. 32) Part No. Description D4116 Bolt | 1/2”-13 X 1-1/2” D4119 Washer | 1/2” Flat D4120 Nut | 1/2”-13 Nylox Rear stop bar, ratchet straps and mount kit must always F50465 Rear Stop Bracket be in place.

  • Page 21: Mounting Instructions

    Mounting Instructions Model # SP-9500X Step 1: If using pickup/dump body, remove tailgate. If using platform body, remove rear stake sides. Step 2: Load spreader onto truck bed. Step 3: Install Rear Stop Bracket (F50465) onto Auger Extension Weldment (see diagram p. 20) using provided hardware [D4119 x2; D4115 x2;...

  • Page 22: Troubleshooting

    Troubleshooting Model # SP-9500X CONTROLLER TURNS ON SWITCH OFF & ON DEFINITION: SPREADER DOES NOT RUN BEEP SHUTS OFF “OL” CODE JAMMED MATERIAL FOR AUTO-REVERSE CLEAR JAM AMP DRAW TOO HIGH DISPLAYS ERROR CODE FUNCTION BAD MOTOR TEST 4 TO 20 AMP DRAW...

  • Page 23: Troubleshooting

    REVERSE POLARITY HARNESS SLOW MATERIAL FLOW TURN ON VIBRATOR INCREASE AUGER SPEED MATERIAL ISSUE Snowex Diagnostic Test Kit (STK-090) Is Available To Accurately Diagnose Any Issues With Snowex Spreaders. Call Your Dealer For Details. © Trynex International 2012 (REV A) F50734...

  • Page 24: Warranty

    Neither Snowex, nor any company a liated with it, makes any warranties, representations for promise as to the performance or quality other than what is herein contained. The liability of Snowex to the purchaser for damages arising out of the manufacture, sale, delivery, use or resale of this spreader shall be limited to and shall not exceed the costs of repair or replacement of defective parts.

  • Page 25: Spreader Views

    Spreader Views Model # SP-9500X Driver’s Side Passenger’s Side © Trynex International 2012 (REV A) F50734...

  • Page 26: Frame Assembly Parts Breakdown

    Frame Assembly Parts Breakdown Model # SP-9500X Ratchet Straps...Part No. F50600 © Trynex International 2012 (REV A) F50734...
  • Page 27 Frame Assembly Parts Breakdown Model # SP-9500X BOM ID Description D6528 D6879 D6880 D6882 D6884 © Trynex International 2012 (REV A) F50734...

  • Page 28: Auger Drive Assembly Parts Breakdown

    Auger Drive Assembly Parts Breakdown Model # SP-9500X © Trynex International 2012 (REV A) F50734...
  • Page 29 Auger Drive Assembly Parts Breakdown Model # SP-9500X BOM ID Description BOM ID Description D5382 D6894 D5535 D7163 D5706 F50247 D5753 F50509 D6752 F50510 D6868 F50513 F50514 D6872 D6873 F50587 D6884 © Trynex International 2012 (REV A) F50734...

  • Page 30: Hopper Assembly Parts Breakdown

    Hopper Assembly Parts Breakdown Model # SP-9500X Hopper Cover...Part No. D6883 © Trynex International 2012 (REV A) F50734...
  • Page 31 Hopper Assembly Parts Breakdown Model # SP-9500X BOM ID Description BOM ID Description D4121 D6874 D4125 D6888 D6509 D6889 D6584 D6890 D6811 D6892 D6815 D6898 D6853 D6899 D6860 F50532 D6866 © Trynex International 2012 (REV A) F50734...

  • Page 32: Auger Extension Assembly Parts Breakdown

    Auger Extension Assembly Parts Breakdown Model # SP-9500X © Trynex International 2012 (REV A) F50734...
  • Page 33 Auger Extension Assembly Parts Breakdown Model # SP-9500X BOM ID Description BOM ID Description D4115 F50367 D4119 F50368 D4135 F50393 D5382 F50407 D5535 F50465 D6132 F50488 D6452 F50489 F50518 D6528 F50365 F50587 F50366 © Trynex International 2012 (REV A) F50734...

  • Page 34: Drive Assembly Parts Breakdown

    Drive Assembly Parts Breakdown Model # SP-9500X © Trynex International 2012 (REV A) F50734...
  • Page 35 Drive Assembly Parts Breakdown Model # SP-9500X BOM ID Description BOM ID Description BOM ID Description D4135 D6453 F50394 D4289 D6584 F50405 D5022 D6854 F50407 D5248 D6887 F50441 D5293 F50316 F50517 D5527 F50318 T15018 T30207 D5535 F50366 D6133 F50371 T15132...

  • Page 36: Notes

    Notes © Trynex International 2012 (REV A) F50734...
  • Page 37 Notes © Trynex International 2012 (REV A) F50734...
  • Page 38 Notes © Trynex International 2012 (REV A) F50734...
  • Page 39 Notes © Trynex International 2012 (REV A) F50734...
