Tamerica TCC1200 Operation Manual

45” wide format hot and cold laminator
Hide thumbs Also See for TCC1200:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
45" Wide Format Hot and Cold Laminator

Advertisement

loading
Need help?

Need help?

Do you have a question about the TCC1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Tamerica TCC1200

Summary of Contents for Tamerica TCC1200

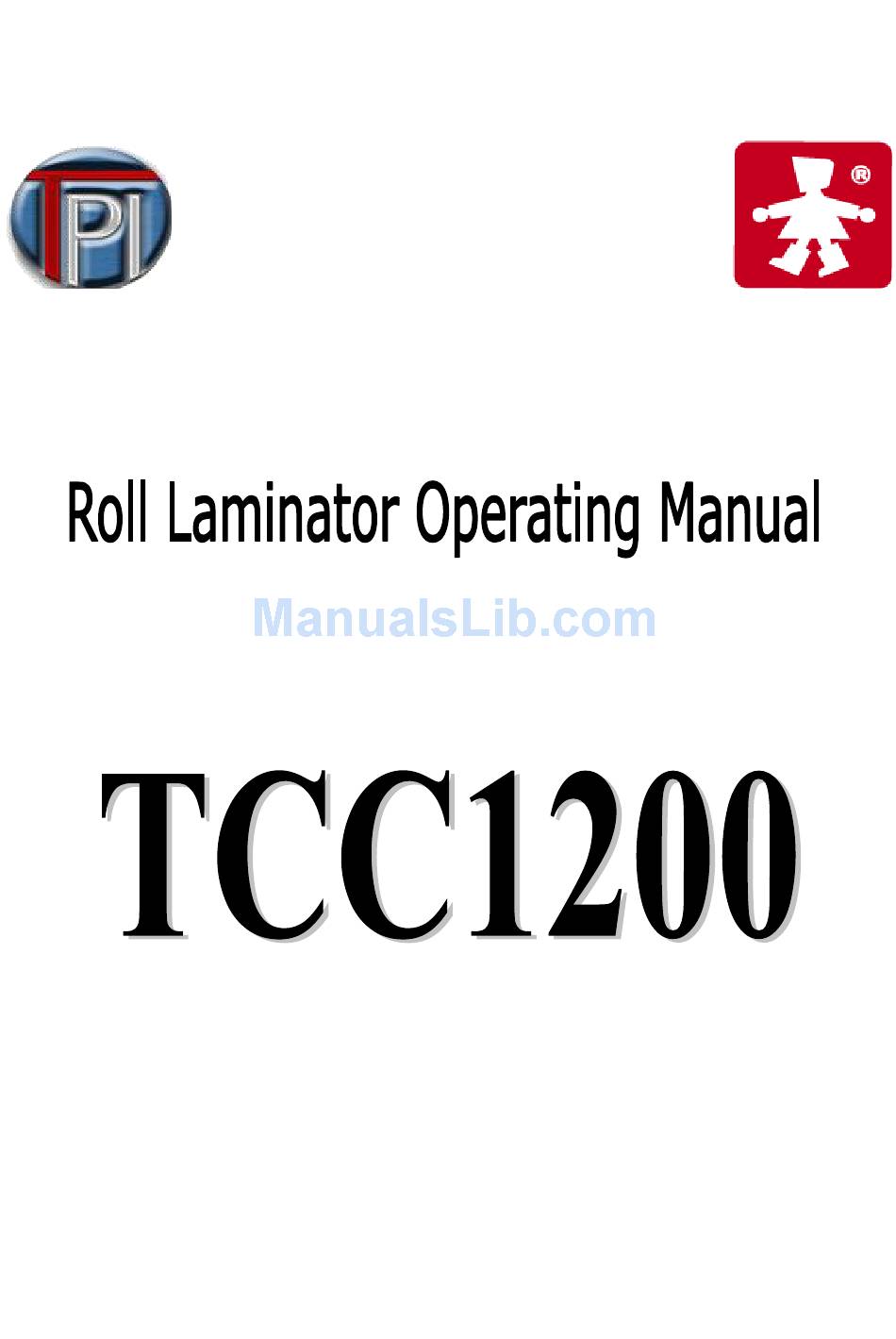

  • Page 1 45” Wide Format Hot and Cold Laminator...

  • Page 2: Important Safeguards

    OPERATING INSTRUCTIONS TCC1200 1 IMPORTANT SAFEGUARDS When using electrical machines, basic precautions should always be followed to reduce the risk of electric shock and injury to people, including the following: 1. Read all instructions. 2. Please not that this machine runs on 220V/50Hz with a rated current requirement of 12A~14A and comes with a 3 phase NEMA L21-20 AC plug.

  • Page 3: How To Use

    3 HOW TO USE A. LAMINATING FUNCTION (1) TWO-SIDED LAMINATION LOADING THE FILM This machine has the capability of loading laminating film with 1” cores and with 3” cores using the adapters on each side of the roll included. Unpack the upper and lower rods. Remove the feed tray. Slide the roll film onto the rods, leaving equal lengths of rod out of each end.
  • Page 4 common temperature/speed setting for typical uses. Wait another 10 ~12 minutes before starting the lamination job. Film Thickness Temperature Speed 1.5 Mil (38 Micron) 110°C (230°F) 3 Mil (75 Micron) 115°C (239°F) 5 Mil (125 Micron) 125°C (266°F) 10 Mil (250 Micron) 150°C (302°F) LAMINATING PROCEDURES 1.
  • Page 5 THREADING THE FILM Refer to threading diagram for one side lamination found on the machine’s right side panel. Do not mistake the reinforcing bar for the idler roller. 1. To thread the film through the “hot” rollers & “pull” rollers, please push the handle forward to release pressure on all the rollers.
  • Page 6 (3) COLD LAMINATION LOADING THE FILM Unpack the upper and lower supply rods. Install cold laminating film with liner on the upper rod by following an adapter---film----adapter sequence onto the rod and fit the adapters onto the paper core. Using the same installation sequence, install a Kraft paper roll of the same width as the top film onto the lower supply rod.
  • Page 7 LAMINATING PROCEDURES 1. Make sure the print is aligned and set properly onto the mounting board. 2. Release the handle from the locked position and insert the handle pin into the “MIN” notch to engage the rollers. The user can now start as the machine starts feeding in film. 3.
  • Page 8 C. SAFETY SHIELD AND FEED TRAY SENSORS Both the safety shield and feed tray activate sensors that allow the bottom roller to feed film when they are properly installed. Removal or misalignment of either or both of these items will cause the LED light to turn on and stop the rollers from feeding even when rollers are engaged.
  • Page 9 needed to be set for this application. Simply remove the liner from the board, carefully and evenly align the print and set it onto the adhesive side. The pressure applied by the rollers will enhance adhesion of the print onto the board. Please refer to instructions on how to apply prints on these types of boards that come with their packaging or consult with the mounting board supplier.
  • Page 10 H. AUTO SHUT-OFF FUNCTION This machine is equipped with an auto shutoff feature. The following is a step by step diagram of its operation: CONTROL PROCESS FOR AUTO SHUT OFF USER SETS MOTOR SPEED TO 0 STAGE 1 BY PRESSING AND HOLDING ARROW DOWN MOTOR BUTTON WHEN LEAVING THE MACHINE UNATTENDED...

  • Page 11: Care And Cleaning

    I. FILM SLITTER This machine is equipped with safety film slitter in the back of the machine for trimming film in between sheets of laminated material. Simply slide the cutting edge across the film to remove the finished material. J. EMERGENCY STOP BUTTONS In case of emergencies, press either front or back red emergency buttons to immediately stop the motor and turn off the machine.

  • Page 12: Warranty

    6 WARRANTY This machine is guaranteed against defects in materials and workmanship by the Manufacturer for a period of one (1) year from the date of original purchase from an authorized Distributor. This guarantee covers all defects incurred in the normal use of the equipment, except in the following cases: 1.
