TCC-1400F+ ASSEMBLY
A
B
C
D

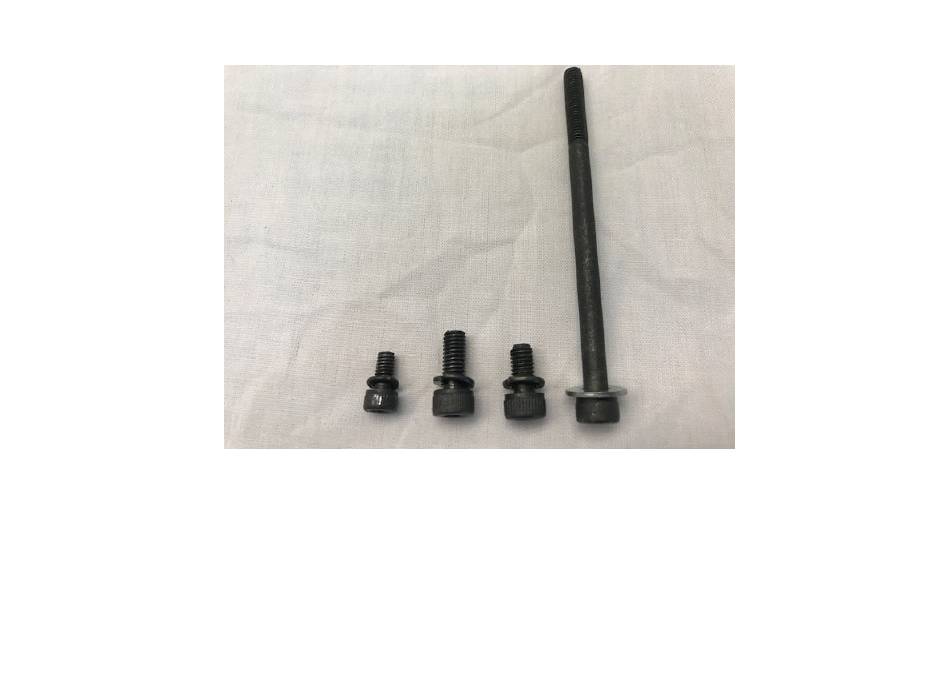

A – 6 pieces (Attaches left & right bracket to the laminator)
B – 2 pieces (Attaches idling bar to the left and right bracket)
C – 8 pieces (Stand assembly)
D – 4 pieces (Attaches stand to the laminator)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TCC-1400F+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tamerica TCC-1400F+

  • Page 1 TCC-1400F+ ASSEMBLY A – 6 pieces (Attaches left & right bracket to the laminator) B – 2 pieces (Attaches idling bar to the left and right bracket) C – 8 pieces (Stand assembly) D – 4 pieces (Attaches stand to the laminator)
  • Page 2 C – 8 PIECES Attached the 2 horizontal brackets to the left & right legs of the stand.
  • Page 3 1. Attach the horizontal brackets to the right leg first but don’t fully tighten the screws. 2. Attach the horizontal brackets to the left leg. 3. Tighten all screws.
  • Page 4 Screw “D” Bottom of laminator 1. Put the laminator on top of the stand. 2. Lightly attached all 4 screws first before tightening. Top of stand...
  • Page 5 Attach the right side then the left side before tightening all screws.
  • Page 6 Attach the right bracket to the right side of the laminator using screw “A”.
  • Page 7 Attach the left bracket to the left side of the laminator using screw “A”.
  • Page 8 Attach the idling bar to the left and right bracket using screw “B”.
  • Page 10 TCC-1400F+ PART MANUAL NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION 1 15C-M HEAT SINK (ALUMINUM) 53 RLM-50 FUSE SET 2 3H1-BP9-A ISOLATION_PAD 54 RLM-53-SR WIRE JACKET 3 3H1-D30 THERMO 55 RLM-54 4 3H1-D33 TEMPERATURE SENSOR_WITH_WIRE 56 RLM-55 5 3H1-P11 BAKELITE SHEET 57 RLM-60 FIXED POLE...
