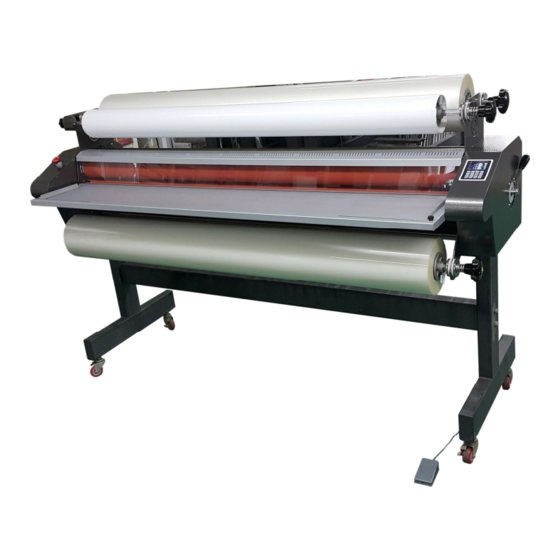

65” hot roll laminator
Hide thumbs Also See for TCC-1655HC:
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT !!!
It will be beneficial to first get yourself acquainted with the features of your TCC-
1655HC before attempting to use. Keep in mind all operational instructions, tips, and
safety reminders every time you use your machine to best achieve desirable results.
TCC-1655HC
65" Hot Roll Laminator
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCC-1655HC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tamerica TCC-1655HC

Summary of Contents for Tamerica TCC-1655HC

  • Page 1 TCC-1655HC 65” Hot Roll Laminator OPERATING MANUAL IMPORTANT !!! It will be beneficial to first get yourself acquainted with the features of your TCC- 1655HC before attempting to use. Keep in mind all operational instructions, tips, and safety reminders every time you use your machine to best achieve desirable results.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS FEATURES AND SAFETY INSTRUCTIONS Introduction……...……………………………………………………………………..……….…….3 Safety Precautions …...…..…….………………………………………………..…………………..3 Specifications …….….………….….. ………………………………………….……..……...….…...5 Product Identification ………….….…………………………………………….…………..…..5 OPERATION Machine Assembly & Installation ……………………………………………………………………7 Hot Lamination…...…. .…………………………………………………...…………….……..….13 Cold Lamination ……..………..……….……………………………………………………..…..14 Temperature and Speed Memory Settings …………………………………………………………..15 Roller Tension Settings ………..………………………………………………………………..…...15 MAINTENANCE, SERVICE AND WARRANTY Maintenance…….………………………….…………………………………………….……..…..16 Troubleshooting ………….……..……………………………………………………….…………..16 Warranty Information ………...……..…...….…….……………………………….………..…...…17...

  • Page 4: Introduction

    INTRODUCTION Thank you for choosing Tamerica’s TCC-1655HC Laminating Machine, designed to provide years of useful service for your lamination needs. Upon receipt, please in- spect the box/crate, the machine, and all other contents for any signs of shipping damage which should immediately be brought to the attention of the delivery carrier.

  • Page 5: Specifications

    SPECIFICATIONS MODEL TCC-1655HC Max. Laminating width 65" / 1650mm Max. Laminating speed 3mm / mins Max. Mounting tThickness 1/2” / 12 mm Heating system Heating Roller Number of Rollers Temperature control Speed control Display Warm-up Time 30 mins Power supply...
  • Page 6 CONTROL PANEL When the machine is powered on, the LCD window will display the last working pre- set memory setting. 1. TEMP : Top roller temperature 2. TEMP : Bottom roller temperature 3. SPEED ▲▼ : Variable speed from 1~9. 4.

  • Page 7: Machine Assembly & Installation

    ASSEMBLY & INSTALLATION Laminator Stand Support beam Left leg assembly Right leg assembly Insert the supplied allen screws through the holes to attach the support beam into one side of the stand. Repeat the process on the other side. Fully tighten with allen key only after all screws have been properly aligned and inserted.
  • Page 8 Before securing the laminator on the stand, take note the shorter span should be facing front while the longer span should be facing the rear. Insert the sup- plied phillips screw through the holes & tighten to secure the laminator onto the stand.
  • Page 9 Attach the bracket on the right-hand side of the machine using screws specific to their placement. Repeat the process on the left-hand side of the machine.
  • Page 10 Attach the bracket for the bottom supply roll by way of 2 phillips screws. This is on the left-hand side. Here’s another view. Here’s another view. Attach the bracket for the bottom supply roll on the bottom right-hand side. Notice the notch which is not present on for the bracket on the other side.
  • Page 11 Feed tray / table Install this way. Take note of the notches and where they rest. (next photo) View from underneath, left-hand side.
  • Page 12 View from underneath, right-hand side.

  • Page 13: Hot Lamination

    MACHINE OPERATION Hot Lamination 1. Load the film with the adhesive side facing the roll (adhesive in) onto the sup- plied mandrels. 2. Attach the mandrels to the top and bottom brackets then feed the film through the rollers following the guide below.

  • Page 14: Cold Lamination

    Cold Lamination Fig. 1 1. Turn the power switch on. It will be located at the back of the machine. 2. Remove the safety shield. 3. Remove the guide table. (see fig. 1) 4. Pull down the top film through the Idle Bar_Top and Fig.

  • Page 15: Temperature And Speed Memory Settings

    TEMPERATURE AND SPEED MEMORY SETTINGS The laminator has speed and temperature adjustability and can be programmed to store 2 values with speed and temperature settings of your choice using the M1 & M2 buttons. It can also be used for cold lamination by pressing the COLD button. How to change memory value: 1.

  • Page 16: Maintenance

    MAINTENANCE 1. Adjust to the adequate tension setting by way of the tension knob. If the tension is too tight, the film can get too stretched. 2. Disengage the rollers with Roller Gap Lever and adjust to Standby when not in use. This will help prevent the machine from overheating.

  • Page 17: Warranty Information

    (1) year from the date of original purchase from an authorized distributor of Tamerica Products, Inc. If you perceive or experience any issue with the machine, kindly re- port it to the distributor within 10 business days of said purchase to avail of free pickup and re- delivery from Tamerica’s Service Center.
