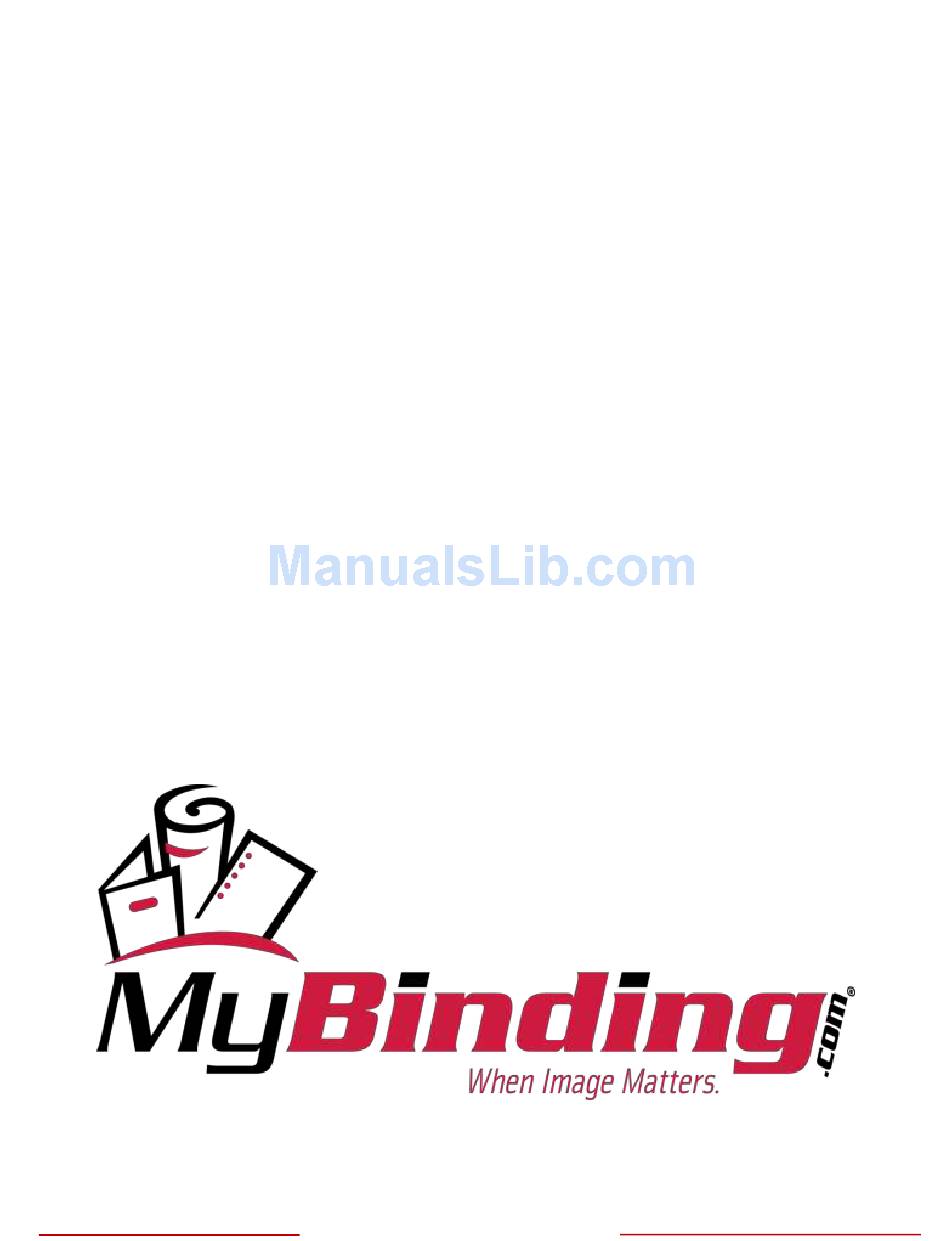

Tamerica TCC1200

Pouch Laminating

Machine

Instruction Manual

Provided By

http://www.MyBinding.com

http://www.MyBindingBlog.com

Table of Contents

Need help?

Do you have a question about the TCC1200 and is the answer not in the manual?

Page 1 Tamerica TCC1200 Pouch Laminating Machine Instruction Manual Provided By http://www.MyBinding.com http://www.MyBindingBlog.com...
Page 2 TCC-1200 OPERATION MANUAL .MACHINE SPECIFICATIONS Ⅰ ： (1) POWER REQUIREMENT 220V/50HZ ： (2) RATED CURRENT 12A~14A ： (3) CONSUMPTION POWER 3000W ： .FUNCTIONS AND OPERATION INSTRUCTIONS Ⅱ (1) HOT LAMINATION ： a. Use hot laminating film, Feed the film onto the rods as picture (A).
Page 3 WARNING: Shutting down the machine before reaching 50 ℃ does serious and permanent damage to the rollers, voiding all warranty. (2) COLD LAMINATION ： a. Use cold laminating film. b. Fix the leading edge of release liner on the receiving roller by using a tape.
Page 4 (4) STEP MOTION: (a) When the motor speed on the control panel is “0”: The motor will run if you step on the pedal. The motor will stop running once your foot leaves the pedal. (b)When the motor speed on the control panel is not “0”: It means that the motor runs according to the speed you set.
