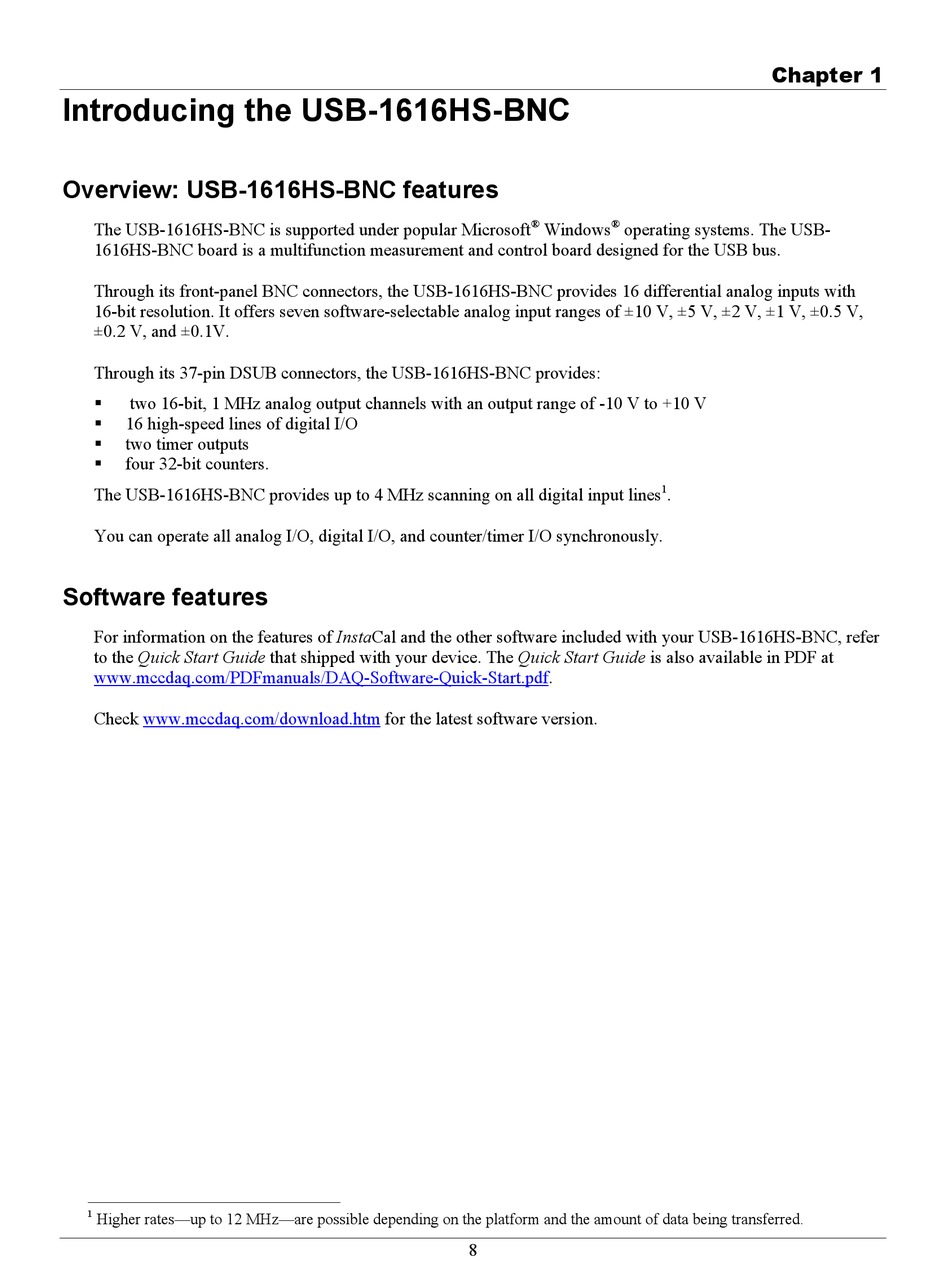

Introducing the USB-1616HS-BNC

Overview: USB-1616HS-BNC features

The USB-1616HS-BNC is supported under popular Microsoft
1616HS-BNC board is a multifunction measurement and control board designed for the USB bus.
Through its front-panel BNC connectors, the USB-1616HS-BNC provides 16 differential analog inputs with
16-bit resolution. It offers seven software-selectable analog input ranges of ±10 V, ±5 V, ±2 V, ±1 V, ±0.5 V,
±0.2 V, and ±0.1V.
Through its 37-pin DSUB connectors, the USB-1616HS-BNC provides:
 two 16-bit, 1 MHz analog output channels with an output range of -10 V to +10 V
 16 high-speed lines of digital I/O
 two timer outputs
 four 32-bit counters.
The USB-1616HS-BNC provides up to 4 MHz scanning on all digital input lines
You can operate all analog I/O, digital I/O, and counter/timer I/O synchronously.

Software features

For information on the features of InstaCal and the other software included with your USB-1616HS-BNC, refer
to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf.
Check www.mccdaq.com/download.htm
1
Higher rates—up to 12 MHz—are possible depending on the platform and the amount of data being transferred.
®
