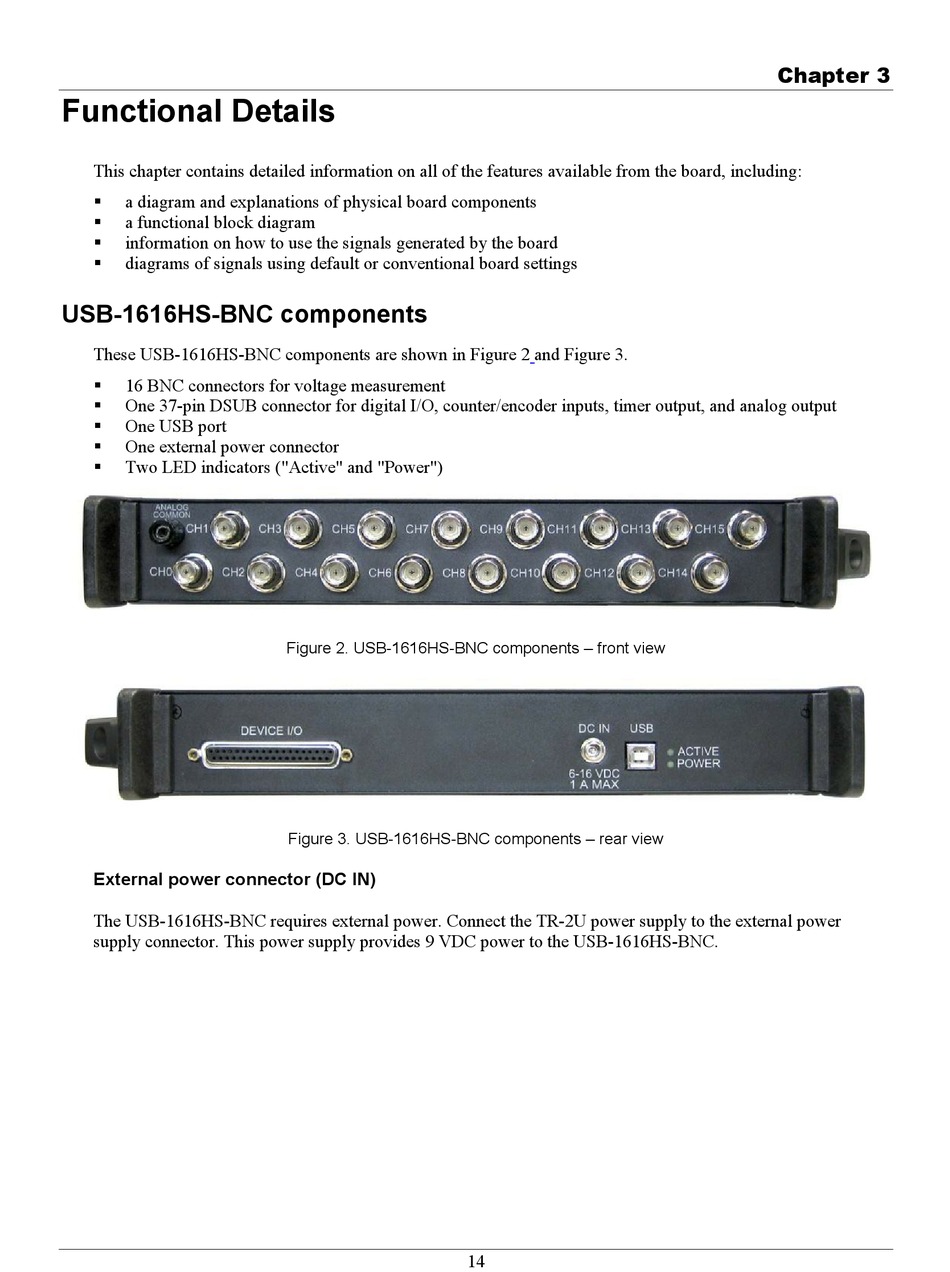

Functional Details

This chapter contains detailed information on all of the features available from the board, including:
 a diagram and explanations of physical board components
 a functional block diagram
 information on how to use the signals generated by the board

diagrams of signals using default or conventional board settings

USB-1616HS-BNC components

These USB-1616HS-BNC components are shown in Figure 2 and Figure 3.
 16 BNC connectors for voltage measurement
 One 37-pin DSUB connector for digital I/O, counter/encoder inputs, timer output, and analog output
 One USB port
 One external power connector

Two LED indicators ("Active" and "Power")
External power connector (DC IN)
The USB-1616HS-BNC requires external power. Connect the TR-2U power supply to the external power
supply connector. This power supply provides 9 VDC power to the USB-1616HS-BNC.
Figure 2. USB-1616HS-BNC components – front view
Figure 3. USB-1616HS-BNC components – rear view
