INSTALLATION AND OPERATING MANUAL
WARNING:
Ensure that any electrical devices connected to the
Cetus Sieve are switched off at the mains before you
attempt to conduct any type of maintenance
Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP
t +44 (0) 1942 216554 - f +44 (0) 1942 418489 - e info@evolutionaqua.com - w www.evolutionaqua.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cetus sieve and is the answer not in the manual?

Questions and answers

Related Manuals for Evolution Aqua Cetus sieve

Summary of Contents for Evolution Aqua Cetus sieve

  • Page 1 Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP t +44 (0) 1942 216554 - f +44 (0) 1942 418489 - e info@evolutionaqua.com - w www.evolutionaqua.com...

  • Page 2: Table Of Contents

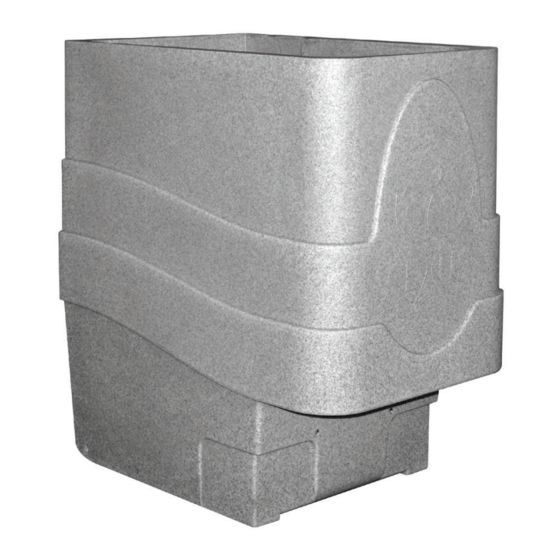

    INTRODUCING THE CETUS SIEVE Congratulations on purchasing an Evolution Aqua Cetus Sieve. The Cetus Sieve is a bow screen pre-filter, made using rotational molding technology. It is designed to efficiently and effectively remove large amounts of mechanical waste from a pond and can be installed on a gravity fed set-up or a pump fed set-up.

  • Page 3: Overview

    This process is commonly referred to as “pre-filtering”. (See figure 2) The Cetus Sieve can also be used as a stand-alone unit to remove leaves and other floating debris from your pond via a surface skimmer.

  • Page 4: Specifications

    SPECIFICATIONS CETUS SIEVE PUMP FED SET UP GRAVITY FED SET UP Max Flow 18,000 litres per hour 18,000 litres per hour 4” on Cetus with additional Inlet Connection 4” (110mm) eazy connector 4” - 1½” eazy connector 3” (90mm) on Cetus 3”...

  • Page 5: Dimensions

    DIMENSIONS WATER LEVEL ON A GRAVITY FED SET-UP CENTRE Figure 3a. Cetus Sieve Dimensions (Side View) Figure 3b. Cetus Sieve Dimensions (Overhead View)

  • Page 6: Components

    COMPONENTS The Cetus Sieve is supplied with eazy connectors fitted to the inlet and outlet for an easier initial set-up: INLET OUTLET Outlet fitted with 4” straight Inlet fitted with 4” 90° elbow eazy connector. eazy connector. Also supplied (to be fitted by user): 3”...

  • Page 7: Initial Set-Up

    INITIAL SET-UP FIT WASTE CONNECTION Fit the 3” 90° eazy connector to the waste outlet of the Cetus Sieve. Tighten the jubilee clip with a nut runner. Figure 4a INSTALL SCREEN Install the 300 micron screen inside the Cetus Sieve.

  • Page 8: Installation Advice

    During installation a spirit level should be used across the metal plate on the weir to make sure the Cetus Sieve is level as shown in Figure 5. This will ensure that the water flows evenly across the screen.

  • Page 9: Pump Fed Installation

    PUMP FED INSTALLATION To set up the Cetus Sieve so it is ready for a Pump Fed installation you will need to fit the 4” to 1½” eazy connector and pipe assembly to the inlet. Use a nut runner to tighten up the jubilee clips to ensure a tight fit.
  • Page 10 Cetus Sieve INSTALLATION ADVICE For optimum results we recommend installing the Cetus Sieve in line before a Nexus 210, 220 or 310, 320 filtration system. The diagrams below show these types of set up. CETUS SIEVE AND NEXUS FILTRATION SYSTEM...
  • Page 11 PUMP FED INSTALLATION The Cetus Sieve when installed as a pump fed unit, needs to be set up as shown on page 9. This will enable a 1½” (50mm) hard pipe or hosetail for flexible pipe to be fitted, connecting your pump to the Cetus Sieve. When pump fed, the Cetus Sieve needs to be installed above water level as shown in figure 8a below.

  • Page 12: Gravity Fed Installation

    GRAVITY FED INSTALLATION To set up the Cetus Sieve so it is ready for a Gravity Fed installation you will need to fit the 4” to 1½” eazy connector and pipe assembly to the outlet. Use a nut runner to tighten up the jubilee clips to ensure a tight fit.
  • Page 13 Cetus Sieve is the same height as the maximum water level in the pond. To do this, the top of the Cetus Sieve needs to be installed 20mm above the pond water level as shown in figure 10a below.

  • Page 14: Dual Gravity Fed Installation

    The 4” (110mm) pipe between the Cetus Sieve and the filter will allow water to pass in the direction of the higher demanding unit (it is recommended that the pump from the Cetus Sieve has a higher flow rate than the pump from the filter.) Figure 11.

  • Page 15: Our Guarantee

    Proof of purchase will be required. Any unauthorised repairs, modifications or alterations to this unit will invalidate the warranty. 1. Your Cetus sieve is covered by your warranty for 2 years from the date of purchase provided that: a. It is installed, operated and regularly maintained in accordance with the instruction manual.
  • Page 16 - we are the first choice for everyone from the general hobbyist to the serious fishkeeper. Find out more about the Cetus Sieve and all of our other innovative products at www.evolutionaqua.com. The difference is clear.

Table of Contents
