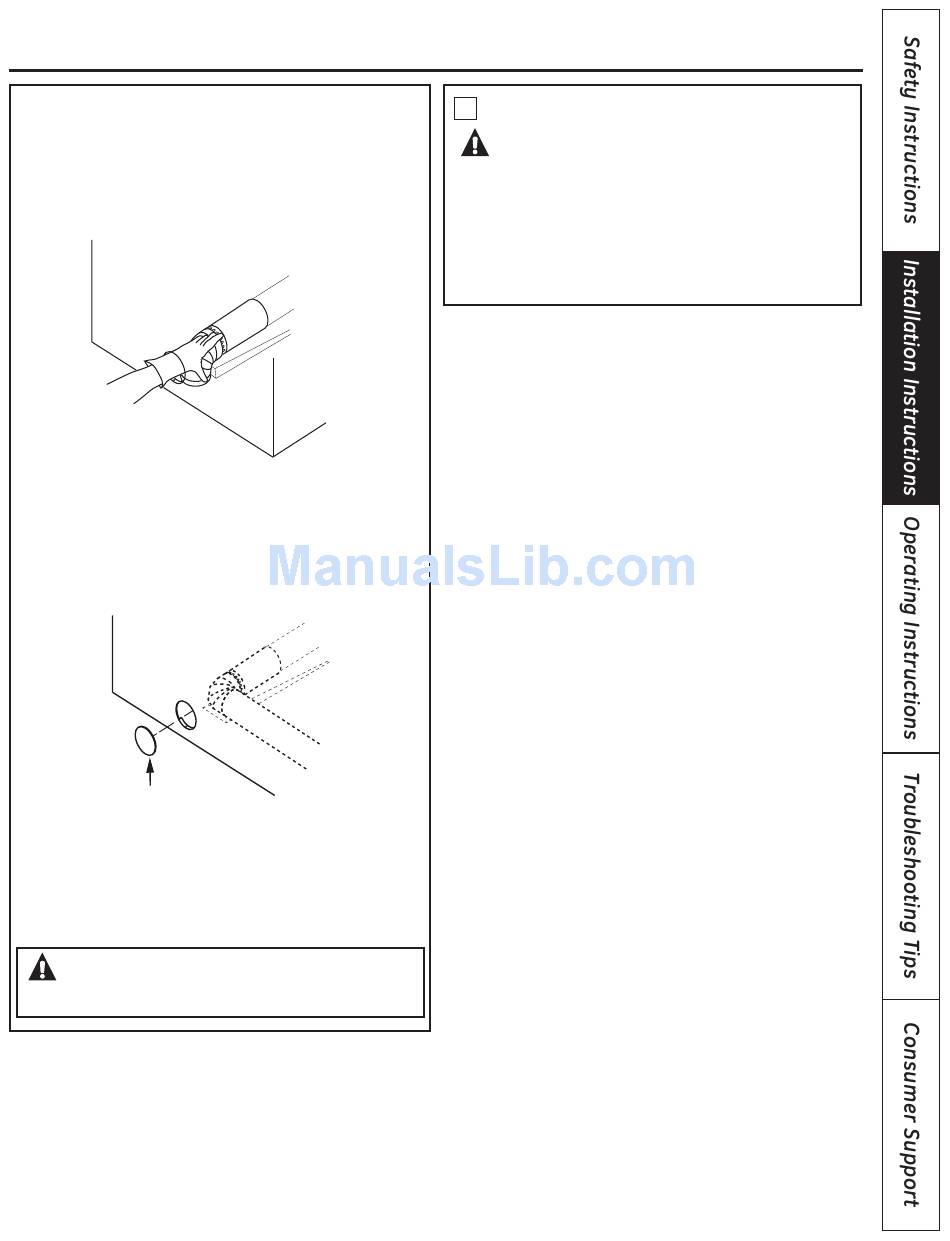

ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
• Insert the elbow through the rear opening and connect it to the
dryer internal duct.
• Apply duct tape on the joint between the dryer internal duct
and elbow, as shown on page 7.
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
ADDING COVER PLATE TO REAR OF
Connect standard metal elbows and ducts to complete the
exhaust system. Cover back opening with a plate (Kit
WE1M454) available from your local service provider. Place
dryer in final location.
WARNING - NEVER LEAVE THE BACK
OPENING WITHOUT THE PLATE.
TO DISCONNECTING WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE
IMPROPER AND DANGEROUS OPERATION
For servicing phone numbers for replacement parts, and other
information, refer to Owner's Manual or visit our Web site.
WARNING - LABEL ALL WIRES PRIOR
