7.

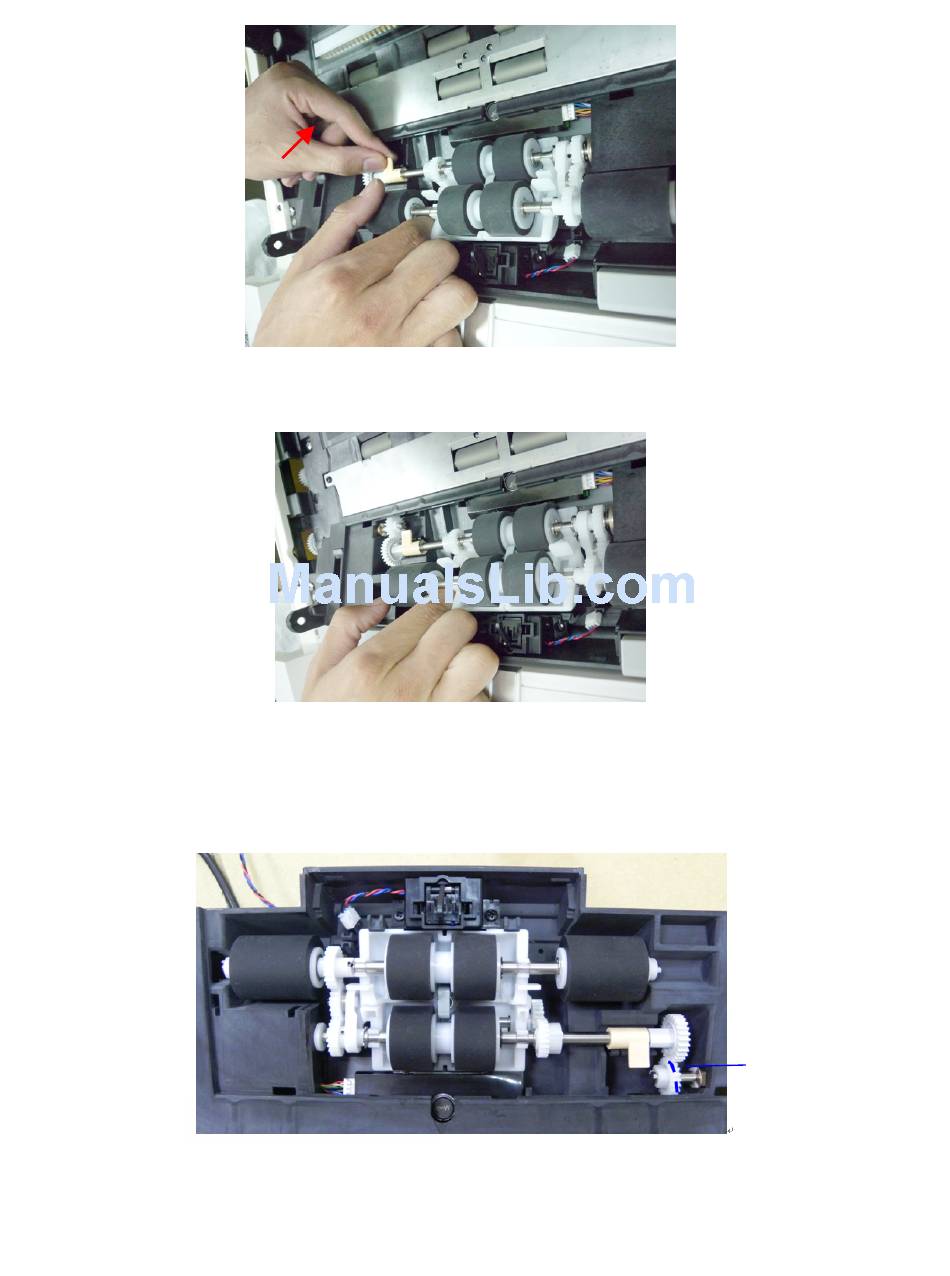

Position the lower ADF Pickup Roller to its slot.
8.
After installing ADF Pickup Roller to the slot, lubricate the corresponding
gear on the machine as shown with EM-D110 P/N 076-0010A-0-SP. Rotate
the gear until all surface is completed lubricated.
9.
Close the ADF Pickup Roller Cover.
118
Lubricate this gear
with EM-D110 P/N
076-0010A-0-SP
