Summary of Contents for Avision HF-1115B

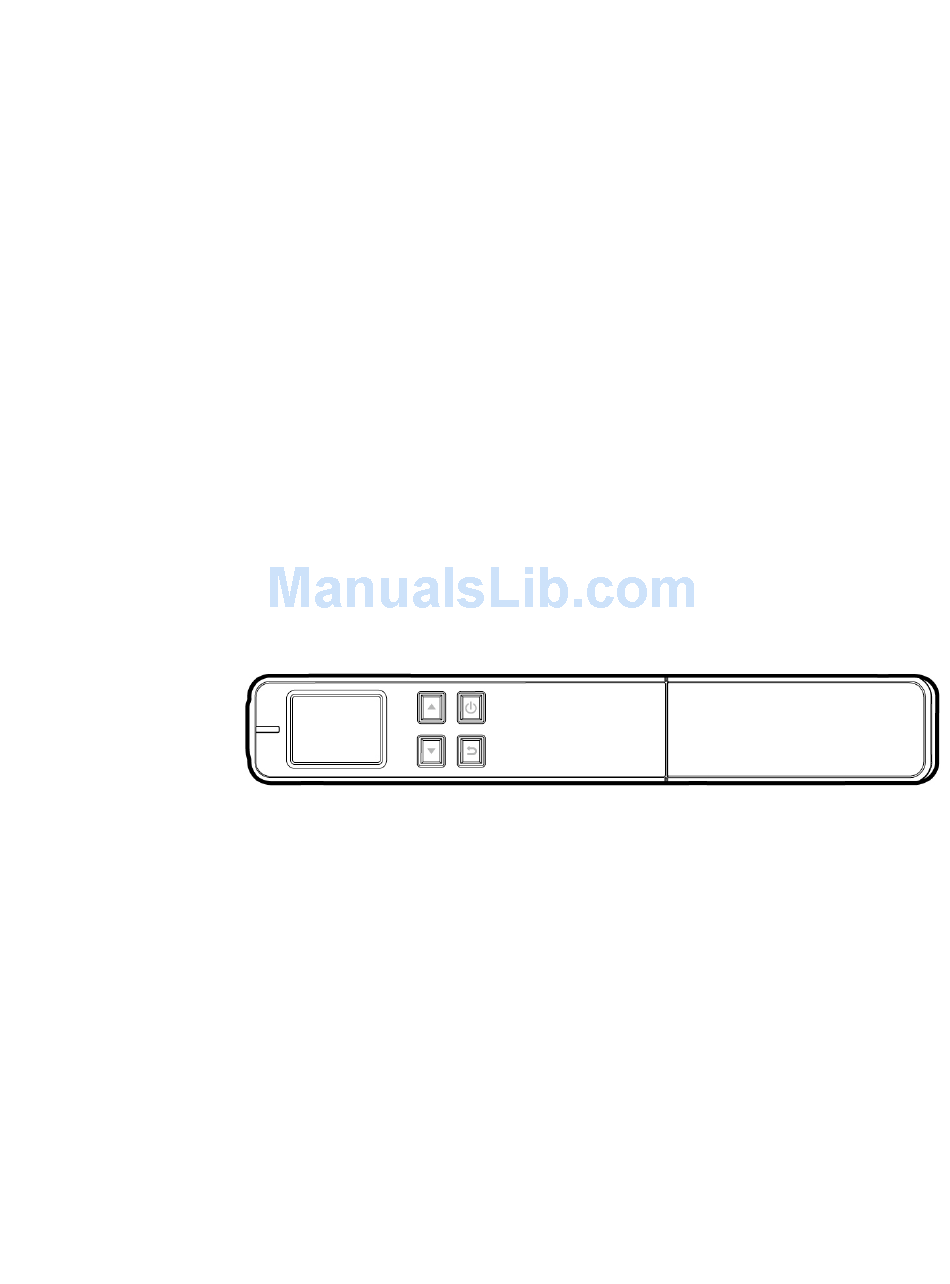

- Page 1 Hand-Held Scanner User’s Manual Regulatory model: HF-1115B/HF-1116B Avision Inc. manual-en-250-0746-E-miwand2all-v1...
- Page 2 Warranty The information contained in this document is subject to change without notice. Avision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of fitness for a particular purpose. Avision shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 EMC Directive 2004/108/EC CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by Avision. *This machine is certified as Class 1 LED product. This means that this machine does not produce hazardous laser radiation.
- Page 4 Warning and Precautions of the lithium-ion battery Warning: Danger warning to prevent the possibility of the battery from leaking, heating, explosion, please observe the following precautions: • Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using.
- Page 5 User’s Manual Caution: • Risk of explosion if battery is replaced by an incorrect type. Dispose the battery according to local regulations. • Never place batteries or devices on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated or its performance will be degenerate and its service life will be decreased.
-
Page 6: Table Of Contents
Table of Contents Overview ................1-1 Introduction..................1-1 Package Contents ................1-1 Top View ..................1-3 Rear View ..................1-4 Bottom View ................... 1-4 Front View with Feeder Dock ............. 1-5 Scanner Indicator Light ..............1-6 Installation ................ 2-1 Precautions..................2-1 Remove Scanner from the Feeder Dock .......... - Page 7 User’s Manual Maintenance............... 4-1 Calibrate the Scanner ...............4-1 Clean the Scanner and Feeder Dock ............4-2 Troubleshooting ..............5-1 Error Messages ................5-1 Frequently asked questions and answers ..........5-2 Technical Service ................5-4 Specifications..............6-1...
-
Page 8: Overview
User’s Manual Overview Introduction Congratulations on your purchase of the portable handheld scanner. With this scanner, you can scan and store your photos or documents directly to a micro SD card without any computer. Simply turn on the scanner, press the Power/Scan button to start and slide the scanner on the surface of your document and press the Power/Scan button again to stop. - Page 9 The model names of MiWand 2 and MiWand 2 Pro apply for the regulatory model number of HF-1116B. The model name of MiWand 2L and MiWand 2L Pro apply for the regulatory model number of HF-1115B. *: The SC version of that model does not include this item. Note: Retain the scanner box and packing materials in case you may use them for shipping purposes.
-
Page 10: Top View
User’s Manual Top View Item Name Description Indicates the operating/warning status of the System indicator scanner. light Displays preview pictures and settings menus. LCD display Enters Menu screen from [Scan Ready] screen. Up arrow Navigate “backward” through images and menu options. -
Page 11: Rear View
Rear View Item Name Description Used to plug the mini end of the USB cable to USB port connect to PC. Memory Used to insert a memory card. card slot Bottom View Name Description The rollers are sensors and should only be rolled in Sensor one direction. -
Page 12: Front View With Feeder Dock
User’s Manual Front View with Feeder Dock Item Name Description Guide Slide Slide the guide to fit your document size. Used to insert original into the feed slot to begin Feed Slot scanning. Used to disengage the wand scanner from the Latch feeder dock. -
Page 13: Scanner Indicator Light
Scanner Indicator Light Scanner Indicator Light Status Indication Scanner is off or scanner is on and ready for use Powering on for initialization Orange briefly Scanning in progress in 300 dpi Green, steadily on Orange, steadily on Scanning in progress in 600 dpi Green or Orange Processing scanned image flashing... -
Page 14: Installation
User’s Manual Installation 2.1 Precautions Keep the product out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit. Do not install the product in a humid or dusty place. Place the product securely on an even, flat surface. Tilted or uneven surfaces may cause mechanical or paper-feeding problems. -
Page 15: Install The Batteries
2.3 Install the Batteries For the model of MiWand 2/MiWand 2 Pro: Push and remove the battery cover on the scanner. Insert 2x AA batteries into the battery compartment. Make sure the batteries are inserted with the correct polarity. (note correct + - direction) Insert the battery cover. - Page 16 User’s Manual For the model of MiWand 2L/MiWand 2L Pro (with Li-Ion Battery): Push and remove the battery cover on the scanner. Load the battery into the battery container. Make sure the battery is loaded with the correct polarity. Note the copper strips on the battery should be touching the copper strips on the device inside the battery container.
-
Page 17: Charge The Batteries
2.4 Charge the Batteries For MiWand 2/MiWand 2 Pro: *The scanner comes with a battery charger and 2 pieces of AA rechargeable batteries to let you reuse batteries. Please follow these steps to recharge the rechargeable batteries: Insert 2 rechargeable batteries into the battery charger. Make sure the batteries are inserted with the correct polarity. -
Page 18: Via The Usb Cable
User’s Manual For MiWand 2L/MiWand 2L Pro: There are two methods to charge the batteries, through the USB cable to the computer or through the power adapter or the USB power cable to the electric outlet. 2.4.1 Via the USB cable Turn off the scanner. - Page 19 Insert the small end of the USB power cable to the feeder dock and the other end to a computer or a power outlet through a USB power adapter (not included). USB Power Adapter (not included) Important: Do not turn on the scanner power when charging the battery. Charge the batteries for at least 2 hours until green LED goes off before using the scanner.
-
Page 20: Install Micro Sd Card
User’s Manual 2.5 Install micro SD Card You must install a micro SD card to the SD slot of the scanner to store your images. Gently press in until the SD card is latched. micro SD card Note: The scanner only accepts micro SD card in FAT16 or FAT32 format. NTFS and other file formats are not supported. -
Page 21: Operation
User’s Manual Operation 3.1 Suitable and Unsuitable Original Types Suitable for Wand Scanning The scanner used as a wand scanner without the feeder dock is designed to obtain the best scanning results with photo and document up to 8.5” x 14” size. Suitable for Feeder Dock The scanner used with the feeder dock is designed to obtain the best scanning results with the following types of originals:... -
Page 22: Choose Your Desired Scan Settings
3.3 Choose Your Desired Scan Settings On the [Scan Ready] screen, press to enter the Menu mode. A list of menu options is displayed. The options include Resolution, Color Mode, Save Format, LCD Off, and so Press to focus on your desired option such as Save Format, and then press to select it. -
Page 23: Start Sheet-Fed Scanning With Feeder Dock
User’s Manual 3.5 Start Sheet-Fed Scanning with Feeder Dock y attaching the feeder dock into the scanner, the whole unit allows you to start auto scan as soon as your document is inserted to the feed slot. When the scan is finished, the image is saved in the memory card. - Page 24 (b) From a power outlet through a USB power adapter (not included) Simply plug the small end of the power adapter to the power jack of the ducking unit and the other end to a power outlet through a USB power adapter (not included). USB Power Adapter (not...
- Page 25 User’s Manual Operation: Press to turn on the scanner. Refer to the section [Customize Your Scan Settings] to select your desired scan settings. Insert a page FACE UP and align it to the left edge of the feeding slot. The scan is automatically started when your document is fed into the feeding slot.
-
Page 26: Preview Scanned Images On The Lcd Screen
3.6 Preview Scanned Images on the LCD Screen You can quickly and easily preview y our JPEG images on the LCD screen immediately after a scan, or at any other time. You can also view all images individually or as a slideshow. 3.6.1 Set Preview Mode y default, the Preview mode is on allowing you to view the scanned images for 2 seconds im ediately after scanning (available for JPEG file format only). - Page 27 User’s Manual View Scanned JPEG images Individually th the screen di splayed, press to enter the Display mode. The slideshow automatically begins and displays the images in the alphanumeric order they are stored on the SD card. Press to view previous or next image. Press to exit the Display mode and return to the Scan Ready screen.
-
Page 28: Computer System Requirements For Usb Connection
Each scanned image is given a file name with the prefix IMG_ followed by a 4-digit sequential number in the order the image s are stored. For example, IMG_0001.jpg, IMG_0002.jpg, IMG_0001.pdf, IMG_0002.pdf, etc. JPG files are stored in a sub folder titled DCIM\100PHOTO. The folder s tores 9999 photo files, and then automatically creates another sub folder titled 101PHOTO, and so on to 199PHOTO. -
Page 29: View Or Download Images With Ipad
User’s Manual View or Download Images with iPad Plug the iPad Camera Connector（not included）to iPad dock connector. Plug the mini USB connector of the supplied USB cable to the Mini USB port of your scanner and plug the USB connector o f the supplied USB cable to iPad Camera Connector. -
Page 30: Customize Your Scan Settings
3.10 Customize Your Scan Settings You can customize scanner settings through the Menu screen to fit different document type 3.10.1 Resolution The scan resol ution is measured in dpi (dots per inch). The higher the resolution, the more details the scanned image will be displayed. However, a higher resolution may req uire more disk space stored in the SD card. -
Page 31: Save Format
User’s Manual 3.10.3 Save Format The scanner offers two types of file formats for your scanned image. JPEG (default, fits for hotos) and PDF (fits for text document). Follow these steps to select your desired file format: With the screen displayed, press to enter the Menu mode. -
Page 32: Power Saving
3.10.5 Power Saving o conserve power, the scanner automatically shuts off after left idle for a specified time (90 seconds, 3 minutes, or 5 minutes). ollow these steps to change the time setting: th the screen di splayed, press to enter the Menu mode. Press to scroll Power Saving, and then press... -
Page 33: Anti-Mirror (Wand Scans Only)
User’s Manual .10.6 Anti-mirror (wand scans only) When the [Anti-mirror] feature is tu rned on (default), the scanner allows you to scan an riginal either from top-to-bottom or from bottom-to-top. In either way, you can obtain a correct scanned image. (The scanner automatica lly detects your scanning direction and if ou scan your original from bottom-to-top, the scanned image will be automatically flipped nd rotated upside-down.) When [Anti-mirror] is turned off, if you scan your original from... -
Page 34: Card Format
3.10.7 Card Format Warning !: If you reformat your memory card, all existing files on the card will be deleted. To format your SD card: With the screen displayed, press to enter the Menu mode. Press to scroll to Card Format, and then press to select it. -
Page 35: Auto-Crop (Sheet-Fed Scan Only)
User’s Manual 3.10.8 Auto-crop (sheet-fed scan only) When using the feeder dock, the whole unit has a built-in cropping function to capture an age according to the actual size of your original as illustrated below. *This feature is available when using sheet-fed scan with the feeder dock. Original/Auto-crop on (default) Auto-crop off Depending on the sh... -
Page 36: Language
3.10.10 Language The scanner offers multi-lingual text for LCD screen. Choice includes English, German, French, Dutch, Italian, Spanish, Chinese Traditional, Chinese Simplified, Japanese, Korean, nd so on. However, the availability of the languages varies based on your area. llow these steps to choose your desired language: th the screen di splayed, press... -
Page 37: About
User’s Manual 3.10.12 About The About option lists the current Firmware and Calibration versions. You may need this information if you contact our Customer Support. Follow these steps to view the About information: th the screen di splayed, press to enter the Menu mode. Press to scroll to About, and then press to select it. -
Page 38: Maintenance
User’s Manual Maintenance 4.1 Calibrate the Scanner Calibrate only if the scanned image looks fuzzy, the color looks abnormal (e.g., darker than normal), after 8K+ scanned, or the scanner has been stored without use for a long time. The calibration process resets the Contact Image Sensor to resume its color and sharpness precision. -
Page 39: Clean The Scanner And Feeder Dock
During calibration, move the scanner only in the white area. Warning: Do not interrupt the calibration sequence or try to shut off the device while it is calibrating. If you stop the calibration before it has completed, a calibration error may occur. - Page 40 User’s Manual Clean the feeder dock: Remove the scanner from the feeder dock. Wipe the rollers with the included cleaning cloth. Wipe the feeder dock with a dry and clean lint-free cloth. Rollers Note: Adding some isopropyl alcohol (95%) on the cleaning cloth is more efficient when cleaning the rollers.
-
Page 41: Troubleshooting
User’s Manual Troubleshooting Error Messages If there is error during scanning, the LED light will be flashing in red color and error message will be displayed. Refer to the following table to clear the error conditions. Error Message Root Cause/Code Purpose How to restore 1. -
Page 42: Frequently Asked Questions And Answers
Frequently asked questions and answers Q： Why does not my scanner turn on? A： 1. The scanner may not be engaged with the feeder dock correctly. 2. The batteries may not enough power or may not be inserted correctly. Q： The image can not be saved into the memory card while scanning? A：... - Page 43 User’s Manual Q： How can I tell if the scanner is scanning at 300 dpi or 600 dpi? A： The scan indicator light indicates the selected resolution: Green= 300 dpi, Orange=600 dpi Q： Why there are strange lines on the scanned document? A：...
-
Page 44: Technical Service
Technical Service Before contact Avision, please prepare the following information: Scanner serial & revision number (located on the bottom of the scanner); Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card, interface card); Headquarter Avision Inc. -
Page 45: Specifications
User’s Manual Specifications Specifications are subject to change without notice. Item Description Regulatory model number HF-1115B/HF-1116B MiWand 2L/MiWand 2L Pro (HF-1115B) MiWand 2/MiWand 2 Pro (HF-1116B) Image Technology: Contact Image Sensor (CIS) Scanner Display: 1.8” TFT LCD Memory: 16MB Max. Document Size: 8”...
