Quick Install Guide
Wireless-G 54Mbps XR
TM
Access Point
(Compatible with Compex PoE Injector)
WP54G 1a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP54G 1a and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compex WP54G 1a

Summary of Contents for Compex WP54G 1a

  • Page 1 Quick Install Guide Wireless-G 54Mbps XR Access Point (Compatible with Compex PoE Injector) WP54G 1a...

  • Page 2: Table Of Contents

    Let’s Get Going-Hardware Setup ..........3 Method One: Using power adapter to supply power to the unit ..3 Method Two: Using Compex PoE to supply power to the unit ..5 Access to Web-based Interface ..........8 Access to the Web interface with uConfig ......... 8 Access to the Web interface manually ..........

  • Page 3: 1: Introduction

    Chapter 1 Introduction 1: Introduction The Compex WP54G Wireless-G 54Mbps XR™ Managed Access Point is a high- performance AP that is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness and stability and wider network coverage. Based on 802.11g, it can support transfer speeds 5X faster than 802.11b.

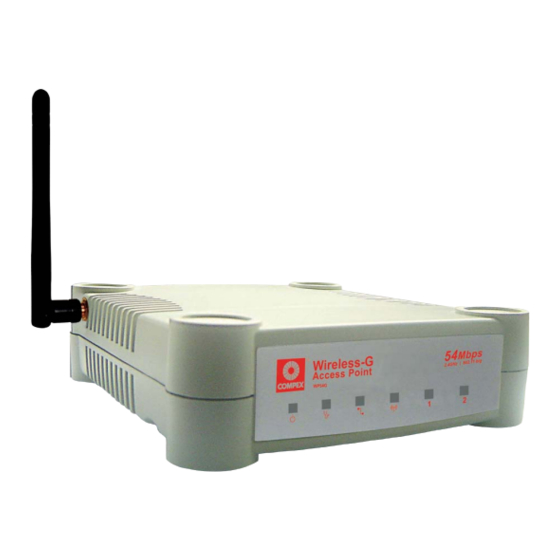

  • Page 4: Packaging Content

    Chapter 1 Introduction Packaging Content Actual product appearance may slightly differ depending on the hardware version. 1 x Compex WP54G 1 x Power Adapter 1 x Antenna 1 x Product CD 1 x Read-Me-First Note...

  • Page 5: 2: Let's Get Going-Hardware Setup

    Connect the external antenna to the SMA connector of Compex WP54G. Insert one end of the RJ45 Ethernet cable to any of the LAN ports on your Compex WP54G, and the other end of the cable to your PC’s Ethernet network adapter.
  • Page 6 Let’s Get Going - Hardware Setup Attach the power adapter to the main electrical supply, and connect the power plug into the socket of the Compex WP54G. Power ON your PC. Notice that the Power and Port 1 or 2 (depending on which port you have connected the RJ45 Ethernet cable to) LEDs have lighted up.

  • Page 7: Method Two: Using Compex Poe To Supply Power To The Unit

    Connect the external antenna to the SMA connector of Compex WP54G. Use an RJ45 Ethernet cable to connect one end of the cable to the Ethernet socket of the Injector and the other end to one of the LAN ports of Compex WP54G. Warning: When one port is used for PoE, the other port cannot connect to any other network device.
  • Page 8 Injector’s RJ45 Ethernet cable to your network device, such as to a switch or hub. Connect the power adapter supplied in the Compex PoE kit to the main electrical supply and the power plug into the socket of the injector.
  • Page 9 Now, turn on your power supply. Notice that the Power and Port 2 (according to the picture illustration) LEDs have lighted up. This indicates that the WP54G is receiving power through the Compex PoE Injector and that connection between Compex WP54G and your PC has been established.

  • Page 10: 3: Access To Web-Based Interface

    Chapter 3 Access to Web-based Interface 3: Access to Web-based Interface There are two methods to access to the web-based interface of Compex WP54G: Through the Compex Utility – uConfig You can access to the web-based interface directly without having to change the IP address of your PC.
  • Page 11 Chapter 3 Access to Web-based Interface Select NetPassage WP54G in the Compex Products List section and click on the Open Web button. To retrieve and display the available device(s) in the list, click on the Refresh button. This screen prompts you not to exit your uConfig program while accessing to your web-based interface, or else you will fail to connect to your device.
  • Page 12 At the authentication page, click on the LOGIN! button to enter the main configuration page. The default password is “password”. You will then reach the home page of Compex WP54G’s web-based interface. Note: Refer to User’s Manual for instructions on how to configure Compex WP54G for wireless access.

  • Page 13: Access To The Web Interface Manually

    Compex has designed another utility program NpFind that helps you verify the IP address of your Compex product. You can also find this utility in the Product From the Product CD, click on Utilities and select NpFind program to run it.

  • Page 14: 4: Panel Views And Descriptions

    Chapter 4 Panel Views and Descriptions 4: Panel Views and Descriptions Front View of Compex WP54G Name Description Steady Blue The device is powered up. (Power) No power is supplied to the device. Flashing Green This indicates the flash during the power-up.
  • Page 15 Chapter 4 Panel Views and Descriptions Name Description Steady Green Connection has been established (Port 1 & 2 LEDs) between the device and the network. Flashing Green Activity is detected in the network. No network connection. Back View of WP54G Name Description External Antenna...
  • Page 16 Description DC Jack Connect to power adapter (if used). Reverse SMA connector Connect to external SMA antenna. Bottom View of Compex WP54G Name Description Reset Push button To reboot, press once. To reset password, press and hold the button for 5 seconds.

  • Page 17: 5: Technical Specifications

    Chapter 5 Technical Specification 5: Technical Specifications Safety and ! FCC Part 15 SubPart B and SubPart C [for Electromagnetic wireless module] Conformance ! EN 300 328-2 [for wireless module] ! EMC CE EN 301 489 (EN300 826) [for wireless module] ! EN 55022 (CISPR 22)/EN 55024 Class B ! EN 61000-3-2...
  • Page 18 By MAC address Profile Backup & Restore Firmware Upgrade Power Requirements Using Power Adapter: ! Output 9VDC (localized to country of sale) Using PoE: ! Compex PoE Injector Environment Requirements Operating Temp: 0ºC to 70ºC Storage Temp: -15ºC to 70ºC Operating Humidity: 5% to 95% RH Humidity (RH –...
  • Page 19 145mm x 132mm x 41mm (H x W x D) Further Information References For more details on the WP54G configuration, please refer to the User’s Manual in the accompanying Product CD. This document may become superseded, in which case you may find its latest version at: http://www.compex.com.sg...
  • Page 20 Compex, Inc. may make improvements and/or changes to the product and/or specifications of the product described in this guide, without prior notice. Compex, Inc will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the guide.
  • Page 21 The transmitter shall not be collocated with other transmitters or antennas. ICES 003 Statement This Class B digital apparatus complies with Canadian ICES-003. DECLARATION OF CONFORMITY: Compex, Inc. declares that the product: Product Name: Compex Wireless-G 54Mbps XR Access Point Model No.: WP54G conforms to the following Product Standards:...

  • Page 22: Warranty Registration Card

    CARD [M-0088-V2.4C] Register via the Internet at http://www.cpx.com or http://www.compex.com.sg To activate the warranty, please complete this card and return to Compex within ninety (90) days from the date of purchase. Please e-mail this warranty card to support@compex.com.sg. Product: Purchase Date:...
  • Page 23 Manual Number: M-0478-V1.1C Version 1.1 November 2005...
