IEI Technology AFOLUX CX Series User Manual

Fanless all-in-one panel pc via c7/eden cpu tft lcd, wireless lan, bluetooth, touch screen rosh compilant, ip64 protection
Hide thumbs Also See for AFOLUX CX Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
AFOLUX CX Series Flat Panel PC
AFOLUX CX Series Flat Panel PC
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFOLUX CX Series and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology AFOLUX CX Series

Summary of Contents for IEI Technology AFOLUX CX Series

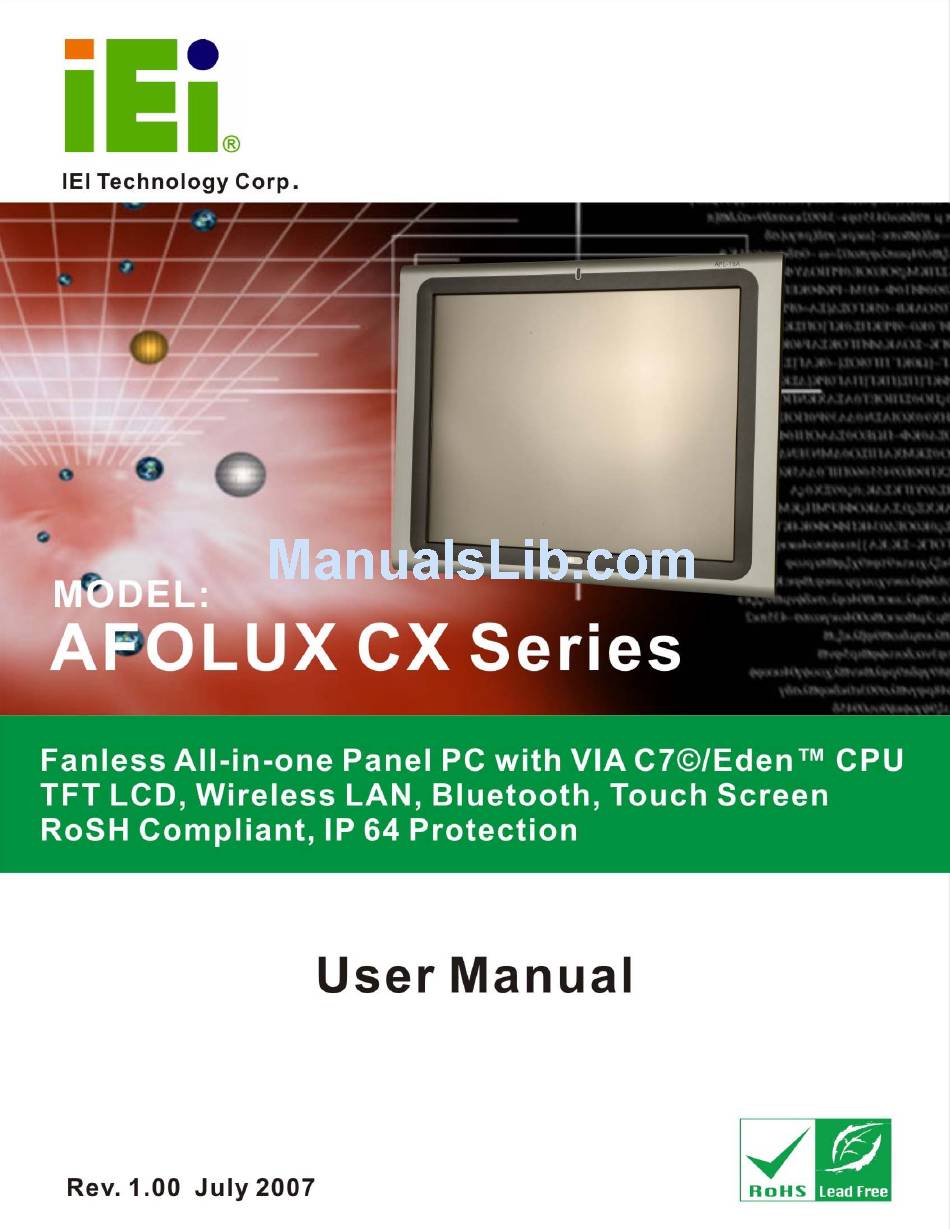

  • Page 1 AFOLUX CX Series Flat Panel PC AFOLUX CX Series Flat Panel PC Page i...
  • Page 2 AFOLUX CX Series Flat Panel PC Revision MODEL AFOLUX CX Series Flat Panel PC User Manual Revision Number Description Date of Issue 1.00 Initial release July 2007 Page ii...
  • Page 3 AFOLUX CX Series Flat Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

  • Page 4: Packing List

    To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the AFOLUX CX series package. 1 x AFOLUX CX series panel PC 1 x Power cord...
  • Page 5 4. Only qualified engineers from certified system integrators or VARs are allowed to make necessary functional modifications to the panel PC, e.g., adding a touch screen. IEI offers the customization service on a pre-order basis. 5. If considerable amount of dust, water, or fluids entered the panel PC, turn off the power supply immediately, unplug the power cord, and contact the vendor.
  • Page 6 AFOLUX CX Series Flat Panel PC operate with the openings obstructed by foreign objects. However, the ambient temperature of the installation site should be observed and controlled to avoid overheating the panel PC. 6. Condensation might form inside the panel PC chassis if exposed to sudden changes in temperature.
  • Page 7 AFOLUX CX Series Flat Panel PC a piece of dry and soft cloth or a slightly moistened cloth with the exterior casing. The interior of the Panel PC does not require cleaning. Keep fluids away from the Panel PC and the interior of it.
  • Page 8 AFOLUX CX Series Flat Panel PC excellent tools for wiping hard to reach areas in the keyboard, mouse, and other locations.   F oam swabs - Whenever possible it is better to use lint free swabs such as foam swabs.

  • Page 9: Table Of Contents

    AFOLUX CX Series Flat Panel PC Table of Contents INTRODUCTION....................17 1.1 AFOLUX CX S PC O ..........18 ERIES ANEL VERVIEW 1.1.1 Model Variations ....................18 1.1.2 Applications ..................... 18 1.1.3 Standard Features .................... 19 1.2 E ..................... 20...
  • Page 10 AFOLUX CX Series Flat Panel PC 2.5.1 Overview ......................38 2.5.2 Features ......................38 2.6 P ......... 39 ERIPHERAL EVICE NTERFACES ONNECTORS LOTS 2.6.1 OEM Options ....................39 2.6.2 Internal Slots....................39 2.6.3 Internal Peripheral Device Connectors............39 2.6.4 External Peripheral Device Connectors............40 INSTALLATION ....................
  • Page 11 AFOLUX CX Series Flat Panel PC 5.1.1 Starting Setup....................68 5.1.2 Using Setup ...................... 68 5.1.3 Getting Help..................... 69 5.1.4 Unable to Reboot After Configuration Changes..........69 5.1.5 BIOS Menu Bar....................69 5.2 M ........................70 5.3 A ....................... 71 DVANCED 5.3.1 CPU Configuration..................
  • Page 12 AFOLUX CX Series Flat Panel PC C.2.2 Driver Installation..................125 C.2.3 Touch Panel Driver Configuration..............128 WATCHDOG TIMER ..................129 HAZARDOUS MATERIALS DISCLOSURE ........... 133 E.1 H IPB P AZARDOUS ATERIAL ISCLOSURE ABLE FOR RODUCTS ERTIFIED AS HS C 2002/95/EC W ........
  • Page 13 List of Figures Figure 1-1: Front View....................20 Figure 1-2: AFL CX Series Rear View................21 Figure 1-3: AFOLUX CX Series Bottom View ............22 Figure 1-4: AFOLUX CX Series Internal Overview ...........23 Figure 1-5: AFL-15A-CX Dimensions (units in mm)..........31 Figure 1-6: AFL-17A-CX Dimensions (units in mm)..........32 Figure 1-7: AFL-19A-CX Dimensions (units in mm)..........33...
  • Page 14 AFOLUX CX Series Flat Panel PC Figure 4-5: DDR2 SO-DIMM Module Installation ............64 Figure 4-6: Jumper Locations..................65 Page xiv...
  • Page 15 AFOLUX CX Series Flat Panel PC List of Tables Table 1-1: Model Variations..................18 Table 1-2: AFOLUX CX Series System Specifications ..........25 Table 1-3: Motherboard Specifications ..............26 Table 1-4: TFT LCD Monitor Specifications..............27 Table 1-5: Touch Panel Specifications..............28 Table 1-6: Bluetooth Module Specifications ............29 Table 1-7: GPRS Module Specifications ..............30...
  • Page 16 AFOLUX CX Series Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page xvi...

  • Page 17: Introduction

    AFOLUX CX Series Flat Panel PC Chapter Introduction Page 17...

  • Page 18: Afolux Cx Series Flat Panel Pc Overview

    AFOLUX CX Series Flat Panel PC 1.1 AFOLUX CX Series Flat Panel PC Overview The AFOLUX CX series flat panel PC is a flexible, multi-functional flat panel PC that can be applied in diverse operational environments and implemented in multi-faceted applications.

  • Page 19: Standard Features

    Self registration terminal in hospital and airport Ticket vending machine for transportation use 1.1.3 Standard Features Some of the standard features of the AFOLUX CX series flat panel PC include: VIA C7® 1.5GHz processor/VIA Eden 500MHz processor Rugged mechanism design with ABS/PC case...

  • Page 20: External Overview

    LAN, VGA, USB 2.0 ports, serial ports, reset button, power connector and power switch. 1.2.2 Front Panel The front side of the AFOLUX CX series is a flat panel TFT LCD screen surrounded by an ABS/PC plastic frame. Figure 1-1: Front View 1.2.3 Rear Panel...

  • Page 21: Bottom Panel

    AFOLUX CX Series Flat Panel PC Figure 1-2: AFL CX Series Rear View 1.2.4 Bottom Panel The bottom panel of the AFOLUX CX series has the following I/O interfaces (Figure 1-3): 4 x USB 2.0 connectors 1 x AC power adapter connector...

  • Page 22: Internal Overview

    Figure 1-3: AFOLUX CX Series Bottom View 1.3 Internal Overview The AFOLUX CX series internal components are protected in an aluminum chassis inside the plastic back cover. The motherboard, wireless LAN module, Bluetooth module and DDR2 memory module are installed on a metal sheet that protects the rear of the TFT LCD screen (Figure 1-4).

  • Page 23: Specifications

    AFOLUX CX Series Flat Panel PC Figure 1-4: AFOLUX CX Series Internal Overview 1.4 Specifications 1.4.1 Preinstalled Hardware Components The AFOLUX CX series flat panel PC has the following preinstalled components: 1 x Motherboard 1 x TFT LCD screen 1 x Touch screen...

  • Page 24: System Specifications

    AFOLUX CX Series Flat Panel PC 1.4.2 System Specifications The technical specifications for the AFOLUX CX series systems are listed in Table 1-2. SPECIFICATION AFL-15A-CX AFL-17A-CX AFL-19A-CX ABS/PC plastic front panel Front Panel Aluminum chassis Chassis 15” 17” 19” LCD Panel...

  • Page 25: Table 1-2: Afolux Cx Series System Specifications

    470 x 383 x 67 Dimension (W x H x D) 3.2Kg 5.6Kg Net/Gross Weight IP 64 compliant Front Panel Protection CE / FCC / EMC / CB Safety & EMI Table 1-2: AFOLUX CX Series System Specifications Page 25...

  • Page 26: Motherboard Specifications

    AFOLUX CX Series Flat Panel PC 1.4.3 Motherboard Specifications The AFOLUX CX series come with an AFLMB-CX700 motherboard. The technical specifications of the motherboard are listed in Table 1-3. Specification AFLMB-CX700 ® VIA C7 / VIA Eden VIA CX-700M Chipset...

  • Page 27: Flat Panel Screen Specifications

    AFOLUX CX Series Flat Panel PC 1.4.4 Flat Panel Screen Specifications The AFOLUX CX series come with a TFT LCD monitor at the front of the flat panel PC (see Figure 1-1). The specifications for the LCD monitor are shown in Table 1-4 below.

  • Page 28: Touch Screen Specifications

    AFOLUX CX Series Flat Panel PC 1.4.5 Touch Screen Specifications The AFOLUX CX series come with an analog resistive type touch panel. Table 1-5 lists the touch panel specifications. SPECIFICATION AFL-15A-CX AFL-17A-CX AFL-19A-CX PANJIT 1150508B PANJIT 1171505A PANJIT 1190503A Model...

  • Page 29: Bluetooth Module Specifications

    AFOLUX CX Series Flat Panel PC 1.4.6 Bluetooth Module Specifications The AFOLUX CX series come with a Bluetooth module. The technical specifications of the Bluetooth module are listed in Table 1-6. Specification Bluetooth Module Bluetooth v2.0 Standard 2.402GHz~2.480GHz unlicensed ISM band...

  • Page 30: Optional Gprs Module Specifications

    AFOLUX CX Series Flat Panel PC 1.4.7 Optional GPRS Module Specifications The GPRS module is one of the OEM options for the AFOLUX CX series. The technical specifications of the GPRS module are listed in Table 1-7. Specification GPRS Module...

  • Page 31: Dimensions

    AFOLUX CX Series Flat Panel PC 1.5 Dimensions 1.5.1 AFL-15A-CX Dimensions The dimensions of the AFL-15A-CX flat panel PC are shown in Figure 1-5 below. Figure 1-5: AFL-15A-CX Dimensions (units in mm) Page 31...

  • Page 32: Afl-17A-Cx Dimensions

    AFOLUX CX Series Flat Panel PC 1.5.2 AFL-17A-CX Dimensions The dimensions of the AFL-17A-CX flat panel PC are shown in Figure 1-6 below. Figure 1-6: AFL-17A-CX Dimensions (units in mm) Page 32...

  • Page 33: Afl-19A-Cx Dimensions

    AFOLUX CX Series Flat Panel PC 1.5.3 AFL-19A-CX Dimensions The dimensions of the AFL-19A-CX flat panel PC are shown in Figure 1-7 below. Figure 1-7: AFL-19A-CX Dimensions (units in mm) Page 33...
  • Page 34 AFOLUX CX Series Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 34...

  • Page 35: Motherboard

    AFOLUX CX Series Flat Panel PC Chapter Motherboard Page 35...

  • Page 36: Introduction

    AFOLUX CX Series Flat Panel PC 2.1 Introduction The AFOLUX CX series flat screen PC contains the AFLMB-CX700 motherboard. The motherboard is the heart of any computer and is responsible for transmitting, receiving and processing data as well as driving the different onboard devices. This chapter gives a brief introduction to the AFLMB-CX700 motherboard.

  • Page 37: System Chipset

    AFOLUX CX Series Flat Panel PC 2.3 System Chipset The AFLMB-CX700 motherboard has a preinstalled VIA CX-700M system chipset. The system chipset features are listed below. 533MB/sec Front Side Bus Supports up to 4GB DDR2 533/400MHz or DDR400/333/266MHz SDRAM Integrated VIA UniChrome Pro Graphics Chromotion™...

  • Page 38: Ethernet Controller Specifications

    AFOLUX CX Series Flat Panel PC 2.5 Ethernet Controller Specifications 2.5.1 Overview A highly integrated and cost-effective single-chip, fast RealTek RTL8110SC GbE Ethernet controller is interfaced through first the PCI bus to the CPU and system chipset. The RealTek RTL8110SC controller provides 10Mbps, 100Mbps or 1000Mbps Ethernet connectivity to the AFLMB-CX700.

  • Page 39: Peripheral Device Interfaces, Connectors, And Slots

    Many of the peripheral device connectors listed below are not connected to any devices. These connectors are reserved for OEM customizations. For a customized option, please contact the vendor, reseller or IEI sales representative. 2.6.2 Internal Slots The slots listed below can all be found on the AFLMB-CX700 motherboard.

  • Page 40: External Peripheral Device Connectors

    AFOLUX CX Series Flat Panel PC Figure 2-1: AFLMB-CX700 Connector Overview 2.6.4 External Peripheral Device Connectors The peripheral device connectors listed below are located on the rear panel of the AFLMB-CX700 motherboard. 2 x Ethernet connectors 2 x USB connectors...

  • Page 41: Installation

    AFOLUX CX Series Flat Panel PC Chapter Installation Page 41...

  • Page 42: Installation Precautions

    AFOLUX CX Series Flat Panel PC 3.1 Installation Precautions When installing the flat panel PC, please follow the precautions listed below: Power turned off: When installing the flat panel PC, make sure the power is off. Failing to turn off the power may cause severe injury to the body and/or damage to the system.

  • Page 43: Installation And Configuration Steps

    AFOLUX CX Series Flat Panel PC 3.3 Installation and Configuration Steps The following installation steps must be followed. Unpack the flat panel PC Step 1: Install CF card Step 2: Install HDD Step 3: Mount the flat panel PC Step 4:...

  • Page 44: Packing List

    AFOLUX CX Series Flat Panel PC Pull the plastic cover off the flat panel PC. Step 6: Make sure all the components listed in the packing list are present. Step 7: Step 0: 3.4.1 Packing List The AFOLUX CX flat panel PC is shipped with the following components:...

  • Page 45: Cf Card Installation

    3.5 CF Card Installation The AFOLUX CX series has one CF Type II slot inside the rear panel. To install the CF card, follow the instructions below. Remove the retention screws (Figure 3-1, Figure 3-2 and Figure 3-3) and lift...

  • Page 46: Figure 3-1: Afl-15A-Cx Back Cover Retention Screws

    AFOLUX CX Series Flat Panel PC the plastic cover off the flat panel PC. Figure 3-1: AFL-15A-CX Back Cover Retention Screws Figure 3-2: AFL-17A-CX Back Cover Retention Screws Page 46...

  • Page 47: Hdd Installation

    Step 0: 3.6 HDD Installation To install the HDD into the AFOLUX CX series, please follow the steps below: Remove the plastic back cover. See Section 3.5 above. Step 1: Remove the retention screws securing the internal aluminum cover (Figure 3-5,...

  • Page 48: Figure 3-5: Afl-15A-Cx Aluminum Back Cover Retention Screws

    AFOLUX CX Series Flat Panel PC Figure 3-6 and Figure 3-7) and lift the aluminum cover off the panel PC. Figure 3-5: AFL-15A-CX Aluminum Back Cover Retention Screws Figure 3-6: AFL-17A-CX Aluminum Back Cover Retention Screws Page 48...

  • Page 49: Figure 3-7: Afl-19A-Cx Aluminum Back Cover Retention Screws

    AFOLUX CX Series Flat Panel PC Figure 3-7: AFL-19A-CX Aluminum Back Cover Retention Screws Remove the four HDD bracket retention screws (Figure 3-8) and lift the HDD Step 3: bracket off the panel PC. Figure 3-8: AFL-19A-CX HDD Bracket Retention Screws Attach the HDD brackets to the HDD.

  • Page 50: Mounting The System

    AFOLUX CX Series Flat Panel PC 3-9). Figure 3-9: AFL-CX HDD Retention Screws Connect the SATA/IDE cable to the rear of HDD. Step 5: Install the HDD into the panel PC by aligning the retention screw holes in the Step 6: HDD brackets with the retention screw holes on the chassis.

  • Page 51: Wall Mounting

    AFOLUX CX Series Flat Panel PC 3.7.1 Wall Mounting To mount the flat panel PC onto the wall, please follow the steps below. Select the location on the wall for the wall-mounting bracket. Step 1: Carefully mark the locations of the four brackets screw holes on the wall.

  • Page 52: Figure 3-11: Chassis Support Screws

    AFOLUX CX Series Flat Panel PC Carefully insert the screws through the holes and gently pull the monitor Step 8: downwards until the monitor rests securely in the slotted holes (Figure 3-11). Ensure that all four of the mounting screws fit snuggly into their respective slotted holes.

  • Page 53: Arm Mounting

    Figure 3-12: Secure the Panel PC 3.7.2 Arm Mounting The AFOLUX CX series is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 100mm interface pad. To mount the AFOLUX CX series on an arm, please follow the steps below.

  • Page 54: Figure 3-13: Afl-Cx Arm Mounting Retention Screw Holes

    100mm interface pad. If the mounting arm is not VESA compliant it cannot be used to support the AFOLUX CX series flat panel Once the mounting arm has been firmly attached to the surface, lift the flat panel Step 2: PC onto the interface pad of the mounting arm.

  • Page 55: Bottom Panel Connectors

    To connect a LAN cable with an RJ-45 connector, please follow the instructions below. Locate the RJ-45 connectors on the bottom panel of the AFOLUX CX Series. Step 1: Align the connectors. Align the RJ-45 connector on the LAN cable with one of Step 2: the RJ-45 connectors on the bottom panel of the AFOLUX CX Series.

  • Page 56: Serial Device Connection

    AFOLUX CX Series Flat Panel PC 3.8.2 Serial Device Connection The AFOLUX CX Series has two single female DB-9 connectors on the bottom panel for a serial device. Follow the steps below to connect a serial device to the AFOLUX CX Series panel PC.

  • Page 57: Usb Device Connection

    3.8.3 USB Device Connection There are four external USB 2.0 connectors. All connectors are perpendicular to the AFOLUX CX Series. To connect a USB 2.0 or USB 1.1 device, please follow the instructions below. Located the USB connectors. The locations of the USB connectors are shown Step 1: in Chapter 2.
  • Page 58 AFOLUX CX Series Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 58...

  • Page 59: System Maintenance

    AFOLUX CX Series Flat Panel PC Chapter System Maintenance Page 59...

  • Page 60: System Maintenance Introduction

    AFOLUX CX Series Flat Panel PC 4.1 System Maintenance Introduction If the components of the AFOLUX CX series fail they must be replaced, such as the wireless LAN module or the motherboard. Please contact the system reseller or vendor to purchase the replacement parts.

  • Page 61: Figure 4-1: Afl-15A-Cx Aluminum Back Cover Retention Screws

    Bluetooth module GPRS module Inverter The internal aluminum back cover of the AFOLUX CX series must be removed. To remove the aluminum back cover, please follow the steps below. Remove the retention screws securing the internal aluminum cover (Figure 4-1, Step 1: Figure 4-2 and Figure 4-3).

  • Page 62: Figure 4-2: Afl-17A-Cx Aluminum Back Cover Retention Screws

    Figure 4-2: AFL-17A-CX Aluminum Back Cover Retention Screws Figure 4-3: AFL-19A-CX Aluminum Back Cover Retention Screws Lift the aluminum cover off the AFOLUX CX series. The AT/ATX switch on the Step 2: aluminum cover is connected to the motherboard. Please be caution when lifting the cover.

  • Page 63: Memory Module Replacement

    AFOLUX CX Series Flat Panel PC 4.4 Memory Module Replacement The flat panel PC is preinstalled with a 512MB DDR2 memory module. If the memory module is fail, follow the instructions below to replace the memory module. Remove the back cover. See Section 3.5 above.

  • Page 64: Jumper Settings

    AFOLUX CX Series Flat Panel PC Gently pull the spring retainer clips of the SO-DIMM socket out and push the Step 8: rear of the DDR2 memory module down (Figure 4-5). Release the spring retainer clips on the SO-DIMM socket. They clip into place Step 9: and secure the DDR2 memory module in the socket.

  • Page 65: J4: Lcd Voltage Select Jumper Settings

    AFOLUX CX Series Flat Panel PC The motherboard comes with two jumpers. They are listed below. LCD voltage select (J4) COM2 mode (RS-232/485) select (JP7) COM2 mode (RS-232/422/485) select (JP8) Figure 4-6: Jumper Locations 4.5.1 J4: LCD Voltage Select Jumper Settings WARNING! Do not change this voltage.

  • Page 66: Jp7: Com2 Mode Select Jumper Settings

    AFOLUX CX Series Flat Panel PC 4.5.2 JP7: COM2 Mode Select Jumper Settings The COM2 can be selected as RS-232 or RS-485. Description Short 1-2 RS-232 Default Short 2-3 RS-485 Table 4-2: COM2 Mode Select Jumper Settings 4.5.3 JP8: COM2 Mode Select Jumper Settings The COM2 can be selected as RS-232 or RS-485.

  • Page 67: Ami Bios Setup

    AFOLUX CX Series Flat Panel PC Chapter AMI BIOS Setup Page 67...

  • Page 68: Introduction

    AFOLUX CX Series Flat Panel PC 5.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 69: Getting Help

    AFOLUX CX Series Flat Panel PC F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help...

  • Page 70: Main

    AFOLUX CX Series Flat Panel PC 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components.

  • Page 71: Advanced

    AFOLUX CX Series Flat Panel PC Count: The number of CPUs on the motherboard System Memory: Displays the auto-detected system memory. Lists memory size Size: The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 72: Cpu Configuration

    AFOLUX CX Series Flat Panel PC BIOS Menu 2: Advanced 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. Page 72...

  • Page 73: Ide Configuration

    AFOLUX CX Series Flat Panel PC BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Manufacturer: Lists the name of the CPU manufacturer Brand String: Lists the brand name of the CPU being used...

  • Page 74: Menu 4: Ide Configuration

    AFOLUX CX Series Flat Panel PC BIOS Menu 4: IDE Configuration IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices. BIOS displays the status of the auto detected IDE devices. The following IDE devices are detected and are...

  • Page 75: Ide Master, Ide Slave

    AFOLUX CX Series Flat Panel PC 5.3.2.1 IDE Master, IDE Slave Use the IDE Master and IDE Slave configuration menu to view both primary and secondary IDE device details and configure the IDE devices connected to the system. BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out”...

  • Page 76: Type [Auto]

    AFOLUX CX Series Flat Panel PC amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt. PIO Mode: Indicates the PIO mode of the installed device.

  • Page 77: Lba/Large Mode [Auto]

    AFOLUX CX Series Flat Panel PC LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB.

  • Page 78: Dma Mode [Auto]

    AFOLUX CX Series Flat Panel PC PIO mode 0 selected with a maximum transfer rate of 3.3MBps PIO mode 1 selected with a maximum transfer rate of 5.2MBps PIO mode 2 selected with a maximum transfer rate of 8.3MBps PIO mode 3 selected with a maximum transfer rate of 11.1MBps PIO mode 4 selected with a maximum transfer rate of 16.6MBps...

  • Page 79: Auto]

    AFOLUX CX Series Flat Panel PC Ultra DMA mode 0 selected with a maximum data transfer UDMA1 rate of 16.6MBps Ultra DMA mode 1 selected with a maximum data transfer UDMA1 rate of 25MBps Ultra DMA mode 2 selected with a maximum data transfer UDMA2 rate of 33.3MBps...

  • Page 80: Super Io Configuration

    AFOLUX CX Series Flat Panel PC Prevents the BIOS from using 32-bit data transfers. Disabled Allows BIOS to use 32-bit data transfers on supported Enabled EFAULT hard disk drives. 5.3.3 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the FDD controllers, parallel ports and serial ports.

  • Page 81: Serial Port1 Irq [4]

    AFOLUX CX Series Flat Panel PC Serial Port 1 I/O port address is 2F8 Serial Port 1 I/O port address is 3E8 Serial Port 1 I/O port address is 2E8 Serial Port1 IRQ [4] Use the Serial Port1 IRQ option to select the interrupt address for serial port 1.

  • Page 82: Serial Port3 Irq [11]

    AFOLUX CX Series Flat Panel PC Serial port 3 I/O port address is 2E8 Serial port 3 I/O port address is 2E0 Serial port 3 I/O port address is 2D8 Serial port 3 I/O port address is 2D0 Serial Port3 IRQ [11] Use the Serial Port3 IRQ option to select the interrupt address for serial port 3.

  • Page 83: Acpi Configuration

    AFOLUX CX Series Flat Panel PC Serial port 4 IRQ address is 3 EFAULT 5.3.4 ACPI Configuration The ACPI Configuration menu (BIOS Menu 7) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS Menu 7: ACPI Configuration...

  • Page 84: Apm Configuration

    AFOLUX CX Series Flat Panel PC 5.3.5 APM Configuration The APM Configuration menu (BIOS Menu 8) allows the advanced power management options to be configured. BIOS Menu 8:Advanced Power Management Configuration AT/ATX Power [ATX] Use the AT/ATX Power option to select the power supply that is connected to the system.

  • Page 85: Restore On Ac Power Loss [Power Off]

    AFOLUX CX Series Flat Panel PC turned on or off When the power button is pressed the system goes into Suspend suspend mode Restore on AC Power Loss [Power Off] Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.

  • Page 86: Remote Access Configuration

    AFOLUX CX Series Flat Panel PC Resume On RTC Alarm [Disabled] Use the Resume On RTC Alarm option to specify the time the system should be roused from a suspended state. The real time clock (RTC) cannot generate a wake...

  • Page 87: Menu 9: Remote Access Configuration [Advanced]

    AFOLUX CX Series Flat Panel PC BIOS Menu 9: Remote Access Configuration [Advanced] Remote Access [Enabled] Use the Remote Access option to enable or disable access to the remote functionalities of the system. Remote access is disabled. Disabled Remote access configuration options shown below...

  • Page 88: Terminal Type

    AFOLUX CX Series Flat Panel PC Terminal Type VT-UTF8 Combo Key Support These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option allows to select the serial port used for remote access. System is remotely accessed through COM1...

  • Page 89: Usb Configuration

    AFOLUX CX Series Flat Panel PC NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.

  • Page 90: Menu 10: Usb Configuration

    AFOLUX CX Series Flat Panel PC BIOS Menu 10: USB Configuration USB Devices Enabled The USB Devices Enabled field lists the USB devices that are enabled on the system USB 1.1 Ports Configuration [USB 6 Ports] Use the USB Ports Configuration BIOS option to specify how many of the USB ports are USB 1.1 compatible.

  • Page 91: Usb Mass Storage Device Configuration

    AFOLUX CX Series Flat Panel PC USB 2.0 Ports Enable [Enabled] Use the USB 2.0 Ports Enable BIOS option to enable or disable the USB 2.0 ports USB 2.0 ports disabled Disabled USB 2.0 ports enabled Enabled EFAULT Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.

  • Page 92: Menu 11: Usb Mass Storage Device Configuration

    AFOLUX CX Series Flat Panel PC BIOS Menu 11: USB Mass Storage Device Configuration USB Mass Storage Reset Delay [20 Sec] Use the USB Mass Storage Reset Delay option to set the number of seconds POST waits for the USB mass storage device after the start unit command.

  • Page 93: Device

    AFOLUX CX Series Flat Panel PC Device ## The Device## field lists the USB devices that are connected to the system. Emulation Type [Auto] Use the Emulation Type BIOS option to specify the type of emulation BIOS has to provide for the USB device.

  • Page 94: Pci/Pnp

    AFOLUX CX Series Flat Panel PC 80h or above. Assumes the CD-ROM is formatted as bootable CDROM media. All the devices that support block sizes greater than 512 bytes can only be booted using this option. 5.4 PCI/PnP Use the PCI/PnP menu (BIOS Menu 10) to configure advanced PCI and PnP settings.

  • Page 95: Menu 12: Pci/Pnp Configuration

    AFOLUX CX Series Flat Panel PC BIOS Menu 12: PCI/PnP Configuration IRQ# [Available] Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device. The specified IRQ is available to be used by Available PCI/PnP devices...

  • Page 96: Dma Channel# [Available]

    AFOLUX CX Series Flat Panel PC IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device. The specified DMA is available to be used by...

  • Page 97: Boot

    AFOLUX CX Series Flat Panel PC 54KB reserved for legacy ISA devices 5.5 Boot Use the Boot menu (BIOS Menu 13) to configure system boot options. BIOS Menu 13: Boot 5.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 13) to configure advanced system boot options.

  • Page 98: Menu 14: Boot Settings Configuration

    AFOLUX CX Series Flat Panel PC BIOS Menu 14: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Some POST procedures are skipped to decrease...

  • Page 99: Addon Rom Display Mode [Force Bios]

    AFOLUX CX Series Flat Panel PC AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed. The system forces third party BIOS to display Force BIOS EFAULT during system boot.

  • Page 100: Boot Device Priority

    AFOLUX CX Series Flat Panel PC On Board Lan Function [Lan1+Lan2] Use the On Board Lan Function option to enable or disable the on-board LAN1 or LAN2 controller. The LAN1 and LAN2 controllers are disabled. All Disabled Only the LAN1 controller is enabled.

  • Page 101: Hard Disk Drives

    AFOLUX CX Series Flat Panel PC BIOS Menu 15: Boot Device Priority Settings 5.5.3 Hard Disk Drives Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs. When the menu is opened, the HDDs connected to the system are listed as shown below:...

  • Page 102: Removable Drives

    AFOLUX CX Series Flat Panel PC BIOS Menu 16: Hard Disk Drives 5.5.4 Removable Drives Use the Removable Drives menu (BIOS Menu 17) to specify the boot sequence of the available FDDs. When the menu is opened, the FDDs connected to the system are listed...

  • Page 103: Security

    AFOLUX CX Series Flat Panel PC The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available FDDs is shown. Select the first FDD the system boots from. If the “1st Drive” is not used for booting this option may be disabled.

  • Page 104: Menu 18: Security

    AFOLUX CX Series Flat Panel PC BIOS Menu 18: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password.

  • Page 105: Chipset

    AFOLUX CX Series Flat Panel PC 5.7 Chipset Use the Chipset menu (BIOS Menu 19) to access the NorthBridge and SouthBridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 106: Display Device Select [Crt+Lcd]

    AFOLUX CX Series Flat Panel PC 16MB 32MB 64MB EFAULT 128MB Display Device Select [CRT+LCD] Use the Display Device Select BIOS feature to determine what displays are used. Dual display functionality is enabled here. Dual display configuration options are listed below:...

  • Page 107: Exit

    AFOLUX CX Series Flat Panel PC The on-board high definition audio controller is Disabled disabled. The on-board high definition audio controller is Auto EFAULT automatically detected and enabled. 5.8 Exit Use the Exit menu (BIOS Menu 20) to load default BIOS values, optimal failsafe values and to save configuration changes.
  • Page 108 AFOLUX CX Series Flat Panel PC Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system. Discard Changes Use the Discard Changes option to discard the changes and remain in the BIOS configuration setup program.

  • Page 109: Ainterface Connectors

    AFOLUX CX Series Flat Panel PC Appendix Interface Connectors Page 109...

  • Page 110: Peripheral Interface Connectors

    AFOLUX CX Series Flat Panel PC Peripheral Interface Connectors The AFL-CX series flat panel PC motherboard, the AFLMB-CX700 comes with a number of peripheral interface connectors and configuration jumpers listed in Chapter 2. The pinouts for these connectors are listed below: PIN NO.
  • Page 111 AFOLUX CX Series Flat Panel PC ACTIVE# PDIAG# CARD DETECT2 GROUND TableeA-3: CFII Socket Pinouts (CN10) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD1 DTR1 DSR1 RTS1 CTS1 TableeA-4: COM1 Connector Pinouts (CN17) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD2 DTR2...
  • Page 112 AFOLUX CX Series Flat Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V +12V COMRI1 COMRI2 TableeA-7: COM1/2 RI Connector Pinouts (JP6) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V COMRI4 COMRI4 COMRI4 TableeA-8: COM4 RI Connector Pinouts (JP3) PIN NO.
  • Page 113 AFOLUX CX Series Flat Panel PC VSYNC HSYNC TableeA-11: CRT Connector Pinouts (CN5) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V OUT0 INT1 OPT1 TableeA-12: GPIO Connector Pinouts (JP2) PIN NO. DESCRIPTION +12V TableeA-13: HDD Power Connector Pinouts (CN9) PIN NO.
  • Page 114 AFOLUX CX Series Flat Panel PC INTERRUPT HDC CS0# HDC CS1# HDD ACTIVE# GROUND GROUND TableeA-14: IDE Connector Pinouts (CN11) PIN NO. DESCRIPTION VCC5 MOUSE DATA MOUSE CLOCK KEYBOARD DATA KEYBOARD CLOCK TableeA-15: Keyboard/Mouse Connector Pinouts (CN3) PIN NO. DESCRIPTION...
  • Page 115 AFOLUX CX Series Flat Panel PC LDC0+ LDC0- LDC7+ LDC7- LCLK2+ LCLK2- LDC6+ LDC6- LDC5+ LDC5- LDC4+ LDC4- TableeA-17: LVDS Connector Pinouts (LVDS1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION TableeA-18: MIC-In Connector Pinouts (CN13) PIN NO. DESCRIPTION TableeA-19: Power Connector Pinouts (CN14) PIN NO.
  • Page 116 AFOLUX CX Series Flat Panel PC DESCRIPTION DESCRIPTION HDDLED PWRBT_SW RESET_SW EXTSMI TableeA-21: System Panel Connector Pinouts (CN8) PIN NO. DESCRIPTION PIN NO. DESCRIPTION FUSEVCC1 -USB3 +USB2 +USB3 -USB2 FUSEVCC1 TableeA-22: USB Connector Pinouts (USB1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION...

  • Page 117: Bbios Configuration Options

    AFOLUX CX Series Flat Panel PC Appendix BIOS Configuration Options Page 117...
  • Page 118 AFOLUX CX Series Flat Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 5. Menu 1: Main ....................70 　 System Overview ....................70 　 System Time [xx:xx:xx] ..................71 　 System Date [xx/xx/xx] ..................71 Menu 2: Advanced ....................72 Menu 3: CPU Configuration ..................73...
  • Page 119 AFOLUX CX Series Flat Panel PC Menu 7: ACPI Configuration ..................83 　 Suspend Mode [S1(POS)] ..................83 Menu 8:Advanced Power Management Configuration..........84 　 AT/ATX Power [ATX] .....................84 　 Power Button Mode [On/Off] ................84 　 Restore on AC Power Loss [Power Off] ..............85 　...
  • Page 120 AFOLUX CX Series Flat Panel PC 　 USB Mass Storage Reset Delay [20 Sec] .............92 　 Device ## ....................93 　 Emulation Type [Auto] ..................93 Menu 12: PCI/PnP Configuration ................95 　 IRQ# [Available]....................95 　 DMA Channel# [Available] ..................96 　 Reserved Memory Size [Disabled] ...............96 Menu 13: Boot ....................97...
  • Page 121 AFOLUX CX Series Flat Panel PC 　 Discard Changes....................108 　 Load Optimal Defaults..................108 　 Load Failsafe Defaults..................108 Page 121...
  • Page 122 AFOLUX CX Series Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 122...

  • Page 123: Csoftware Drivers

    AFOLUX CX Series Flat Panel PC Appendix Software Drivers Page 123...

  • Page 124: Remote Management Tool

    AFOLUX series. For information about configuring the operating system, adding remote management tools or additional software and drivers, refer to the software user manuals on IEI AFOLUX series Utility CD that came with the AFOLUX series flat panel PC.

  • Page 125: Driver Installation

    AFOLUX CX Series Flat Panel PC C.2.2 Driver Installation To install the touch panel software driver, please follow the steps below. Insert the driver CD that came with the AFOLUX series into the CD drive. Step 1: Once the CD drive is installed, the screen in Figure C-1 appears.
  • Page 126 AFOLUX CX Series Flat Panel PC Once the OS system is selected, a welcome screen appears (Figure C-2). To Step 4: continue the installation process click N Figure C-2: Welcome Screen The license agreement shown in Figure C-3 appears. Agree to the license by Step 5: selecting “I accept the terms in the license agreement”.
  • Page 127 AFOLUX CX Series Flat Panel PC Figure C-4: Ready to Install the Program Click I to continue. The Installing PenMount DMC9000 screen appears Step 7: NSTALL as the program is installed (Figure C-5). Figure C-5: Installing PenMount DMC9000 The user is then prompted to select to restart the computer now or later (Figure Step 8: C-6).

  • Page 128: Touch Panel Driver Configuration

    AFOLUX CX Series Flat Panel PC Figure C-6: Reboot the Computer C.2.3 Touch Panel Driver Configuration To configure the touch panel driver options, refer to the PenMount user manual located on the driver installation CD. Page 128...

  • Page 129: Dwatchdog Timer

    AFOLUX CX Series Flat Panel PC Appendix Watchdog Timer Page 129...
  • Page 130 NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 131 AFOLUX CX Series Flat Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: BX, A61H ;setting the time-out value AX, 05 ;time-out value is 5 seconds ;...
  • Page 132 AFOLUX CX Series Flat Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 132...

  • Page 133: Ehazardous Materials Disclosure

    AFOLUX CX Series Flat Panel PC Appendix Hazardous Materials Disclosure Page 133...

  • Page 134: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    AFOLUX CX Series Flat Panel PC E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 135 AFOLUX CX Series Flat Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Diphenyl Ethers Chromium Biphenyls (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly...
  • Page 136 AFOLUX CX Series Flat Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。...

  • Page 137: Findex

    AFOLUX CX Series Flat Panel PC Index Page 137...
  • Page 138 AFOLUX CX Series Flat Panel PC Ａ Ｆ ABS/PC plastic frame ........4 FDD............64 AC power adapter........5 FSB ............57 ACPI ............67 Ｇ Active Area..........11 ATA ..........97, 98, 99 GPRS module ......3, 14, 26, 45 Audio............10 Ｈ Ｂ HDD ............ 33, 98 back cover ...........31, 47...
  • Page 139 AFOLUX CX Series Flat Panel PC Ｒ Ｕ Reset button ........5, 9, 24 USB........73, 74, 75, 100 Resolution..........8, 11 external USB device connection ...41 Response Time.......... 11 USB 2.0......... 4, 5, 9, 75 RJ-45 connection........39 USB connectors .........24 single connector ........39...

Table of Contents
