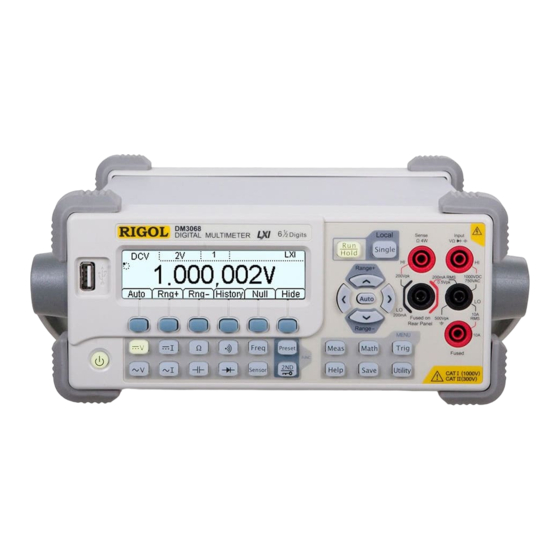

- Page 1 RIGOL Performance Verification Guide DM3068 Digital Multimeter Dec. 2014 RIGOL Technologies, Inc.
-
Page 3: Guaranty And Declaration
Notices RIGOL products are covered by P.R.C. and foreign patents, issued and pending. RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material. -
Page 4: Safety Requirement
Do not insert anything into the holes of the fan to avoid damaging the instrument. Use Proper Fuse. Please use the specified fuses. Avoid Circuit or Wire Exposure. Do not touch exposed junctions and components when the unit is powered. DM3068 Performance Verification Guide... - Page 5 RIGOL Do Not Operate With Suspected Failures. If you suspect damage occurs to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
- Page 6 4) The current input into the 10A terminal cannot exceed 13.5A; otherwise, the internal fuse of the multimeter will be burned out. The current input into the LO Sense/200mA terminal cannot exceed 650mA; otherwise, the current input fuse on the rear panel may be burned out. DM3068 Performance Verification Guide...
- Page 7 DM3068 may be used to make measurements with the HI and LO inputs connected to mains in such devices (up to 300VAC), or to the branch socket. However, the HI and LO inputs of DM3068 cannot be connected to mains of permanently installed electrical devices such as a main circuit-breaker panel, sub-panel disconnected box or wired motors.
-
Page 8: Safety Terms And Symbols
It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product. Symbols Used on the Product. These symbols may appear on the product: Hazardous Safety Protective Chassis Test Warning Earth Ground Ground Voltage Terminal DM3068 Performance Verification Guide... -
Page 9: Allgemeine Sicherheits Informationen
Berühren Sie keine unisolierten Verbindungen oder Baugruppen, während das Gerät in Betrieb ist. Betreiben Sie das Gerät nicht im Fehlerfall. Wenn Sie am Gerät einen Defekt vermuten, sorgen Sie dafür, bevor Sie das Gerät wieder betreiben, DM3068 Performance Verification Guide... - Page 10 RIGOL dass eine Untersuchung durch RIGOL autorisiertem Personal durchgeführt wird. Jedwede Wartung, Einstellarbeiten oder Austausch von Teilen am Gerät, sowie am Zubehör dürfen nur von RIGOL autorisiertem Personal durchgeführt werden. Belüftung sicherstellen. Unzureichende Belüftung kann zu Temperaturanstiegen und somit zu thermischen Schäden am Gerät führen.
-
Page 11: Sicherheits Begriffe Und Symbole
Verletzung oder Gefährdung hin und bedeutet, dass eine mögliche Beschädigung des Instruments oder anderer Gegenstände auftreten kann. Symbole auf dem Produkt. Diese Symbole können auf dem Produkt erscheinen: Gefährliche Sicherheits- Schutz-erde Gehäusemasse Erde Spannung Hinweis DM3068 Performance Verification Guide... -
Page 12: Document Overview
RIGOL Document Overview This manual guides users to correctly test the performance specifications of RIGOL DM3068 digital multimeter. For the operation method of the instrument, please refer to the corresponding User’s Guide. Main contents in this manual: Chapter 1 Test Overview This chapter introduces the preparations of the performance verification test. -
Page 13: Table Of Contents
Gain Test ........................2-2 Appendix Test Record Form ..................... 1 Zero Offset ........................1 DC Gain ..........................2 AC Voltage Gain ........................ 3 AC Current Gain ........................ 4 Frequency Gain ......................... 5 Capacitance Gain ....................... 5 DM3068 Performance Verification Guide... -
Page 15: Chapter 1 Test Overview
Chapter 1 Test Overview Chapter 1 Test Overview Test Type The performance tests are used to check the measurement performance of the multimeter. DM3068 supports self-test, quick test and routine test. Self-Test Self-test is a series of internal calibration tests which can be used to reliably determine the usability of the instrument. -
Page 16: Quick Test
The quick test is not applicable to the instruments with abnormalities in some certain functions. The multimeter that fails to pass the quick test must be calibrated or repaired before it is put back into use. DM3068 Performance Verification Guide... -
Page 17: Routine Test
<1/5 of the 24 hour specification of the AC Current Fluke 5520A instrument <1/5 of the 24 hour specification of the Frequency Fluke 5520A instrument <1/5 of the 24 hour specification of the Capacitance Fluke 5520A instrument DM3068 Performance Verification Guide... -
Page 18: Test Conditions
Ground the shield of the twisted pair and the shield of the coaxial cable. Unless otherwise noted, ground the LO terminal of the calibrator. As DM3068 is a high-precision measuring instrument, special attention should be paid to the additional error caused by the calibration source and calibration operations. In ideal situation, the accuracy of the verification test and calibration standard source must be at least four times higher than that of the test instrument. -
Page 19: Input Connections
Specifications The allowable error range of each test item, calculated based on the specification of DM3068, is DM3068 User’s Guide provided in chapter 2. For the technical specifications of DM3068, refer to DM3068 Data Sheet (can be downloaded from www.rigol.com). -
Page 21: Chapter 2 Performance Verification Test
RIGOL Chapter 2 Performance Verification Test Chapter 2 Performance Verification Test This chapter introduces the routine test methods of DM3068 performance verification test and the quick test methods are also contained. Zero Offset Test The zero offset test inspects the meter’s offset performance at the zero point. It is necessary only when a regular offset occurs to a function and range. -
Page 22: Gain Test
±40μV ±52μV ±82μV 2.000000V ±40μV ±52μV ±82μV 20.00000V ±480μV ±700μV ±900μV 20.00000V -20V ±480μV ±700μV ±900μV 200.0000V 200V ±5.2mV ±9.2mV ±11.2mV 200.0000V -200V ±5.2mV ±9.2mV ±11.2mV 1000.000V 1000V ±26mV ±50mV ±65mV 1000.000V -1000V ±26mV ±50mV ±65mV DM3068 Performance Verification Guide... - Page 23 24 hours 90 days 1 year 200.0000mV 200mV 10Hz ±760μV ±780μV ±780μV 200mV 20kHz ±140μV ±180μV ±200μV 200mV 50kHz ±300μV ±320μV ±340μV 200mV 100kHz ±1.26mV ±1.36mV ±1.36mV 200mV 300kHz ±9mV ±9mV ±9mV 2.000000V 10Hz ±7.4mV ±7.6mV ±7.6mV DM3068 Performance Verification Guide...
- Page 24 ±2.1μA 1kHz ±3.2μA ±3.2μA ±3.2μA 2.000000mA 5kHz ±3.2μA ±3.2μA ±3.2μA 10kHz ±9μA ±9μA ±9μA 20.00000mA 20mA 1kHz ±42μA ±42μA ±42μA 20mA 5kHz ±42μA ±42μA ±42μA 20mA 10kHz ±210μA ±210μA ±210μA 200.0000mA 200mA 1kHz ±280μA ±280μA ±280μA DM3068 Performance Verification Guide...
- Page 25 (6) Repeat steps (2), (3), (4) and (5) to finish the test. Table 2-6 Capacitance test items Allowable Error Range Range Test Signal Quick Test 1 year 2.000nF ±90pF 20.00nF 20nF ±260pF 200.0nF 200nF ±2.6nF 2.000uF ±26nF 20.00uF 20uF ±260nF DM3068 Performance Verification Guide...
- Page 26 RIGOL Chapter 2 Performance Verification Test 200.0uF 200uF ±2.6μF 2.000mF ±26μF 20.00mF 20mF ±260μF 100.0mF 100mF ±3.2mF Note : Specifications are obtained under "REL" operation. Note : Q marks the optional quick test points. DM3068 Performance Verification Guide...
-
Page 27: Appendix Test Record Form
: Specifications are for the 4-wire resistance function or the 2-wire resistance function using “REL” operation. If the 2-wire resistance function is used without "REL" operation, add 0.2 Ω additional errors. Note : Q marks the optional quick test points. DM3068 Performance Verification Guide... -
Page 28: Dc Gain
±24μA ±66μA ±106μA 2.000000A ±1.4mA ±2mA ±2.4mA 2.000000A ±1.4mA ±2mA ±2.4mA 10.00000A ±11mA ±13mA ±16mA 10.00000A -10A ±11mA ±13mA ±16mA Resistance 200.0000Ω 200Ω ±12mΩ ±24mΩ ±28mΩ 2.000000kΩ 2kΩ ±50mΩ ±180mΩ ±220mΩ 20.00000kΩ 20kΩ ±500mΩ ±1.8Ω ±2.2Ω DM3068 Performance Verification Guide... -
Page 29: Ac Voltage Gain
±3.4mV 100kHz ±12.6mV ±13.6mV ±13.6mV 300kHz ±90mV ±90mV ±90mV 100mV 1kHz ±440μV ±650μV ±660μV 20.00000V 10Hz ±76mV ±78mV ±78mV 20kHz ±16mV ±22mV ±24mV 50kHz ±30mV ±34mV ±40mV 100kHz ±126mV ±136mV ±136mV 3.2V 300kHz ±228mV ±228mV ±228mV DM3068 Performance Verification Guide... -
Page 30: Ac Current Gain
20mA 5kHz ±42μA ±42μA ±42μA 20mA 10kHz ±210μA ±210μA ±210μA 200.0000mA 200mA 1kHz ±280μA ±280μA ±280μA 200mA 5kHz ±280μA ±280μA ±280μA 200mA 10kHz ±900μA ±900μA ±900μA 10mA 10kHz ±520μA ±520μA ±520μA 2.000000A 1kHz ±4.2mA ±4.2mA ±4.2mA DM3068 Performance Verification Guide... -
Page 31: Frequency Gain
200.0nF 200nF ±2.6nF 2.000uF ±26nF 20.00uF 20uF ±260nF 200.0uF 200uF ±2.6μF 2.000mF ±26μF 20.00mF 20mF ±260μF 100.0mF 100mF ±3.2mF Note : Specifications are obtained under "REL" operation. Note : Q marks the optional quick test points. DM3068 Performance Verification Guide...
