Outback Power Systems FLEXnet DC User Manual page 22

METER/DC/SHUNT C
remove
DOWN
METER/DC/SHUNT C
charged
DOWN UP
STATUS/FN/METER
DC firmware revision
000.00/040
DOWN
STATUS/FN/METER
end of meter menu
UP
STATUS/FN
METER SHUNT BATT TOP
STATUS/DC/SHUNT A
max removed
amps
DOWN
0
AH 0kWH
UP TOP
AH 0kWH
TOP
UP TOP
TOP STATUS
STATS
0.9
UP RESET TOP

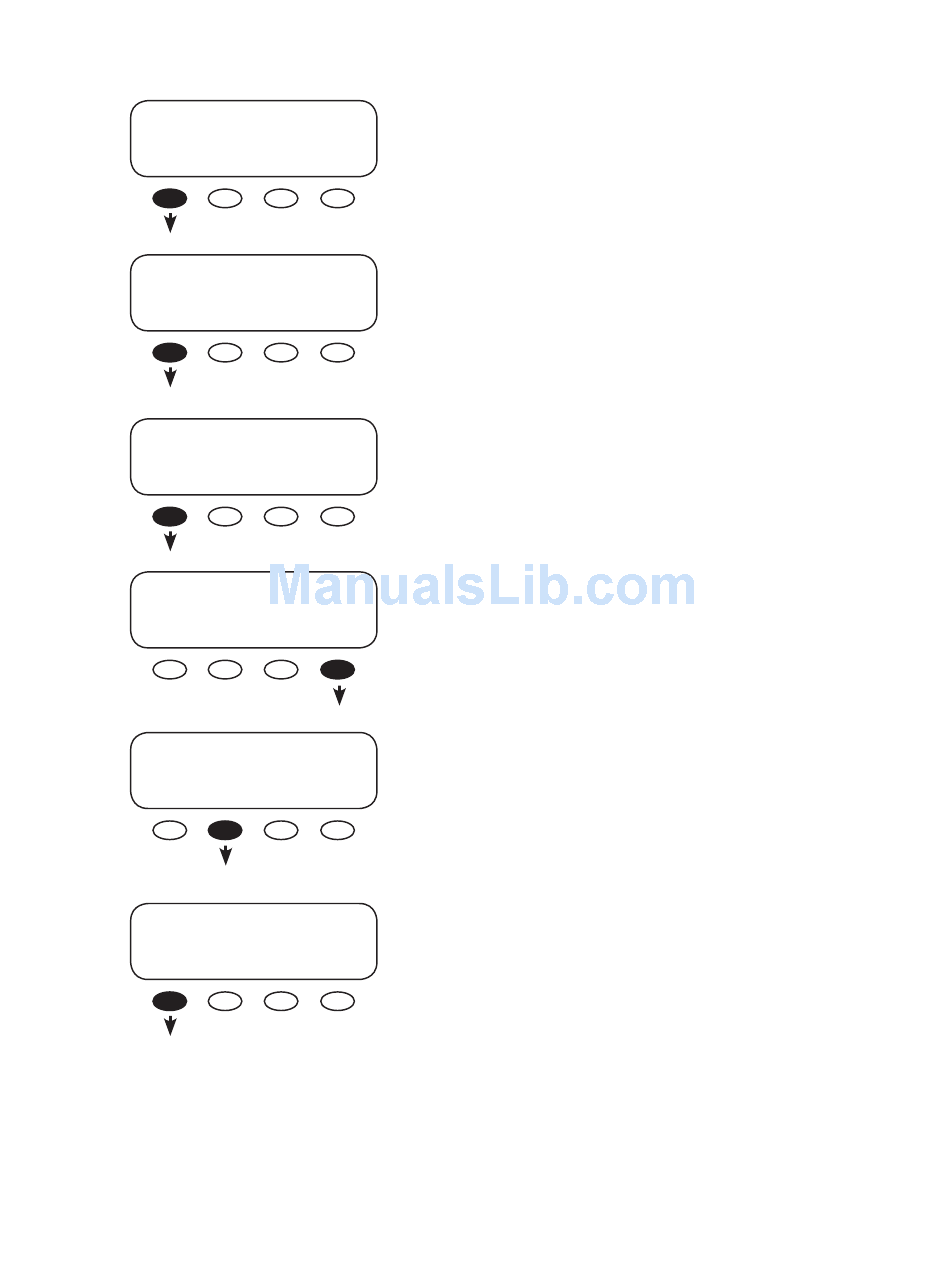

Pressing the <DOWN> soft key brings up the SHUNT
C charged screen.
Pressing the <DOWN> soft key brings up the FN
firmware screen.
Pressing the <DOWN> soft key leads to the end of
the meter menu
Press the <STATUS> soft key to return to the STATUS
screen.
Press the <SHUNT> soft key to view the amps and
kilowatts removed and charged in each shunt
In this example, SHUNT A has detected 0.9 amps
removed. Press the <RESET> soft key to return this
value to 0. Press the <DOWN> soft key to continue
through the menu.
