(Installing the FLEXnet DC continued)

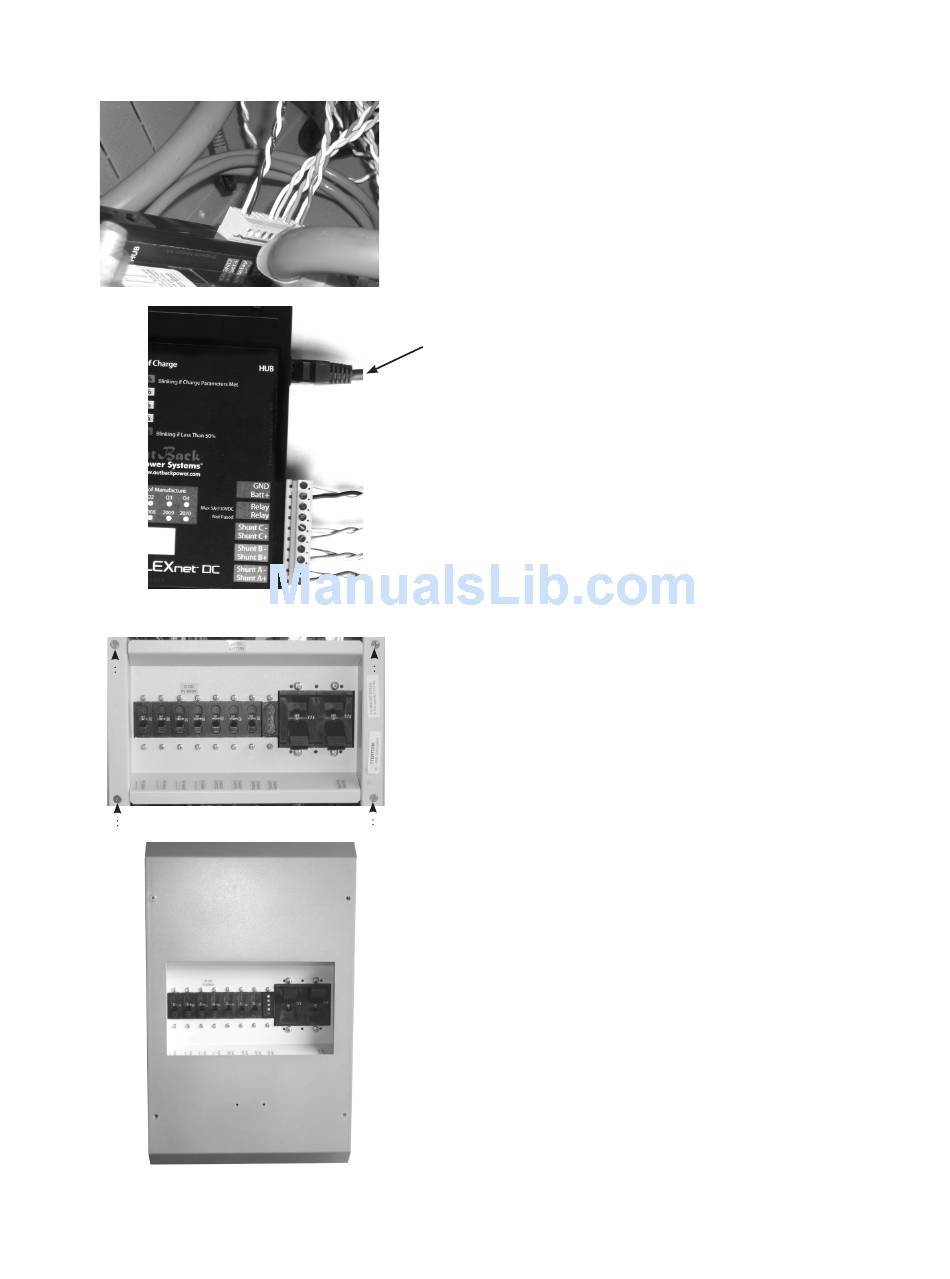

• Insert the 10-pin connector to the wiring block on
the back of the FLEXnet DC.
• Install the CAT5 cable into the RJ45 jack in the back
of the FLEXNet DC. Connect the other end of the
cable to the HUB using Port #2 or higher.
FLEXnet DC removed from the breaker
bracket for clarity.
• Replace the breaker bracket and secure with its
four corner fasteners.
• With all FLEXnet DC wires connected, reinstall the
DC enclosure cover and secure its four Phillips
screws.
• After the cover is installed, reconnect the battery
cables at the battery, turn on all the breakers, and
power up the system.
