2. Fixture exterior view
Standard version
3. Installation
The antenna must be instaled on the fixture to keep declared IP rating of the fixture!
3.1 Rigging the fixture
The fixture can be rigged in any orientation on a truss via the omega holder without altering its operation
characteristics. The mounting bracket allows to adjust desired fixture position (0°-360°). The mounting hole in the
mounting bracket has a diameter of 13 mm.
CitySource 96 (SmartWhite)
Warning for wireless DMX version of the CitySource96!
Ensure that the structure (truss) to which you are attaching
the fixture is secure

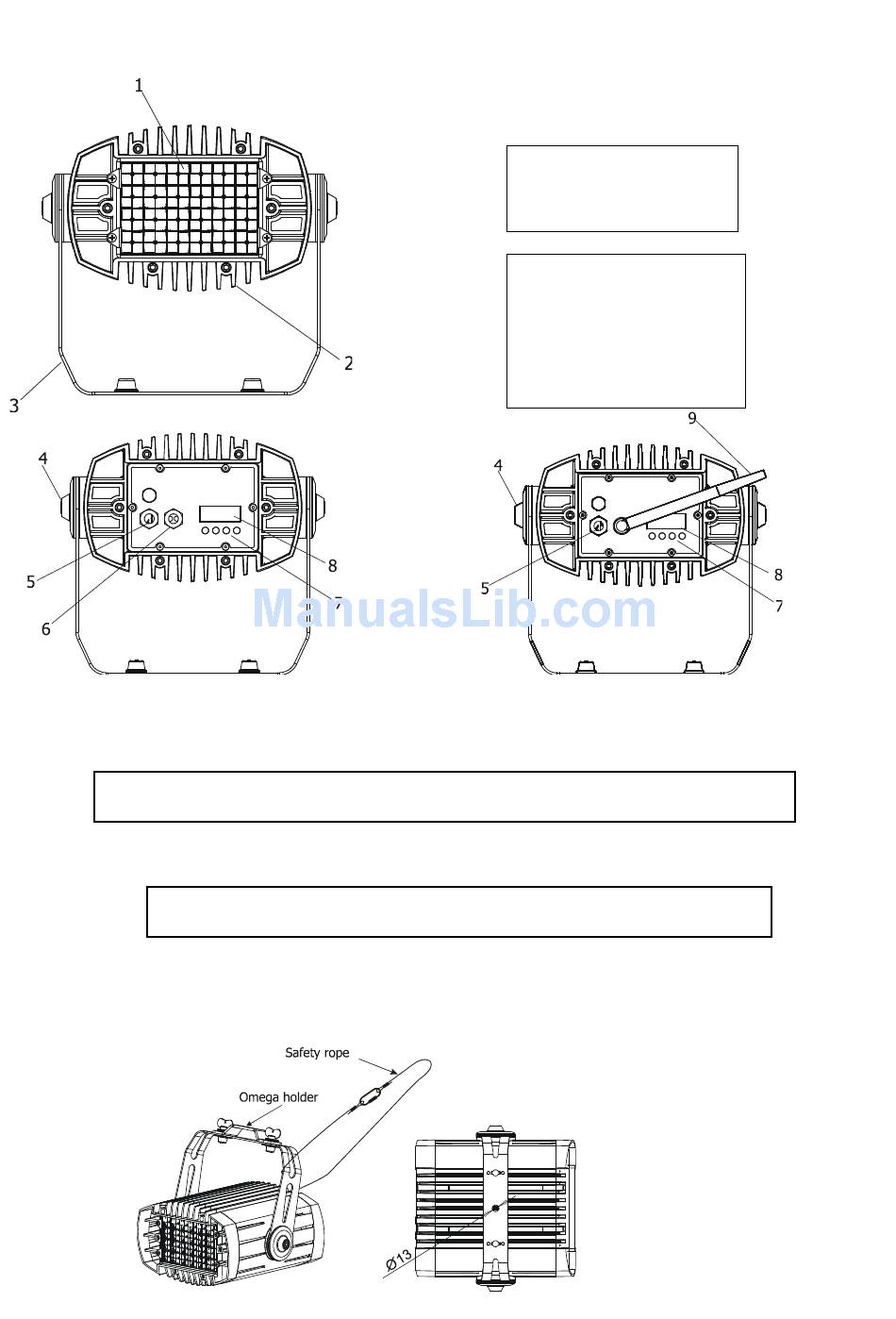

1. Lens array
2. Radiator
3. Mounting bracket
4. Tilt-lock screw
5. Power cable
6. Data cable (DMX in/out)
7. Control buttons
8. LED display
9. Antenna
Wireles DMX version
