Summary of Contents for Robe Calumma Classic M MC

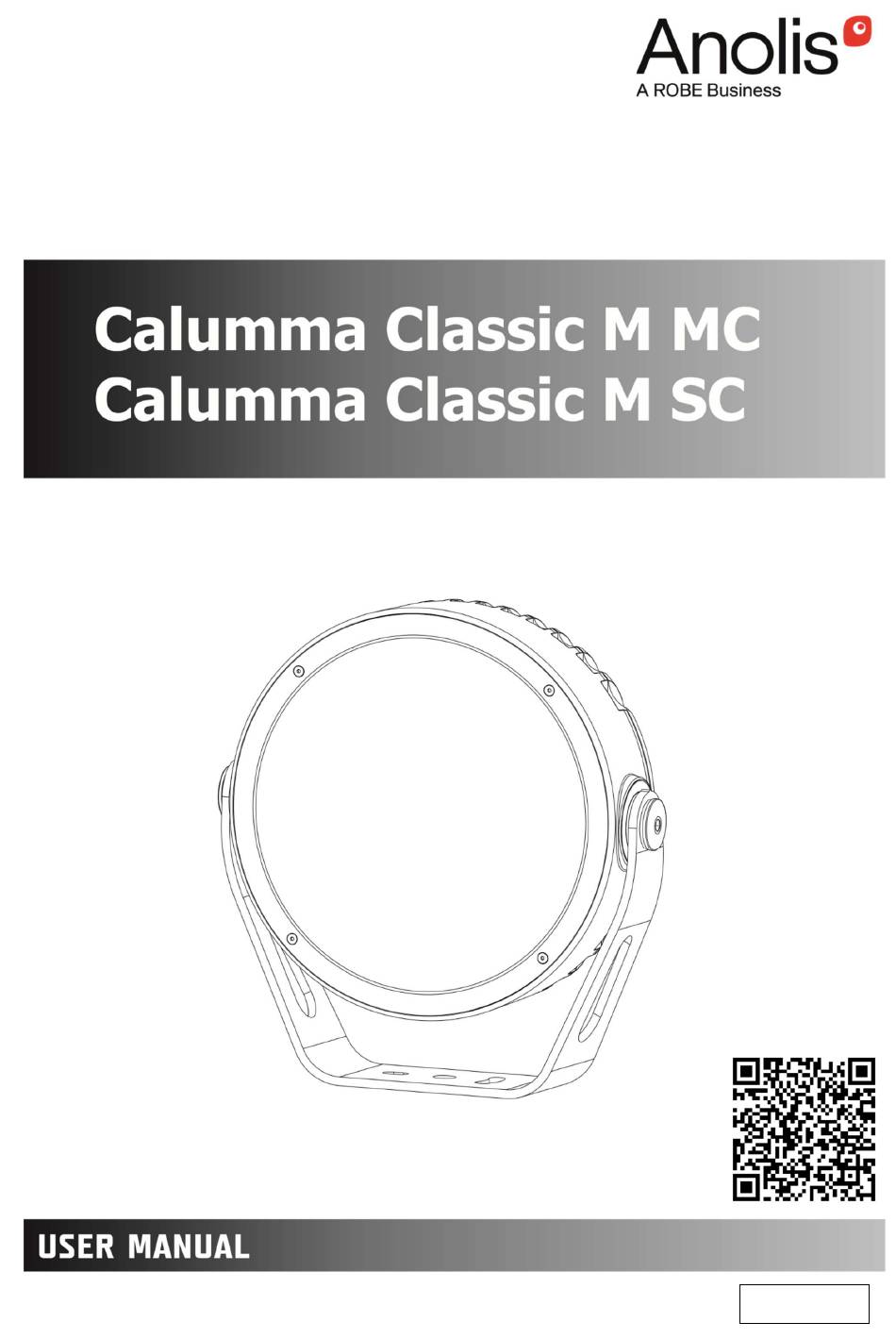

  • Page 1 QR code for user manual Version 1.1...
  • Page 2: Table Of Contents

    Calumma Classic M Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 2.2 Connection to driver ............................. 5 4. Technical specifications .............................. 8 5. Cleaning and maintenance ............................11 5.1 Disposing of the product ............................
  • Page 3: Safety Instructions

    Calumma Classic M FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR CALUMMA CLASSIC M ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual.
  • Page 4: Fixture Exterior View

    Calumma Classic M The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by this standard (e.g. transmitters in surrounding area) before installing the equipment. Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia equipment –...
  • Page 5: Installation

    Calumma Classic M 3. Installation 3.1 Mounting the fixture The Calumma Classic M can be fastened in any orientation on a flat, non-flammable surface by means of mounting yoke (2). The LED module (4) can be tilted +180°/-180°. Use an Allen key 2.5 for adjusting a LED module position. Ensure that the structure to which you are attaching the fixture is secure.
  • Page 6 (optional item). Max. number of connected fixtures to one LED output of the ArcPower driver: Type of Calumma ArcPower 36/ArcPower 72/ArcPower 144 ArcPower Unit Calumma Classic M SC Calumma Classic M MC...
  • Page 7 Calumma Classic M Wiring of cables and connectors Calumma Classic M Chogori (female) to RJ45 adaptor cable ( for indoor use only) Chogori extension cable (male-female)
  • Page 8: Technical Specifications

    Calumma Classic M SC: 60 W +/-10 % (@ 500mA) Optical • Light source: Calumma Classic M MC: 7 x high power multi chip LEDs Calumma Classic M SC: 37 x high power single chip LEDs • Colour variants: Calumma Classic M MC: RGBW, RGBA, PW, on request: TW (2700K-6500K)
  • Page 9 Connection • 0.5m cable (standard) with connector Chogori IP67 Weight • Calumma Classic M MC: 5.77 kg (12.77 lbs) • Calumma Classic M SC: 5.9 kg (13 lbs) Dimensions (All dimensions in mm [inch]) Included items • 1 x Calumma Classic M...
  • Page 10 Calumma Classic M Optional accessories • Connectors (P/N 13051601) Chogori connector, 8-Pin female IP67 (P/N 13051602) Chogori connector, 8-Pin male IP67 • End caps (P/N 13051950) Chogori waterproof cap, male (P/N 13052451) Chogori waterproof Cap, female • CE Outdoor extension cables Chogori (8pin,F)/Chogori (8pin,M) (P/N 13052187) Extension cable CGR8 F/M, L1m (P/N 13051960) Extension cable CGR8 F/M, L3m (P/N 13052084) Extension cable CGR8 F/M, L7m...
  • Page 11: Cleaning And Maintenance

    Description of changes 13/01/2023 QR code added Specifications are subject to change without notice. January 13, 2023 Copyright © 2022-2023 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
